WX(M)-A Single Stage Centrifugal Pumps

Description

The WX(M)-A series are non self-priming, single-stage, centrifugal pumps. With open impellers and hard faced mechanical seals they can handle liquids that are moderately aggressive* and abrasive, so they suit food processing, washing and cleaning applications (which need the conveyance of resi...

TECHNICAL DATA

  • Outlet (BSPF): 2"
  • Inlet (BSPF): 2" - 2½"
  • Motor output (kW): 1.1 - 3
  • Max head (m): 10.5 - 18
  • Phases: 1 & 3
  • Max flow (I/min): 700 - 1400

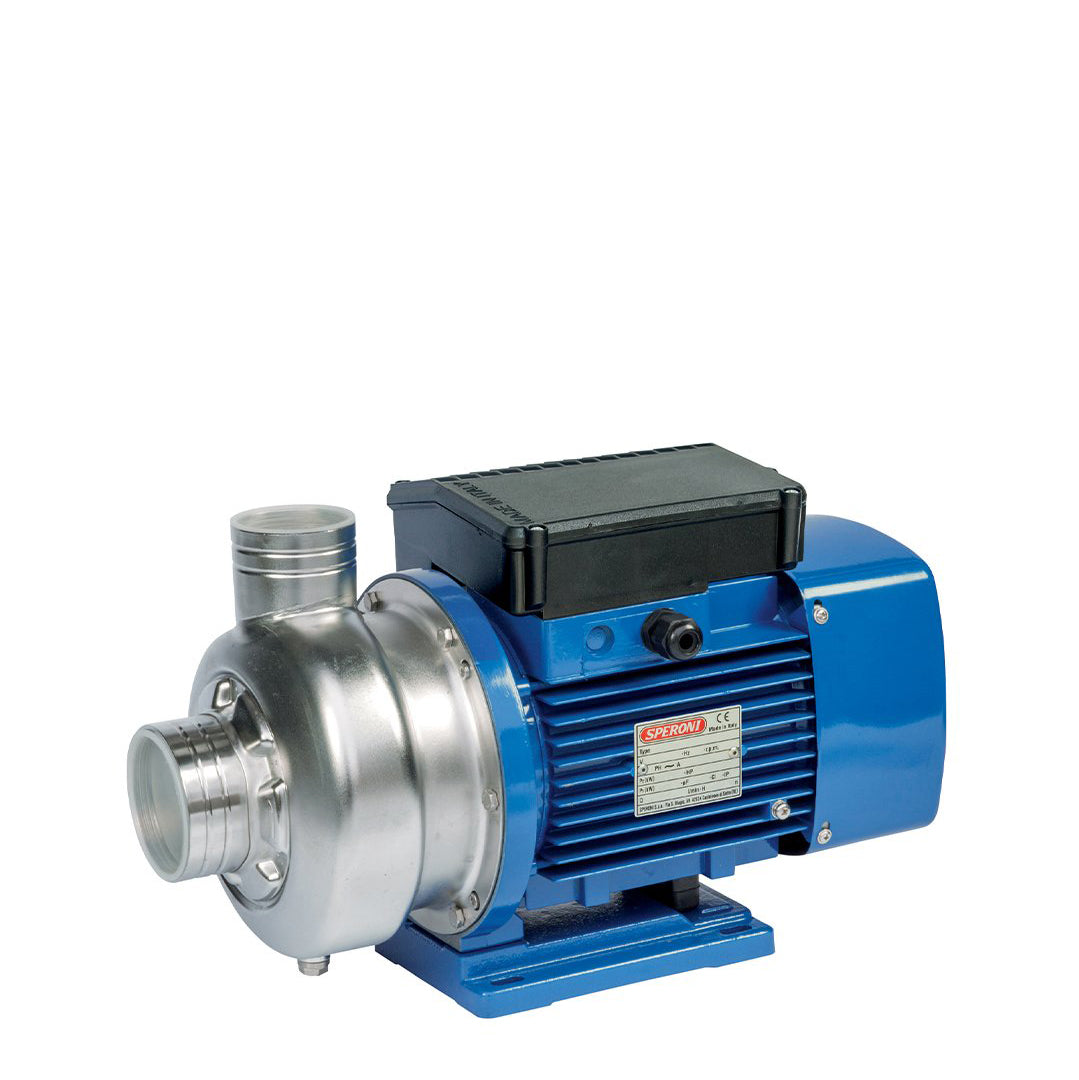

  • Speroni blue WX(M)-A Single Stage Centrifugal Pump

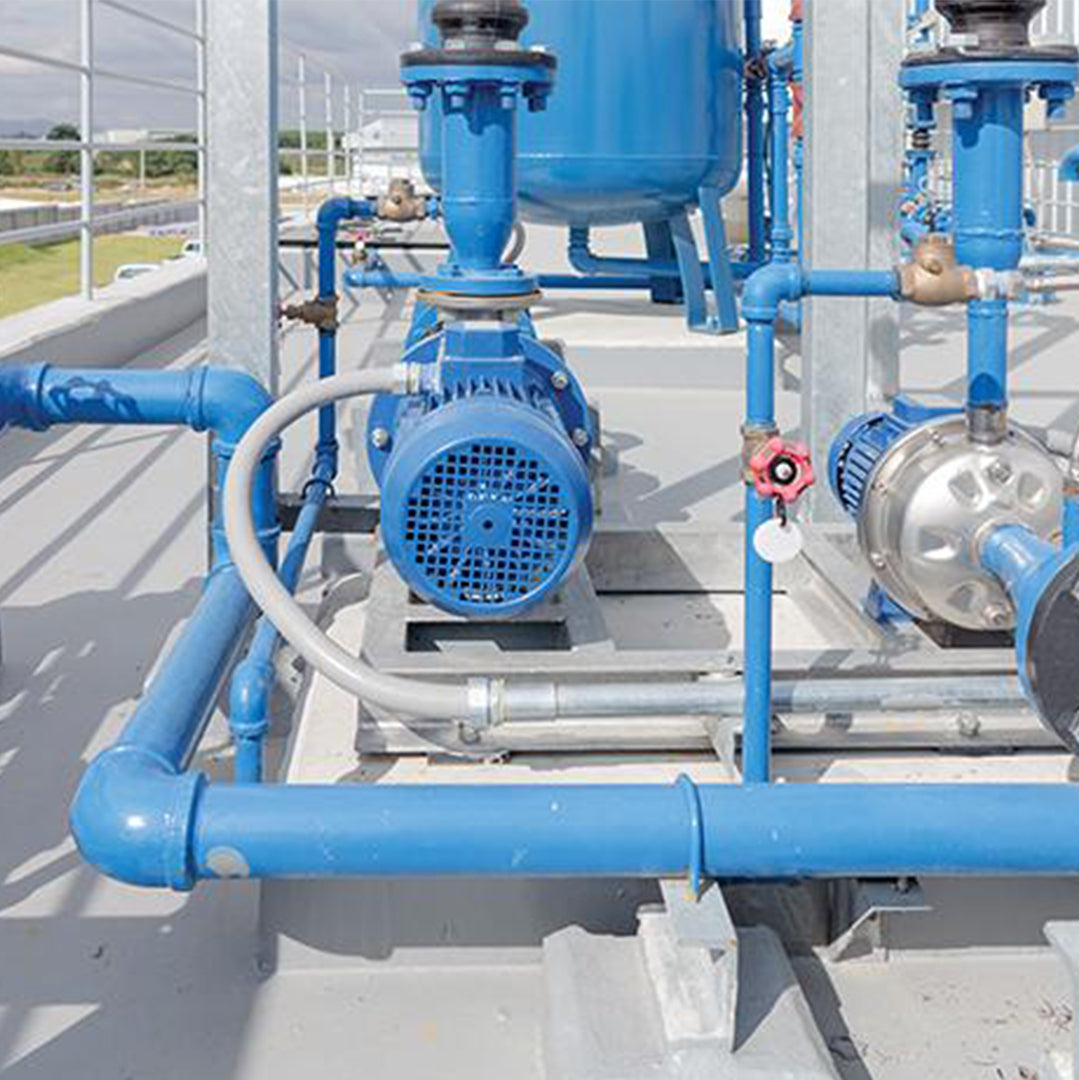

  • WX(M)-A Single Stage Centrifugal Pump- location shot, pump fitted to pipe system on fit

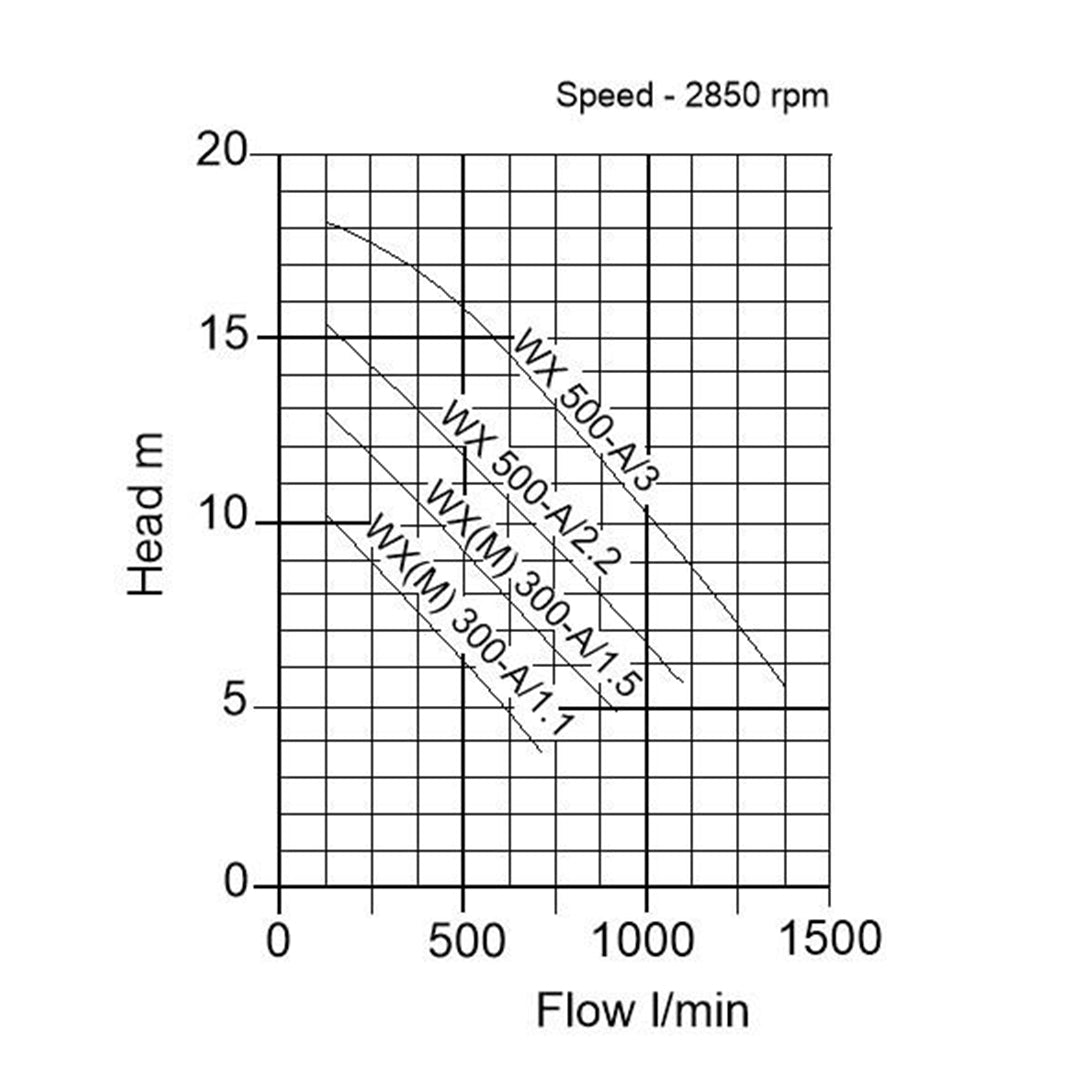

  • WX(M)-A Single Stage Centrifugal Pump- pump curve graph
1 3
£451.00 GBP
£451.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni blue WX(M)-A Single Stage Centrifugal Pump
  • WX(M)-A Single Stage Centrifugal Pump- location shot, pump fitted to pipe system on fit
  • WX(M)-A Single Stage Centrifugal Pump- pump curve graph
PERFORMANCE CURVE
SPECIFICATIONS

WX 300-A1.1

codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1049WX 300-A/1.1 2" BSPF1.140070010.52" BSPF19337826516

WX 500 A/3

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1022WX 500-A/3 - 400V2" BSPF34001400182½" BSPF19343224223

model

w X l X h (mm)

WX(M)300

193x378x265

WX 500-A/2.2

193x415x242

WX 500-A/3

193x432x242
