VS 4 Vertical Multistage Pumps

Description

The VS series are vertical multi-stage pumps with hard-faced mechanical seals and all components that are in contact with the liquid constructed in stainless steel. For the pumping of clean water only, they are designed for medium and large water supply applications often found in commercial, ...

TECHNICAL DATA

  • flange/BSP: DN32/1¼"
  • Motor output (kW): 0.55 - 4
  • Max head (m): 28 - 211
  • Phases: 1 & 3
  • Max flow (I/min): 133

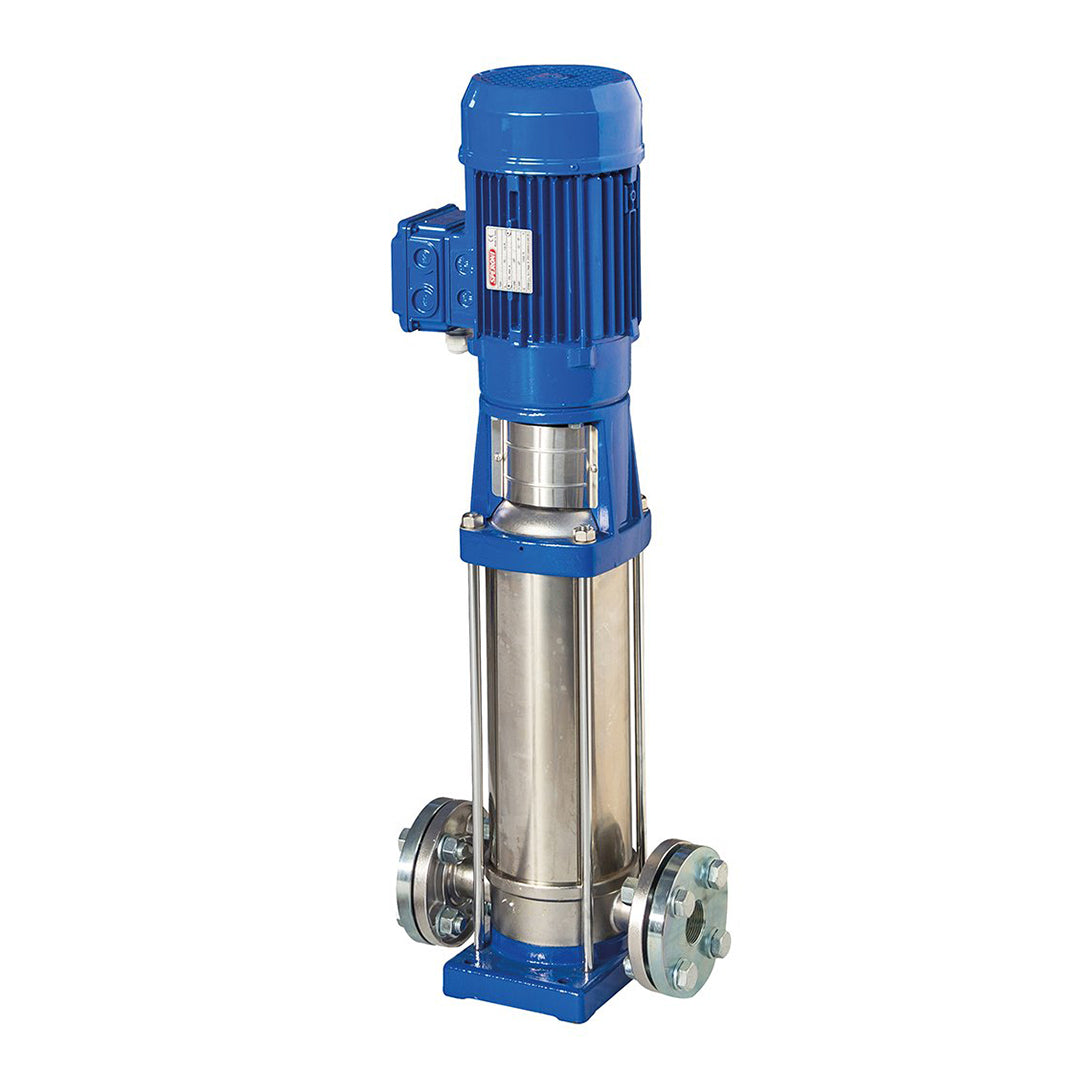

  • Speroni Blue VS4 Vertical Multistage Pump

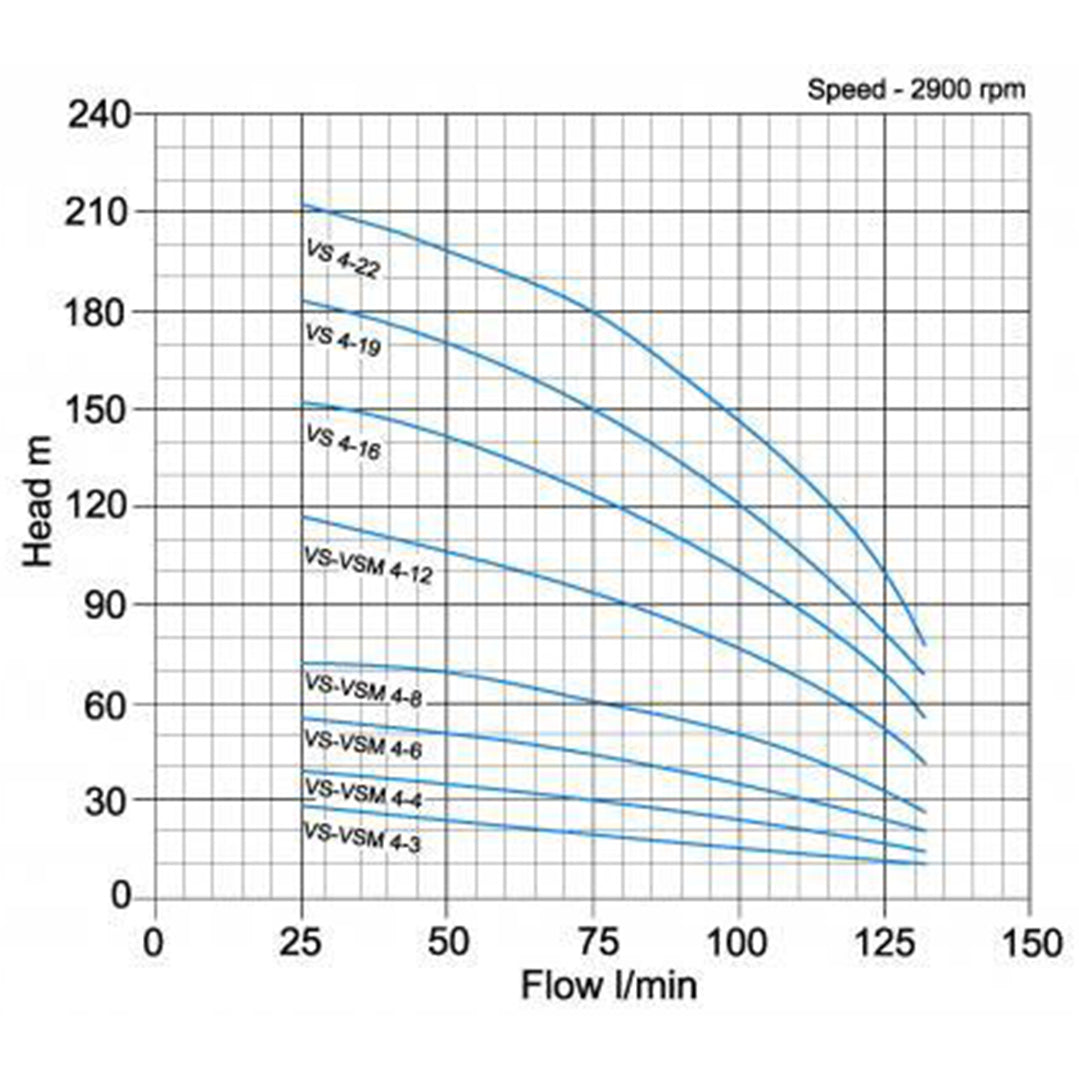

  • VS4 Vertical Multistage Pump - pump curve graph
1 2
£987.00 GBP
£987.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue VS4 Vertical Multistage Pump
  • VS4 Vertical Multistage Pump - pump curve graph
PERFORMANCE CURVE
SPECIFICATIONS

VSM4-3

Item codeModelkW

Volt   (V)

Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1019VSM4-30.552301332825021030351375148148

VS-4-3

Item codeModelkWVolt   (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1077VS4-30.554001332825021030351375148148

VSM4-4

Item codeModelkWVolt   (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1092VSM4-40.752301333825024534058575170142

VSM4-6 1.1

Item codeModelkWVolt   (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1031VSM4-6 1.11.12301335625024539463975170142

VSM4-8

Item codeModelkWVolt  (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2Packing weight
19-15-1050VSM4-81.5230133742502904587487519015551

VS4-8

Item codeModelkWVolt   (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1182VS4-81.54001337425029045874875190155

VSM4-12

Item codeModelkWVolt   (V) Flow (l/min)Head (metres)AB2B1B1 + B2HD1D2
19-15-1288VSM4-122.223013311425029056685675190155

model

w X l X h (mm)

VS(M)4-3

210x250x513

VS(M)4-4

210x250x585

VS(M)4-6

210x250x639

VS(M)4-8

210x250x748

VS(M)4-12

210x250x856

VS4-16

210x250x999

VS4-19

210x250x1100

VS4-22

210x250x1181
