VS 20 Vertical Multistage Pumps

Description

The VS series are vertical multi-stage pumps with hard-faced mechanical seals and all components that are in contact with the liquid constructed in stainless steel. For the pumping of clean water only, they are designed for medium and large water supply applications often found in commercial, mu...

TECHNICAL DATA

  • flange/BSP: DN50/2"
  • Motor output (kW): 4 - 15
  • Max head (m): 41 - 192
  • Phases: 3
  • Max flow (I/min): 466

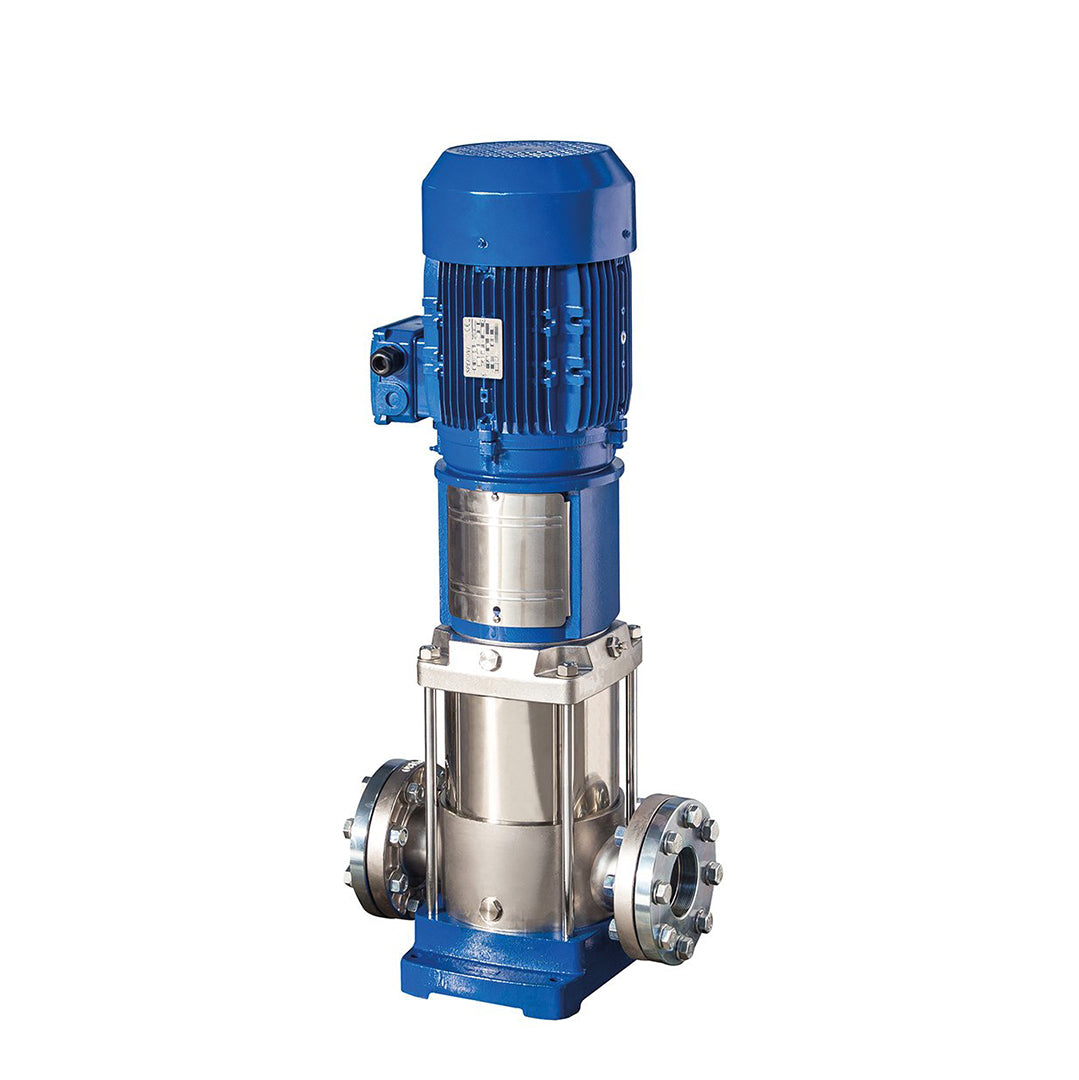

  • Speroni Blue VS 20 Vertical Multistage Pumps

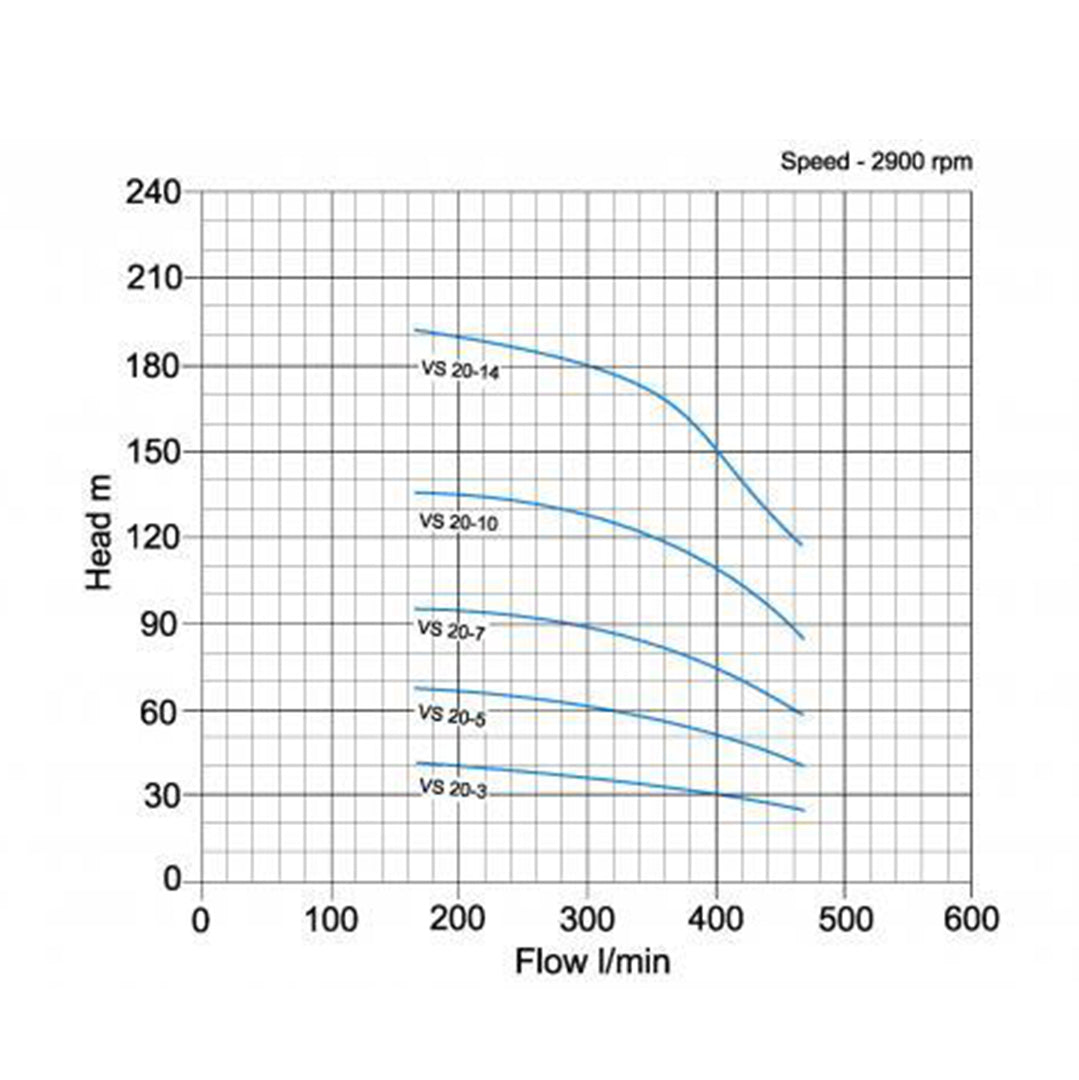

  • VS 20 Vertical Multistage Pump - pump curve graph
1 2
£2,108.00 GBP
£2,108.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue VS 20 Vertical Multistage Pumps
  • VS 20 Vertical Multistage Pump - pump curve graph
PERFORMANCE CURVE
SPECIFICATIONS

VS20-5

Item code

Model

kW

Volt (V)

Flow (l/min)

Head (metres)

A

H

B1

B2

B1 + B2

D1

D2

19-15-1194

VS20-5

5.5

400

466

67

300

90

562

430

992

260

208

VS20-7

Item code

Model

kW

Volt (V)

Flow (l/min)

Head (metres)

A

H

B1

B2

B1 + B2

D1

D2

19-15-1045

VS20-7

7.5

400

466

95

300

90

652

430

1082

260

208

model

w X l X h (mm)

VS20-3

247x300x787

VS20-5

247x300x992

VS20-7

247x300x1082

VS20-10

247x300x1365

VS20-14

247x300x1545
