Description

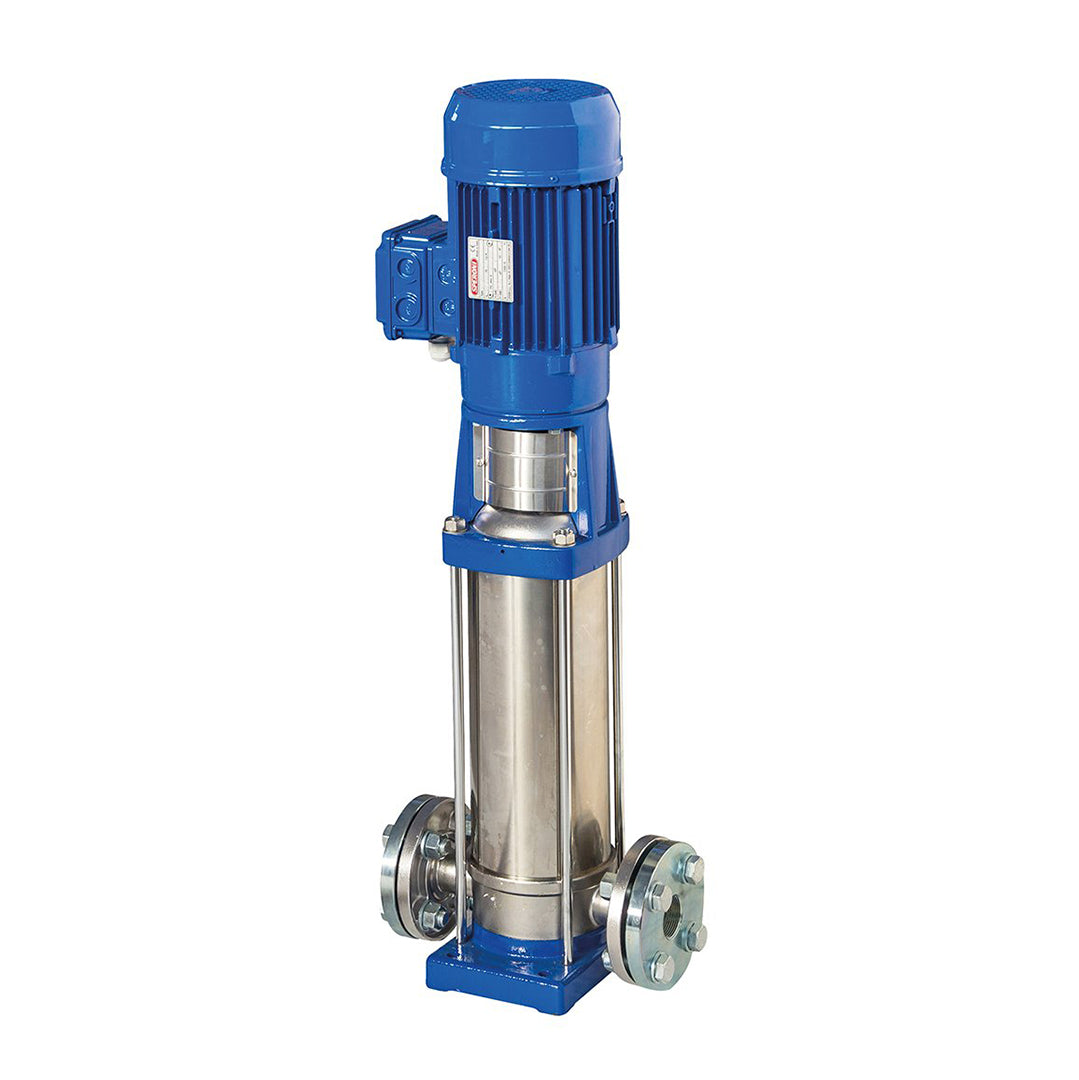

The VS series are vertical multi-stage pumps with hard-faced mechanical seals and all components that are in contact with the liquid constructed in stainless steel. For the pumping of clean water only, they are designed for medium and large water supply applications often found in commercial, ...

TECHNICAL DATA

flange/BSP: DN25/1¼"
Motor output (kW): 0.55 - 3
Max head (m): 36 - 232
Phases: 1 & 3
Max flow (I/min): 56

1 2

£707.00 GBP

£707.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

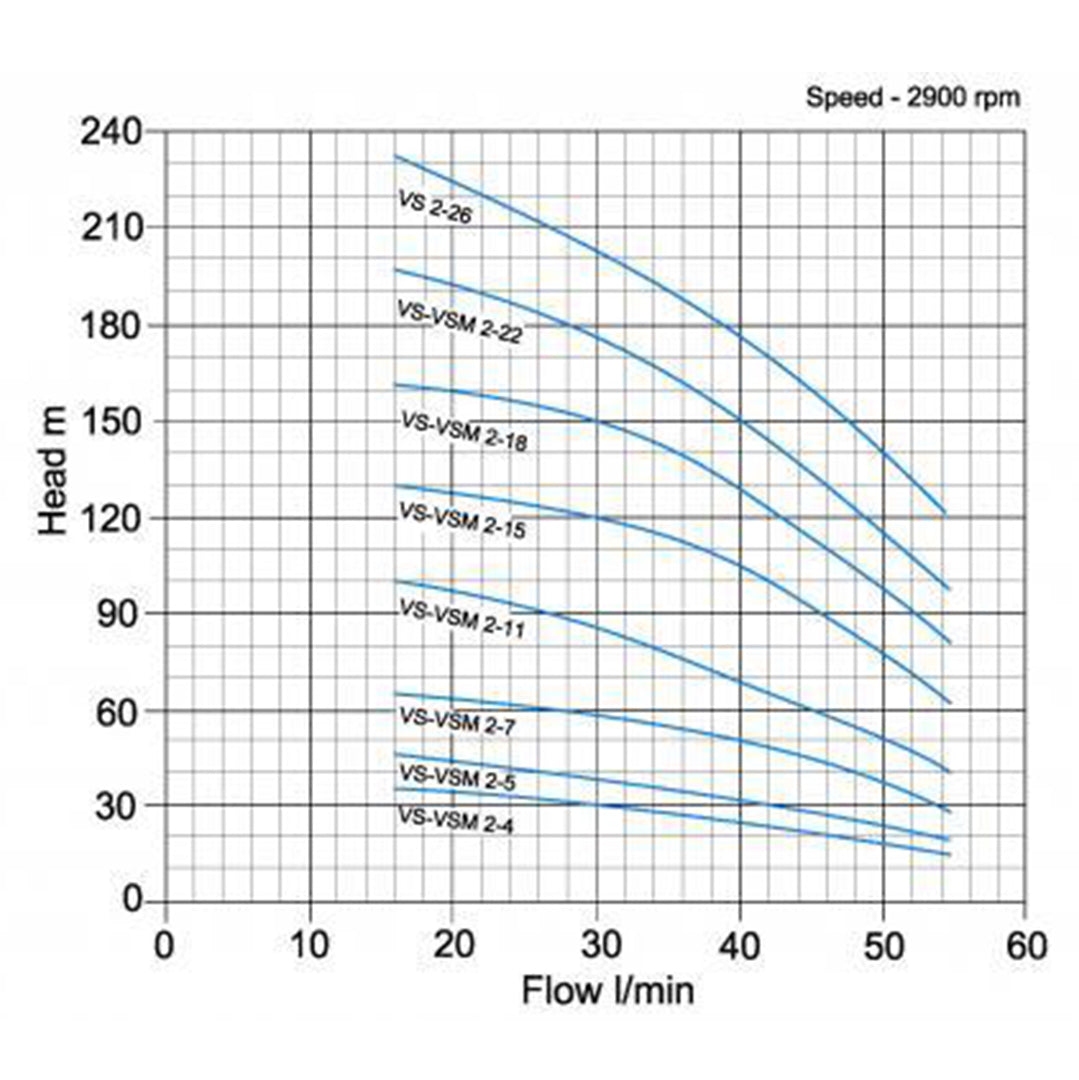

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue

VS Catalogue Page

Tsurumi Catalogue 2024 - Page 128

VSM2-4

Item code	Model	kW	Volt (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1291	VSM2-4	0.55	230	56	36	250	75	294	210	504	148	117

VSM2-4 Data Sheet

VS2-4

Item code	Model	kW	Volt (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1206	VS2-4	0.55	400	56	36	250	75	294	210	504	148	117

VSM2-5

Item code	Model	kW	Volt (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1126	VSM2-5	0.55	230	56	45	250	75	312	210	522	148	117

VSM2-5 Data Sheet

VS2-5

Item code	Item code	Model	kW	Volt (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1119	19-15-	VS2-5	0.55	400	56	45	250	75	312	210	522	148	117

VSM2-7

Item code	Model	kW	Volt (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1177	VSM2-7	0.75	230	56	63	250	75	358	245	603	170	142

VSM2-7 Data Sheet

VS2-7

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1273	VS2-7	0.75	400	56	63	250	75	358	245	603	170	142

VSM2-11

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1270	VSM2-11	1.1	230	56	9841	250	75	430	245	675	170	142

VSM2-11 Data Sheet

VS2-11

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1067	VS2-11	1.1	400	56	98	250	75	430	245	675	170	142

VS2-11 Data Sheet

VSM2-15

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1159	VSM2-15	1.5	230	56	134	250	75	512	290	802	190	155

VSM2-15 Data Sheet

VS2-15

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1292	VS2-15	1.5	400	56	134	250	75	512	290	802	190	155

VSM2-18

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1010	VSM2-18	2.2	230	56	161	250	75	566	290	856	190	155

VSM2-18 Data Sheet

VS2-18

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1007	VS2-18	2.2	400	56	161	250	75	566	290	856	190	155

VSM2-22

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1190	VSM2-22	2.22	230	56	197	250	75	638	290	928	190	155

VSM2-22 Data Sheet

VS2-22

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1274	VS2-22	2.2	400	56	197	250	75	638	290	928	190	155

VS2-26

Item code	Model	kW	Volts (V)	Flow (l/min)	Head (metres)	A	H	B1	B2	B1 + B2	D1	D2
19-15-1232	VS2-26	3	400	56	232	250	75	720	315	1035	197	165

model

w X l X h (mm)

VS(M)2-4

210x250x504

VS2(M)-5

210x250x522

VS(M)2-7

210x250x603

VS(M)2-11

210x250x675

VS(M)2-15

210x250x802

VS(M)2-18

210x250x856

VS(M)2-22

210x250x928

VS2-26

210x250x1035
