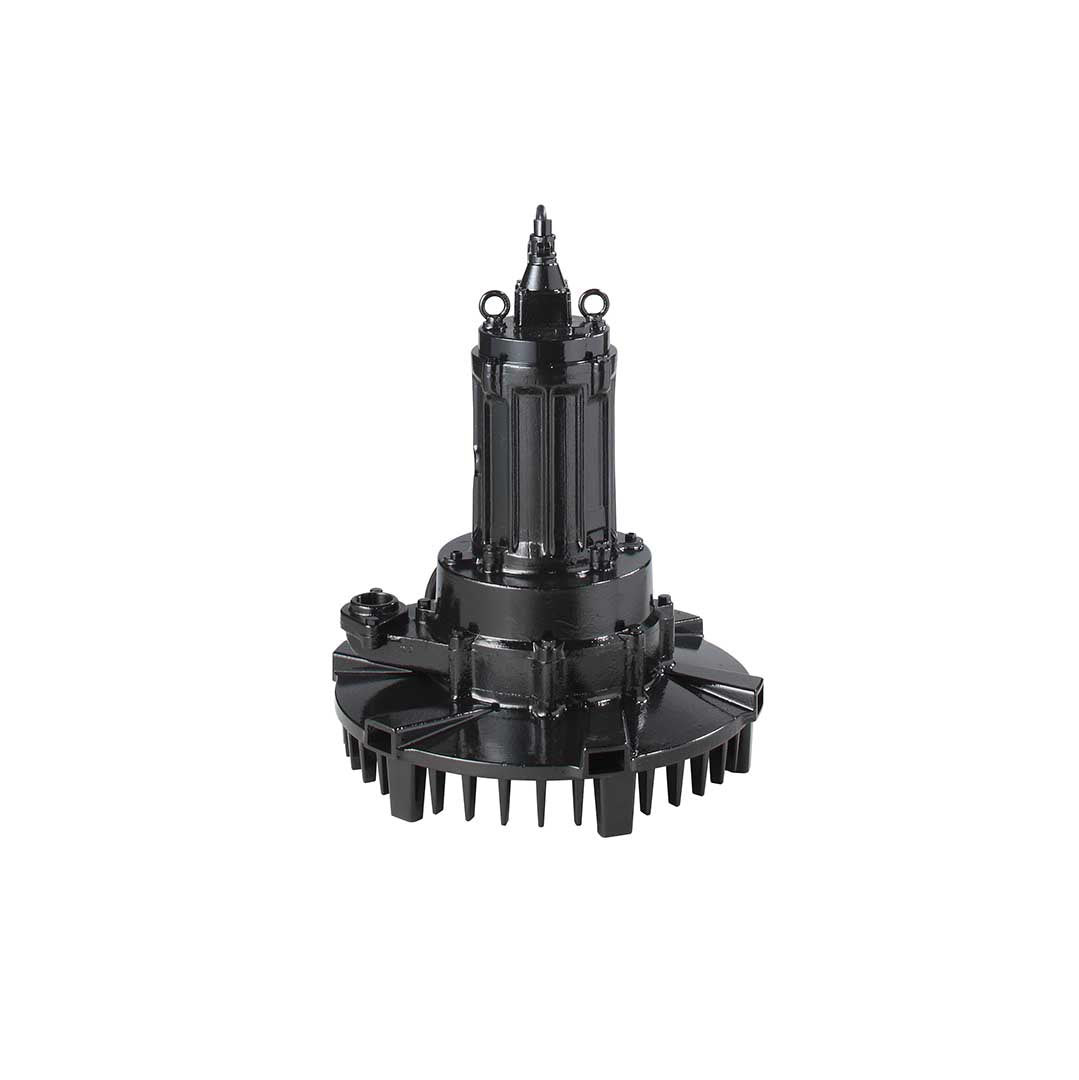

TRN-FL Submersible Aerator

Description

TRN-FL are hydraulically modified versions of the TRN series which enable the air-valve to be closed almost completely. In this position, the diameter of the generated air-bubbles is drastically reduced which increases the efficiency of removing particles like fat, fibers and other impurificatio...

TECHNICAL DATA

  • Air inlet bore (mm): 32 - 50
  • Motor output (kW): 0.75 - 3.7
  • Max water depth (m): 3.5 - 4
  • Phases: 3
  • Air flow rate @ max water depth (m³/h): 7/8 - 55/60
  • Main convection dia (mtr): 1.4 - 3
1 1
£2,713.00 GBP
£2,713.00 GBP
Sale Sold out
Excluding VAT
View full details
SPECIFICATIONS

TRN-FL

 item code

model

air-inlet bore (mm)

kW

volt

max water depth (mtrs)

air flow rate @ max water depth (m³/h)

main convection dia (mtr)

sub convection

outlets

(qty)

free

passage (mm)

dia x h (mm)

dry weight (kgs)

circular tank

(dia - mtr)

square tank (mtr)

10-10-1332

32TRN2.75FL

32

0.75

400

3.5

7/8

1.4

3.5

3

6

10

420 x 473

55

10-10-1334

32TRN21.5FL

32

1.5

400

3.5

20/17

1.8

4.5

4

6

12

420 x 473

55

10-10-1336

50TRN42.2FL

50

2.2

400

3.6

39/38

2.4

6

5.5

6

12

700 x 689

140

10-10-1338

50TRN43.7FL

50

3.7

400

4

55/60

3

7

6.5

6

12

700 x 694

150

model

w X l X h (mm)

32TRN

420x473

50TRN42.2

700x689

50TRN43.7

700x694
