TP Fish Pond and Water Features Pumps

Description

The TP series are designed for continuous operation in water features and fish-ponds, but also for sump and transfer applications. Available as manual or with a pendant float switch, for automatic operation. All models are lubricated and cooled by non-toxic oil. Available in two formats: TPS w...

TECHNICAL DATA

  • Outlet (mm): 32
  • Motor output (kW): 0.2
  • Max head (m): 7
  • Phases: 1
  • Max flow (I/min): 140
  • Free passage (mm): 5 - 19

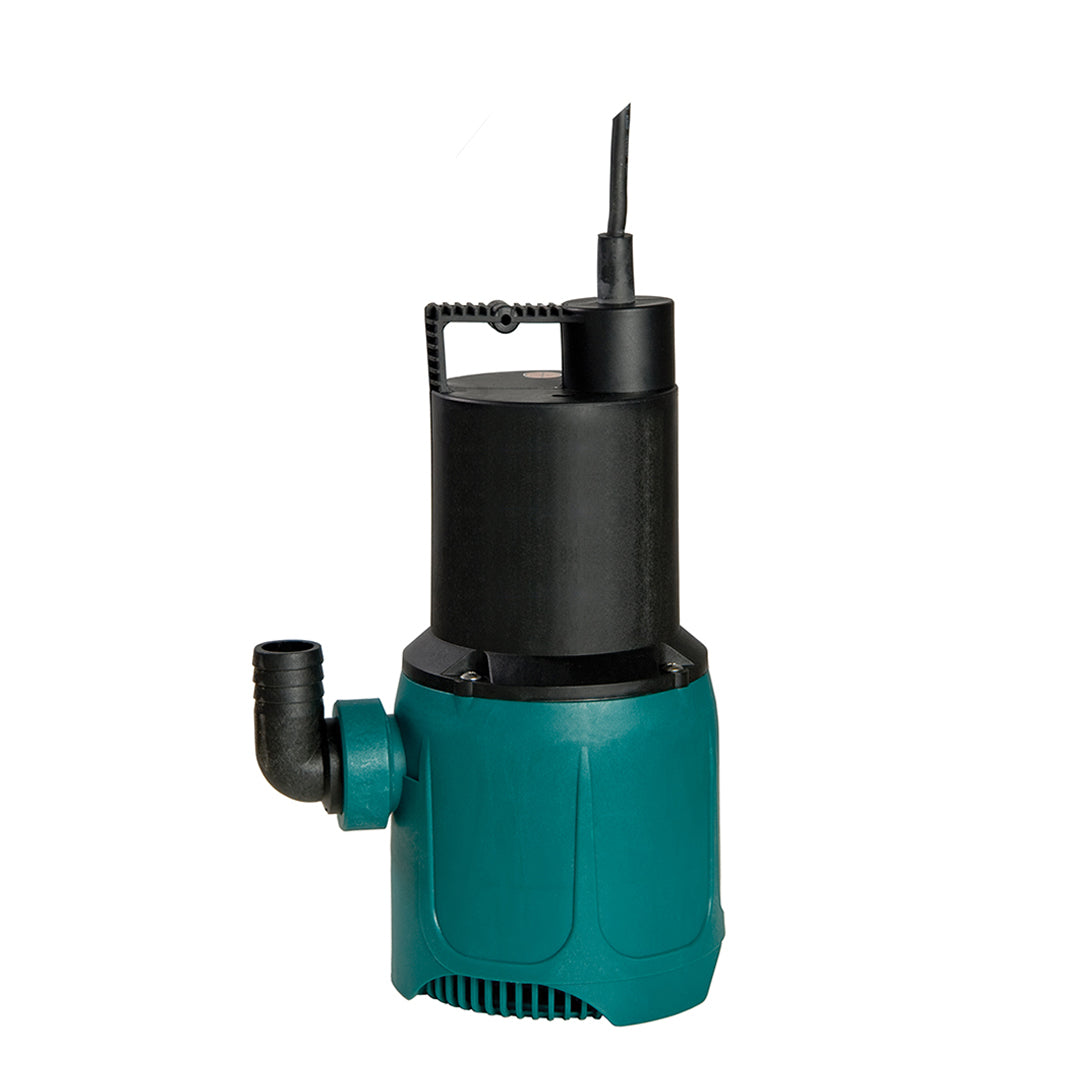

  • TP2S200S APP Fish Pond and Water Features Pump

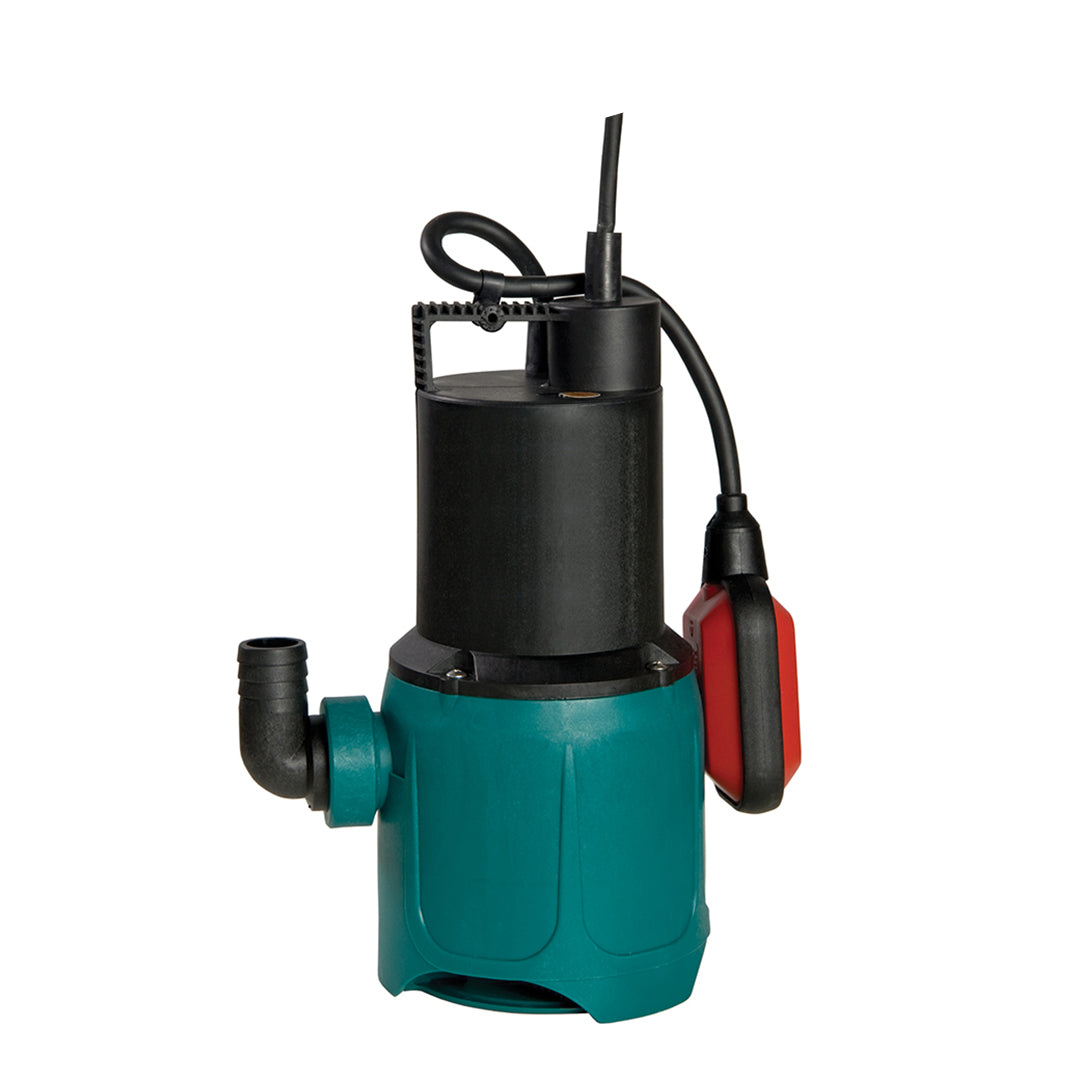

  • TPV200SA APP Fish Pond and Water Features Pump

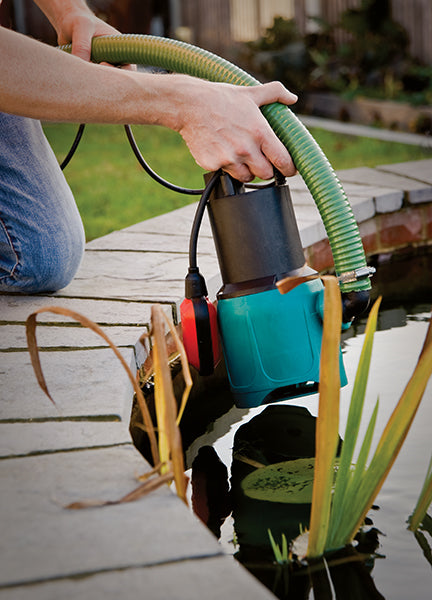

  • TP Fish Pond and Water Features Pump- location shot of pump being placed into a garden pond
  • TP Fish Pond and Water Features Pumps - pump curve graph
1 4
£143.00 GBP
£143.00 GBP
Sale Sold out
Excluding VAT
View full details
  • TP2S200S APP Fish Pond and Water Features Pump
  • TPV200SA APP Fish Pond and Water Features Pump
  • TP Fish Pond and Water Features Pump- location shot of pump being placed into a garden pond
  • TP Fish Pond and Water Features Pumps - pump curve graph

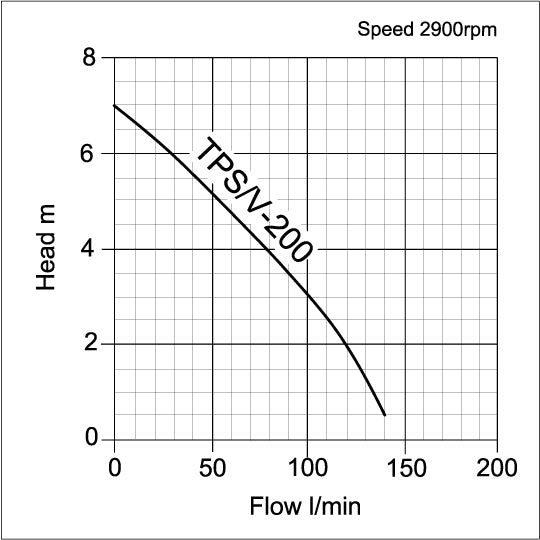

PERFORMANCE CURVE
SPECIFICATIONS

TP

item code

model

Manual or Auto

outlet (mm)

kW

volt

flow

(l/min)

head (mtrs)

free passage (mm)

w x l x h (mm)

on level * (mm)

off level * (mm)

dry weight (kgs)

15-10-1091

TPS-200S

M

32

0.2

230

140

7

5

146x170x330

-

-

3.9

15-10-1009

TPS-200SA

A

32

0.2

230

140

7

5

146x170x330

430

190

4.1

15-10-1092

TPV-200S

M

32

0.2

230

140

7

19

146x170x330

-

-

3.9

15-10-1086

TPV-200SA

A

32

0.2

230

140

7

19

146x170x330

430

190

4.1

*Approximate Liquid Level

model

w X l X h (mm)

TP

146x170x330
