TED Heavy Duty Trash Pumps

Description

TED are powered by Honda 4-stroke, recoil start, petrol engines. They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. All models have easy-carry frames, rubber feet (for engine noise and vibration ab...

TECHNICAL DATA

  • Outlet (mm): 50 - 100
  • Inlet (mm): 50 - 100
  • Engine: GX160, GX240 & GX340
  • Max head (m): 23 - 30
  • Fuel: Petrol
  • Max flow (I/min): 800 - 2000
  • Solids (mm): 25 - 35
Skip to product information
1 of 4
Regular price £1,143.00 GBP
Regular price Sale price £1,143.00 GBP
Sale Sold out
Excluding VAT
View full details

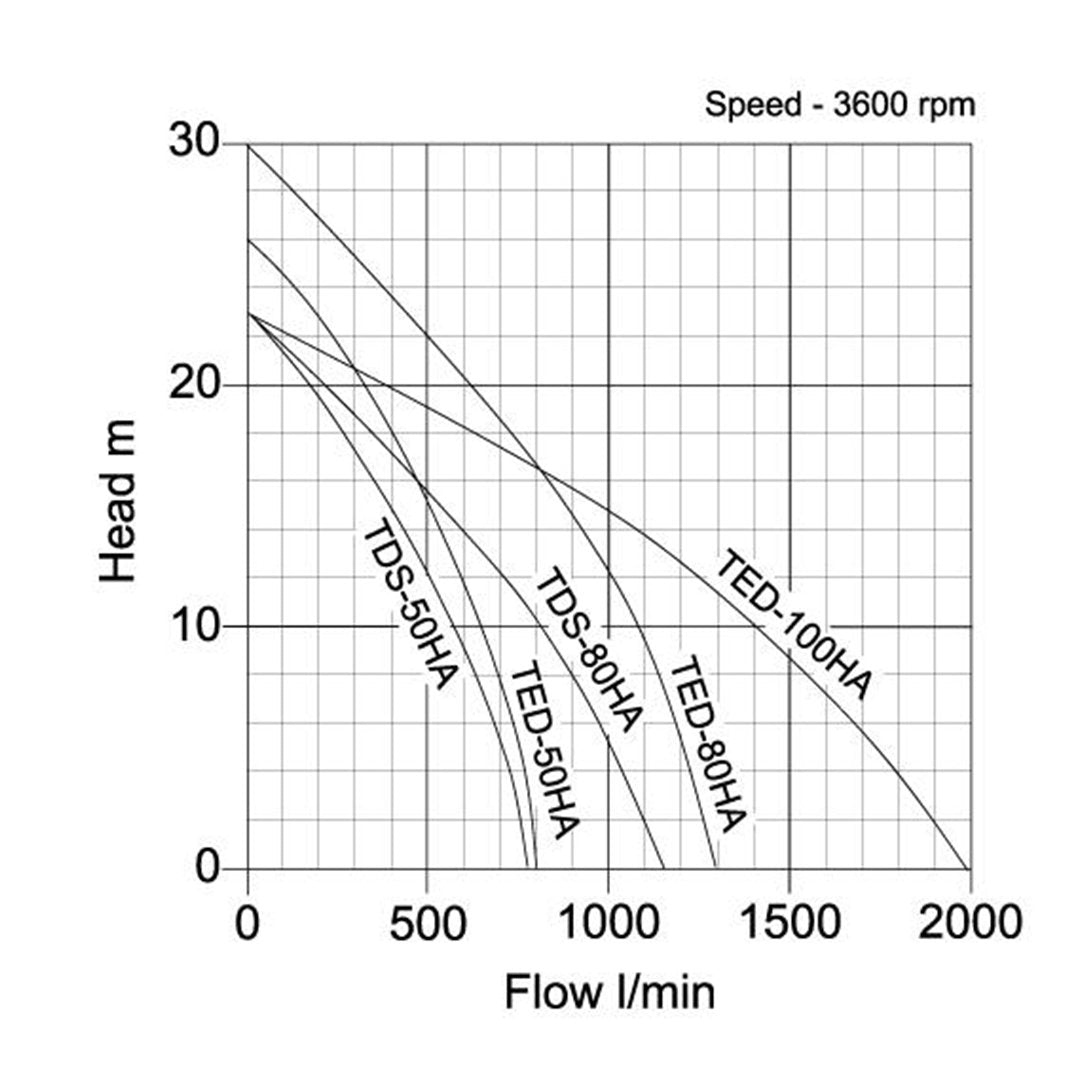

PERFORMANCE CURVE
SPECIFICATIONS

TED2-50HA

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (mtrs)Solids (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
18-20-1009TED2-50HA5050GX160Petrol5.5Yes800262543057040033

TED2-80HA

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertHead (mtrs)Solids (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
18-20-1003TED2- 80HA8080GX240Petrol 8Yes303548567061059

TED2-100HA

Item Code

Model

Inlet (mm)

Outlet (mm)

Engine

Fuel

HP

Oil Alert

Flow (l/min)

Head (metres)

Solids (mm)

Width (mm)

Length (mm)

Height (mm)

Dry weight (kg)

18-20-1014

TED2-100HA

100

100

GX340

Petrol

10

Yes

2000

23

35

480

725

610

69

model

w X l X h (mm)

TED2-50HA

430x570x400

TED2-80HA

485x670x610

TED2-100HA

480x725x610
