TDS Semi Trash Pumps

Description

TDS are self-priming, centrifugal semi-trash pumps, with tool access pump casing, manufactured by Tsurumi and powered by Honda 4-stroke, recoil start, petrol engines. They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil,...

TECHNICAL DATA

  • Outlet (mm): 50 -75
  • Inlet (mm): 50 -75
  • Engine: GX120 & GX160
  • Max head (m): 23
  • Fuel: Petrol
  • Max flow (I/min): 780 - 1150
  • Solids (mm): 20

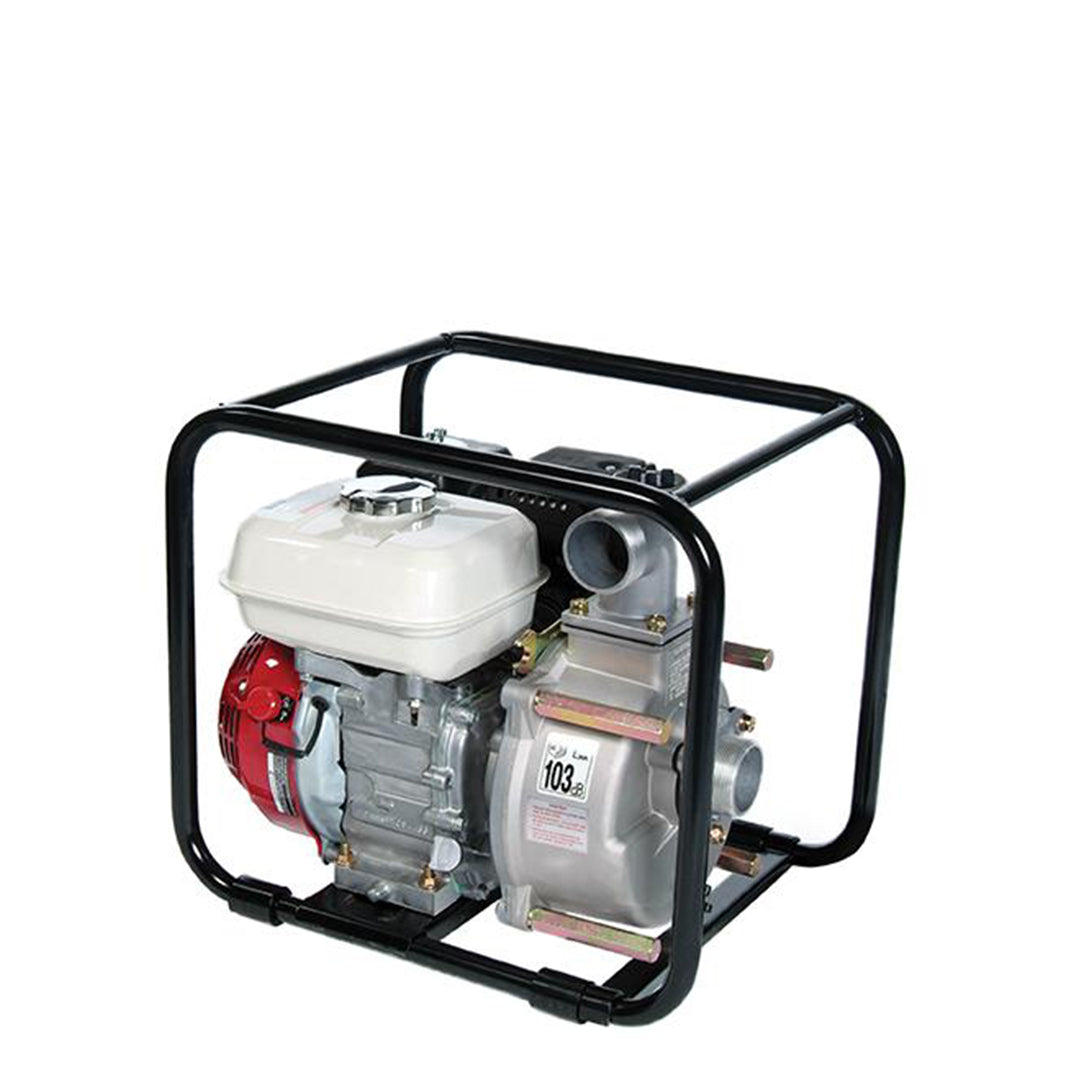

  • TDS50HA Tsurumi Semi Trash Pump- pump housed within protective tubular steel frame

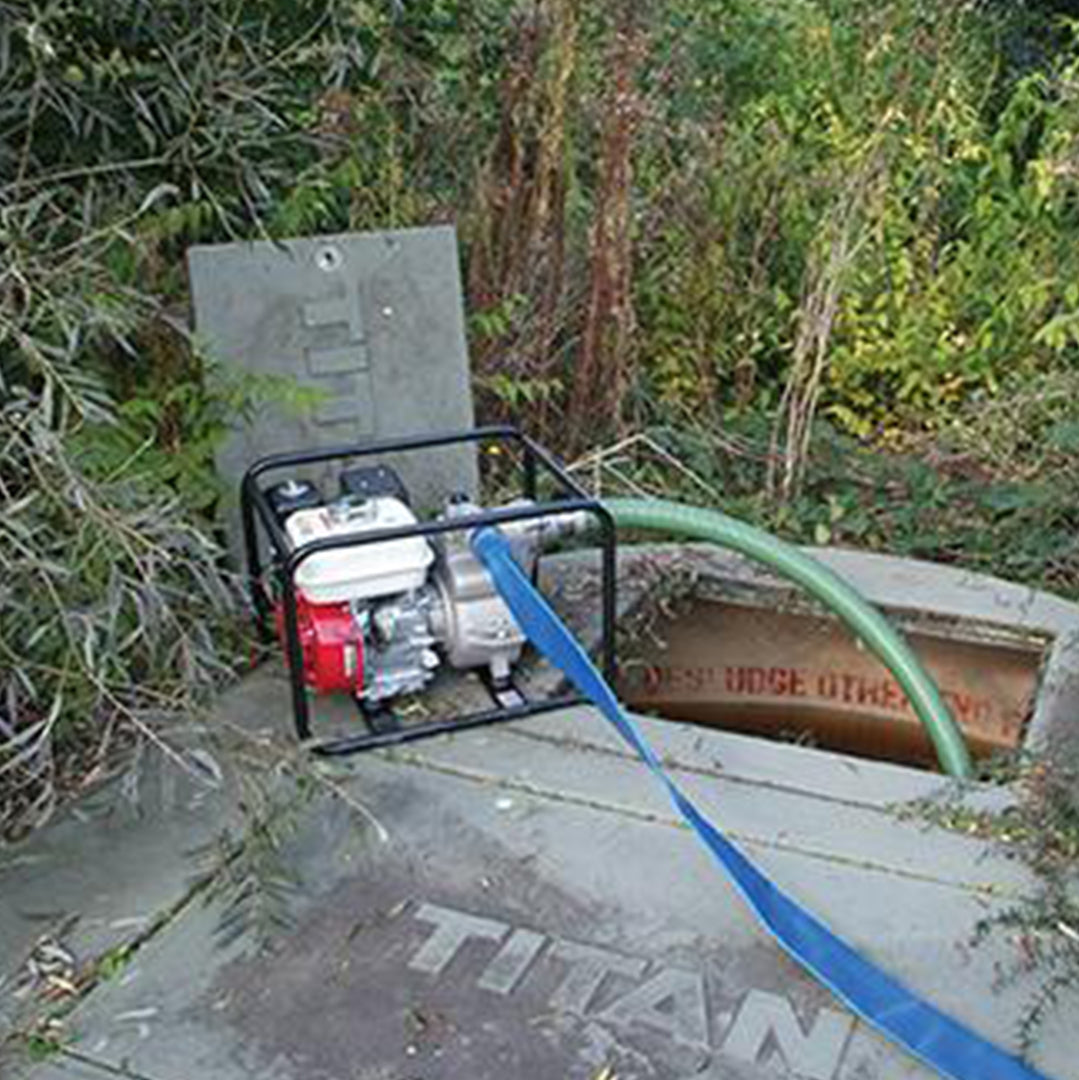

  • TDS50HA Tsurumi Semi Trash Pump- location shot, pump removing waste from underground with hose attachment
  • TDS Semi Trash Pump- pump curve 1
1 3
£556.00 GBP
£556.00 GBP
Sale Sold out
Excluding VAT
View full details
  • TDS50HA Tsurumi Semi Trash Pump- pump housed within protective tubular steel frame
  • TDS50HA Tsurumi Semi Trash Pump- location shot, pump removing waste from underground with hose attachment
  • TDS Semi Trash Pump- pump curve 1

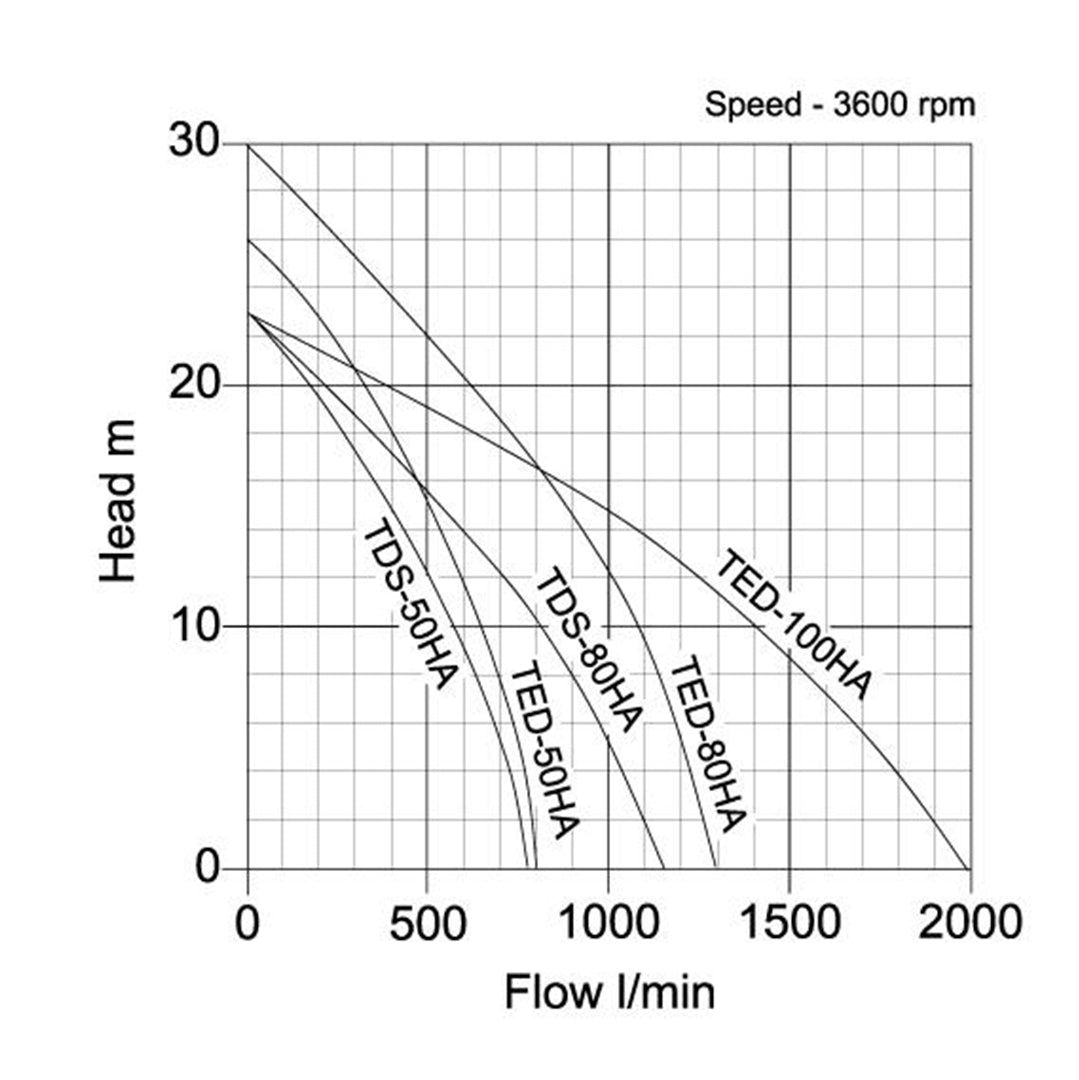

PERFORMANCE CURVE
SPECIFICATIONS

TDS-50HA

Item Code

Model

Inlet (mm)

Outlet (mm)

Engine

Fuel

HP

Oil Alert

Flow (l/min)

Head (metres)

Solids (mm)

Width (mm)

Length (mm)

Height (mm)

Dry weight (kg)

18-20-1019

TDS-50HA

50

50

GX120

Petrol Engine

4

Yes

780

23

20

345

470

420

24

TDS-80HA

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (metres)Solids (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
18-20-1005TDS-80HA8080GX160Petrol Engine5.5Yes1150232037052542027

model

w X l X h (mm)

TDS-50HA

345x470x420

TDS-80HA

370x525x420
