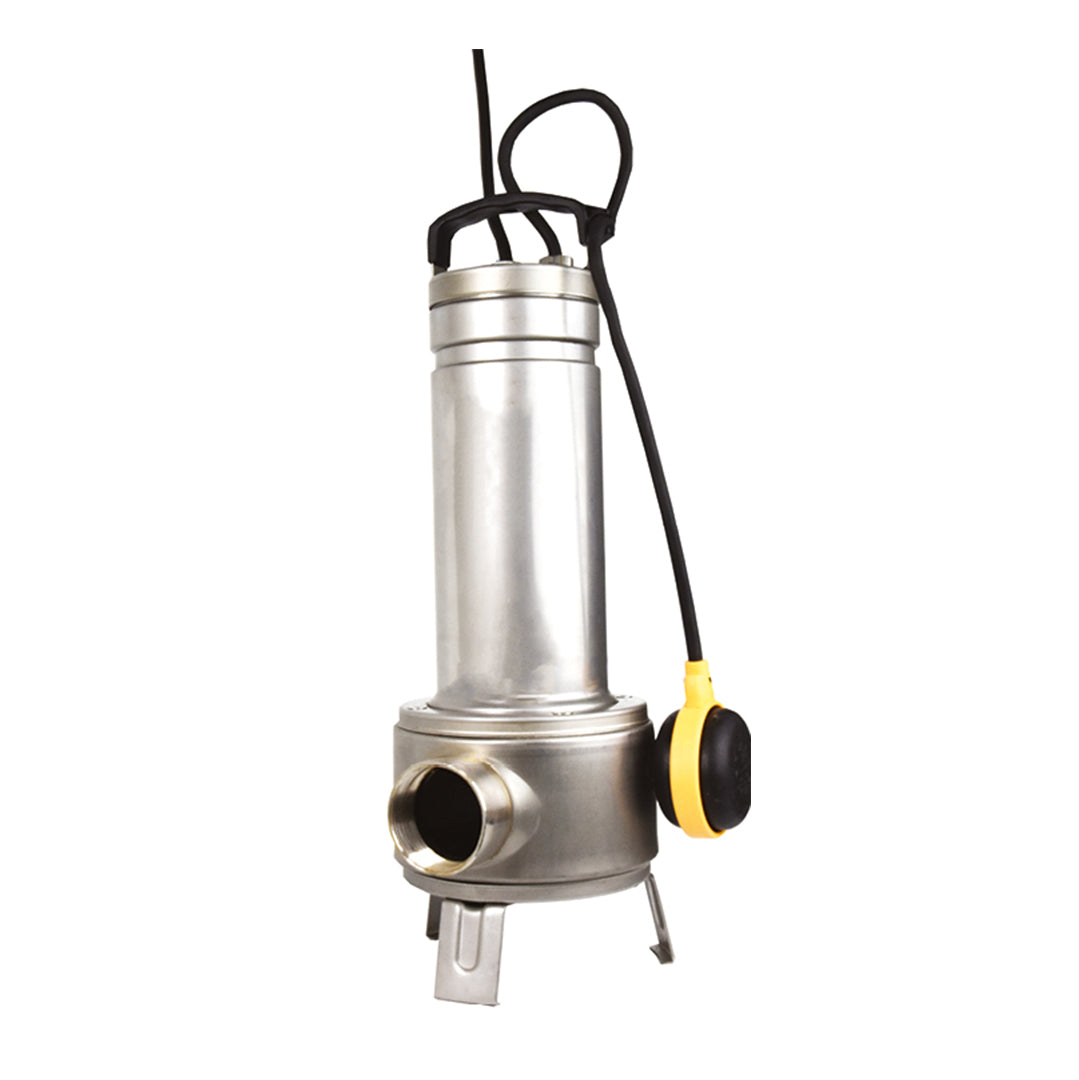

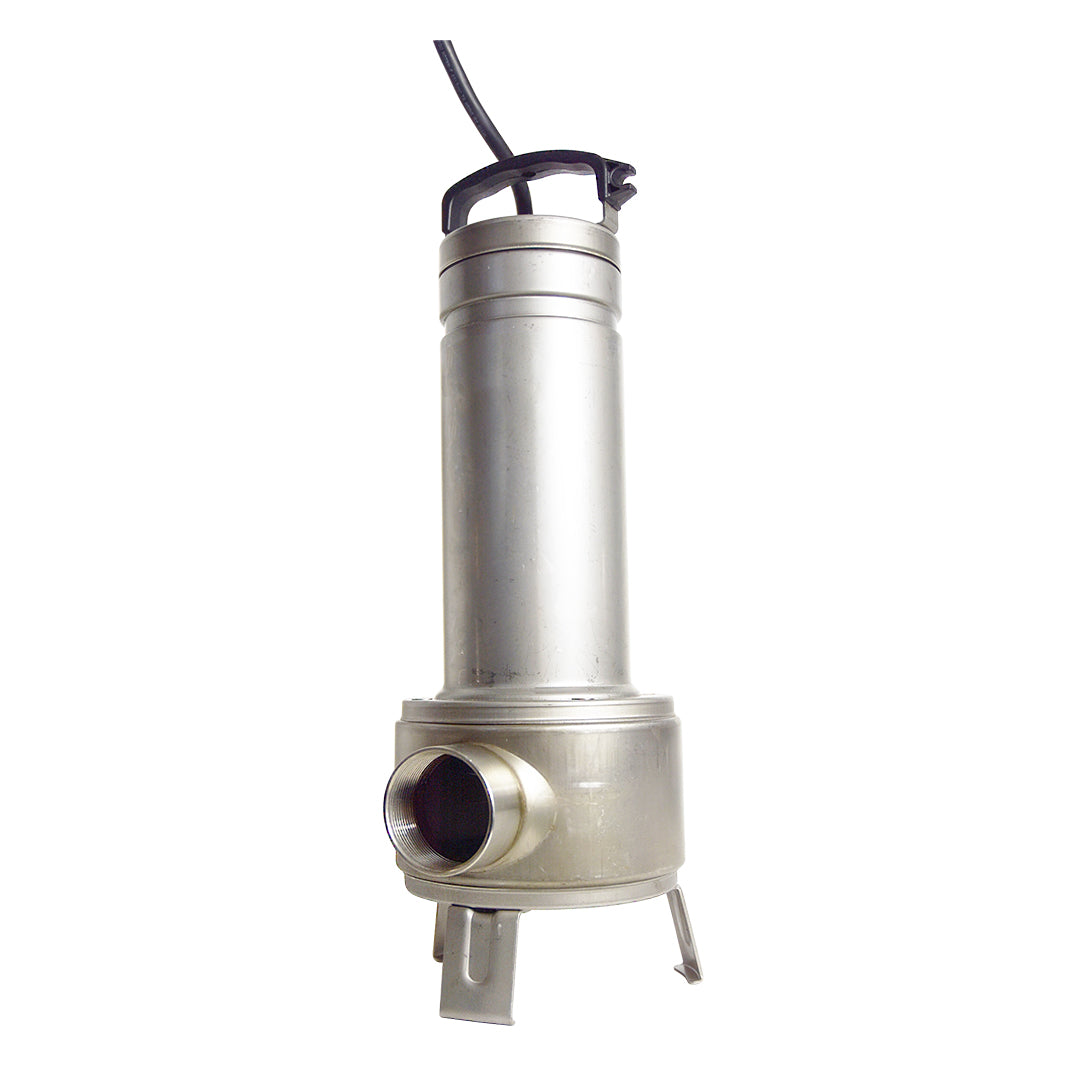

SXS Industrial Submersible Pumps

Description

SXS pumps, in 304 stainless steel and NBR, have a horizontal outlet and a wide pump casing for pumping waste containing fibrous material and suspended soft solids. With a removable stand, female BSP outlet and large free passage these pumps are suitable for drainage and sewage applications. Th...

TECHNICAL DATA

  • Outlet (BSPF): 2"
  • Motor output (kW): 0.75 - 1.5
  • Max head (m): 9 - 12.5
  • Phases: 1 & 3
  • Max flow (I/min): 350 - 550
  • Free passage (mm): 50
  • SXS200 Speroni - SXS Industrial Submersible Pump
  • SXS1000A (Automatic) Speroni - SXS Industrial Submersible Pump
  • SXS Industrial Submersible pump- Pump Curve
1 3
£521.00 GBP
£521.00 GBP
Sale Sold out
Excluding VAT
View full details
  • SXS200 Speroni - SXS Industrial Submersible Pump
  • SXS1000A (Automatic) Speroni - SXS Industrial Submersible Pump
  • SXS Industrial Submersible pump- Pump Curve

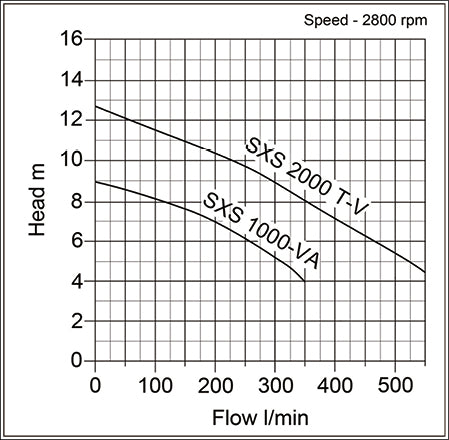

PERFORMANCE CURVE
SPECIFICATIONS

SXS1000VA

item code model Manual or Auto outlet (BSPF) kW volt flow l/minhead (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
19-10-1003 SXS 1000-VA A 2” 0.75 230 350 9 50 165x198x486 550 230 10.9

*Approximate liquid level

SXS2000TV

item code model Manual or Auto outlet (BSPF) kW volt flow l/minhead (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
19-10-1001 SXS 2000 T-V M 2” 1.5 400 550 12.5 50 165x198x486 - - 12.6

*Approximate liquid level

model

w X l X h (mm)

SXS

165x198x486
