SV Portable Submersible Pumps

Description

The SV series have vortex impellers and large pump casings for pumping light effluent, sewage and waste containing fibrous material, submerged debris and solids. Due to impeller material, SV-150(A/V) and SV-250(A/V) are suited to pumping soft and floating solids, but the SV-400(A) and SV-750(A...

TECHNICAL DATA

  • Outlet (mm): 32 -75
  • Motor output (kW): 0.15 - 0.75
  • Max head (m): 5.7 - 11
  • Phases: 1
  • Max flow (I/min): 170 - 420
  • Free passage (mm): 27 - 37

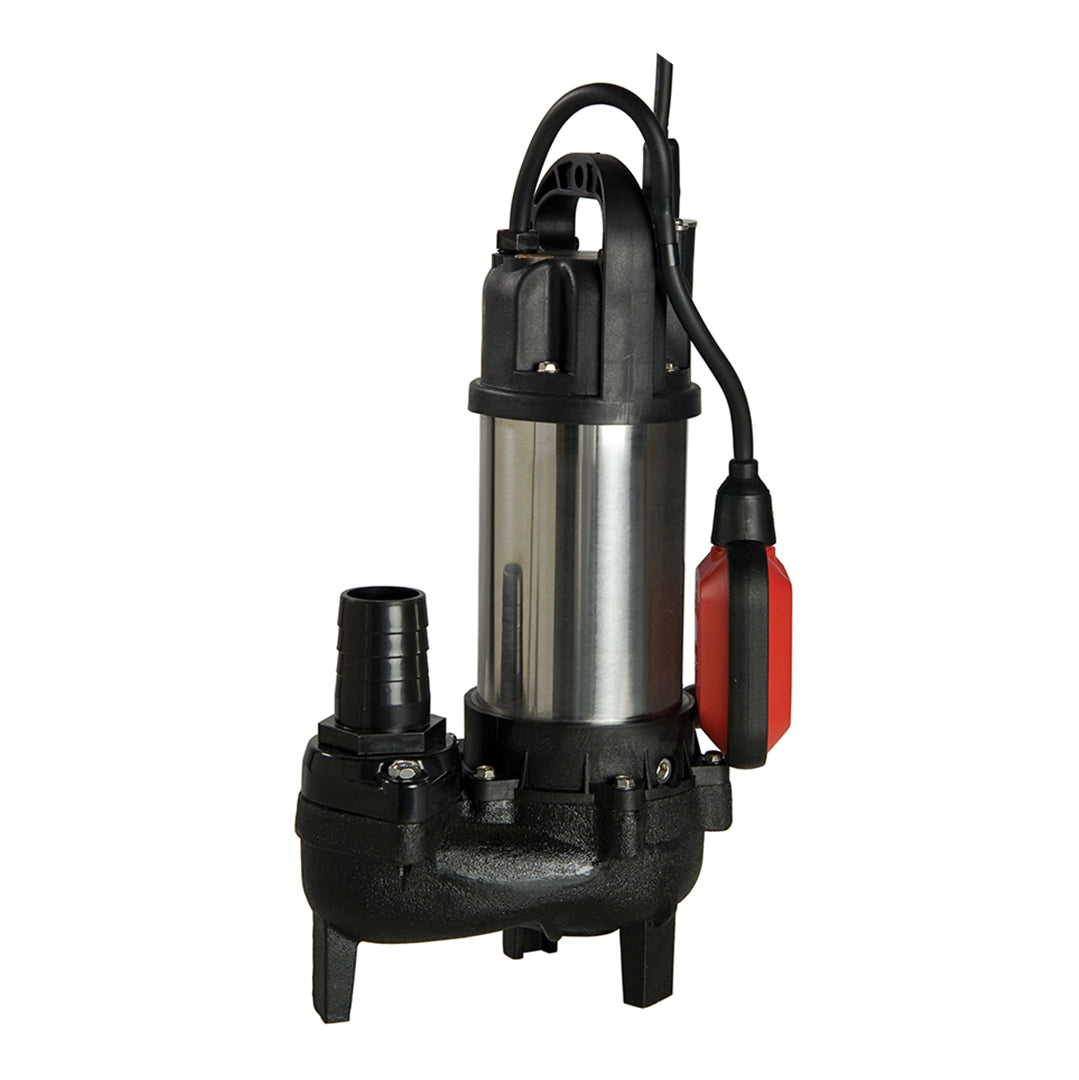

  • SV-150A Automatic Portable Submersible Pump

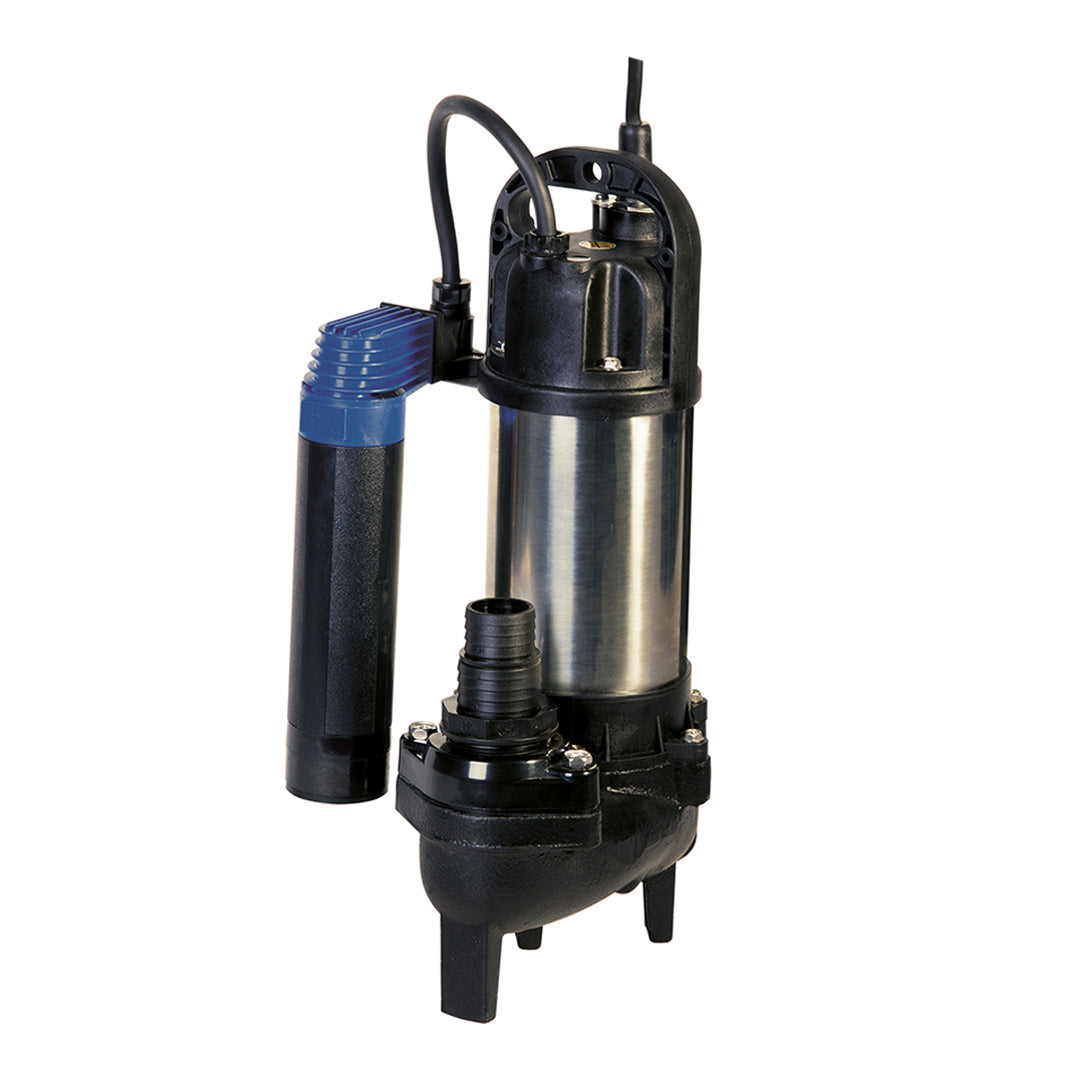

  • SV-150V Portable Submersible Pump

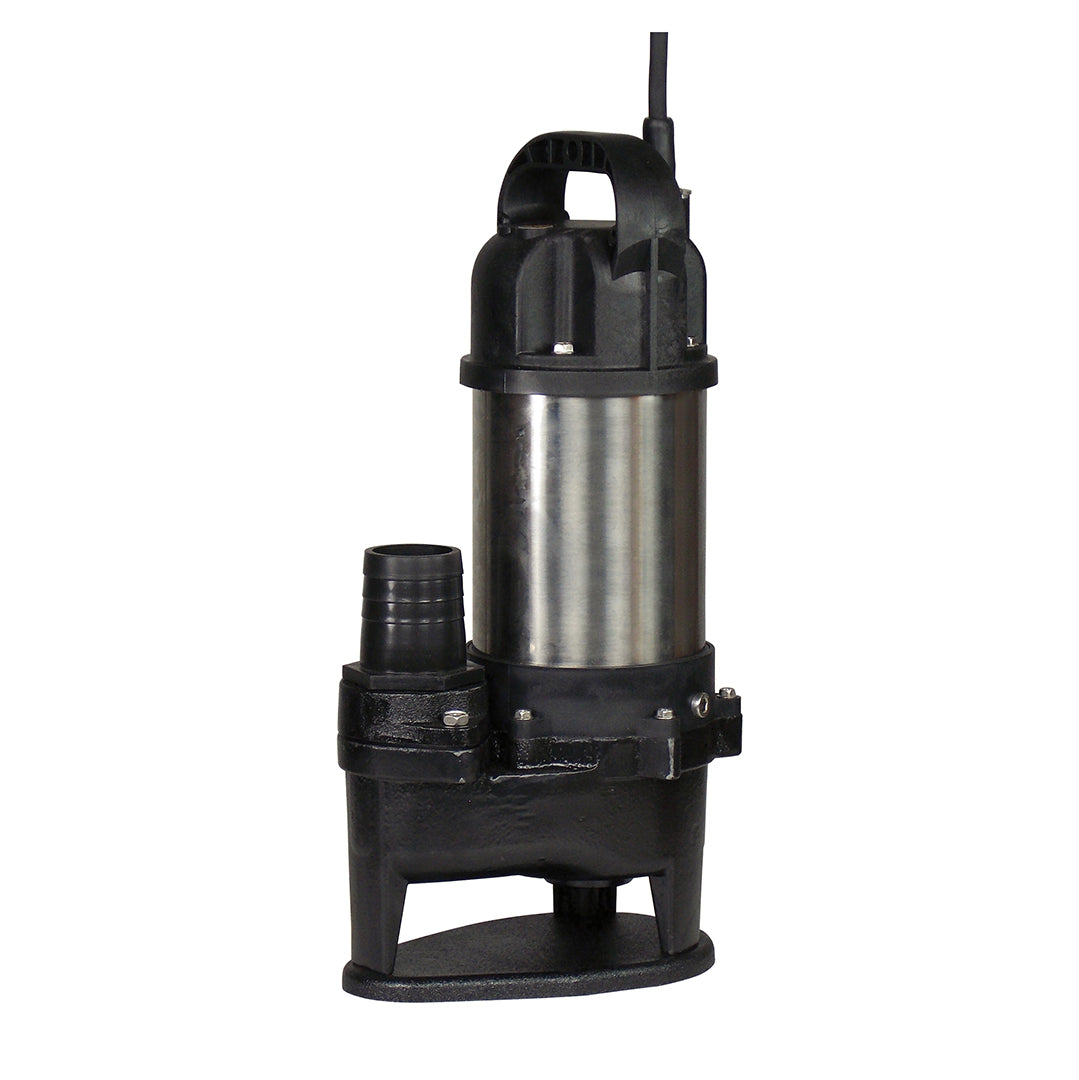

  • SV-400 Portable Submersible Pump

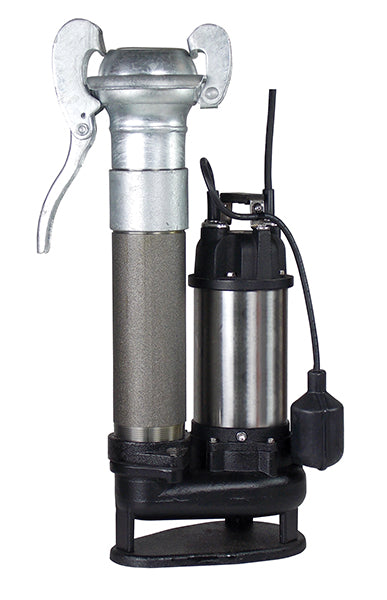

  • SV Portable Submersible Pump with Lever Lock attached

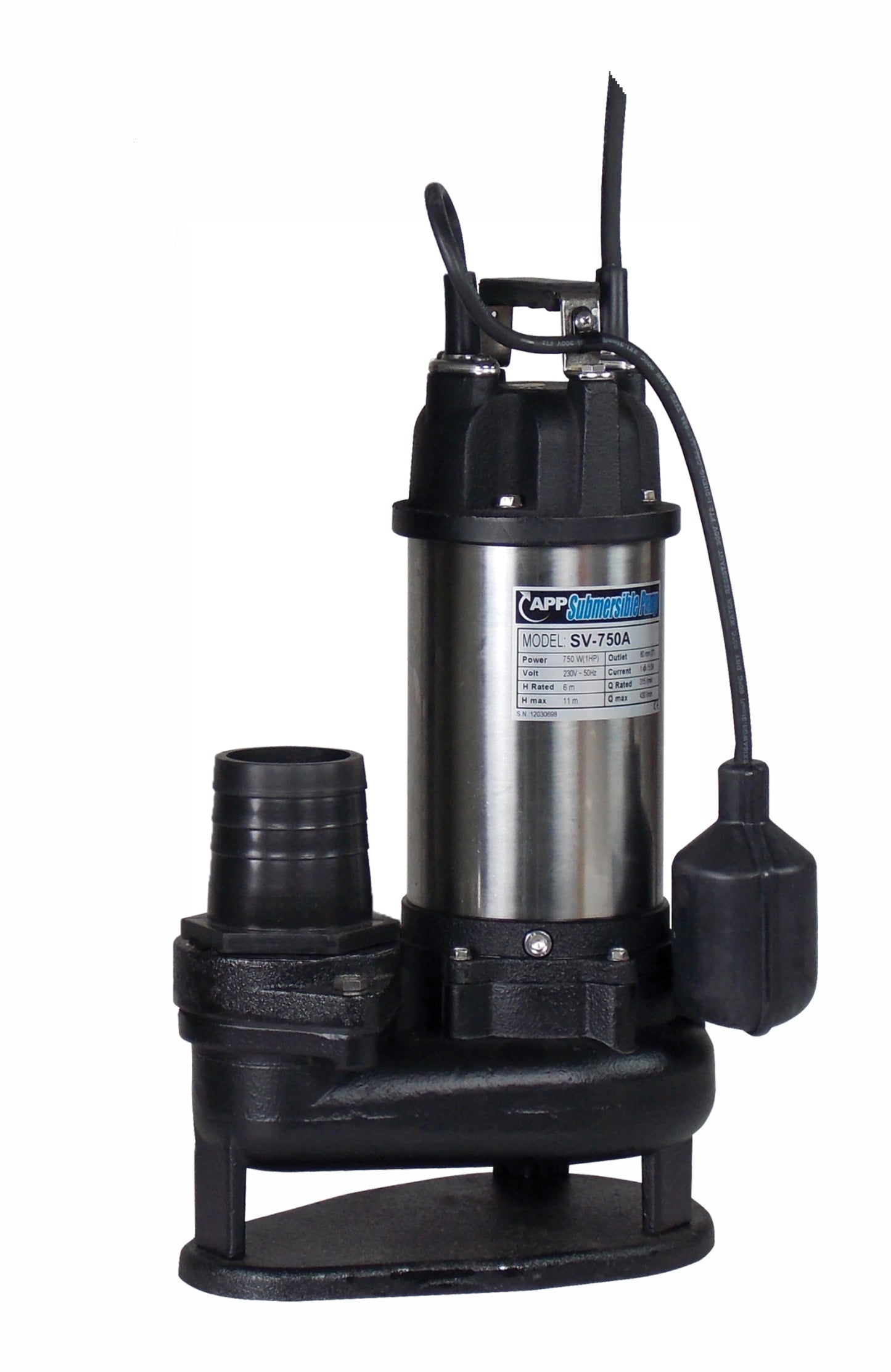

  • SV-750A Automatic Portable Submersible Pump
  • SV Portable Submersible Pump- pump curve
1 6
£213.00 GBP
£213.00 GBP
Sale Sold out
Excluding VAT
View full details
  • SV-150A Automatic Portable Submersible Pump
  • SV-150V Portable Submersible Pump
  • SV-400 Portable Submersible Pump
  • SV Portable Submersible Pump with Lever Lock attached
  • SV-750A Automatic Portable Submersible Pump
  • SV Portable Submersible Pump- pump curve

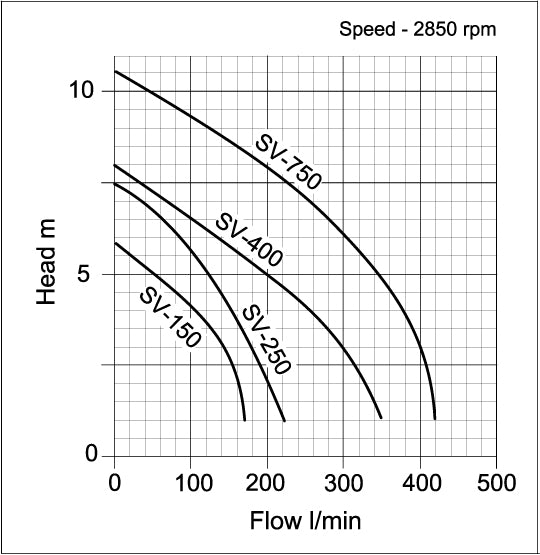

PERFORMANCE CURVE
SPECIFICATIONS

SV-150A

item code model Manual or outlet kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level (mm) off level (mm) dry weight (kgs)
Auto (mm)
15-10-1050 SV-150A A 32 0.15 230 170 5.7 27 145x205x390 345 100 8.00

*Approximate Liquid Level

SV-150V

item code model Manual or outlet kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level* (mm) off level* (mm) dry weight (kgs)
Auto (mm)
15-10-1048 SV-150V A(V) 32 0.15 230 170 5.7 27 200x205x390 230 130 8.00

*Approximate Liquid Level

SV-250(A)

item code model Manual or outlet kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level (mm) off level (mm) dry weight (kgs)
Auto (mm)
15-10-1043 SV-250 M 32 0.25 230 220 7.5 27 145x205x390 - - 9.20
15-10-1057 SV-250A A 32 0.25 230 220 7.5 27 145x205x390 345 * 100 * 9.45
15-10-1110 SV-250V A(V) 32 0.25 230 220 7.5 27 200x205x390 230 130 9.45

*Approximate Liquid Level

SV-400(A)

item code model Manual or outlet kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level (mm) off level (mm) dry weight (kgs)
Auto (mm)
15-10-1018 SV-400 M 50 0.4 110 350 9 35 160x215x420 - - 11.30
15-10-1028 SV-400 M 50 0.4 230 350 9 35 160x215x420 - - 11.30
15-10-1070 SV-400A A 50 0.4 110 350 9 35 160x215x420 385 * 150 * 11.55
15-10-1023 SV-400A A 50 0.4 230 350 9 35 160x215x420 385 * 150 * 11.55

*Approximate Liquid Level

SV-750(A)

item code model Manual or outlet kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level (mm) off level (mm) dry weight (kgs)
Auto (mm)
15-10-1081 SV-750 M 75 0.75 110 420 11 37 165x265x440 - - 17.15
15-10-1016 SV-750 M 75 0.75 230 420 11 37 165x265x440 - - 17.15
15-10-1031 SV-750A A 75 0.75 110 420 11 37 165x265x440 415 * 170 * 17.40
15-10-1083 SV-750A A 75 0.75 230 420 11 37 165x265x440 415 * 170 * 17.40

*Approximate Liquid Level

Lever Lock

item codedescription
26-85-1000SV750 3”/89mm Lever lock connection kit (male c/w male BSP lever lock coupling, galvanised pipe nipple, galvanised socket (pt no:130080-LLK)

model

w X l X h (mm)

SV-150A | SV-250(A)

145x205x390

SV-150V | SV-250V

200x205x390

SV-400

160x215x420

SV-750

165x265x440
