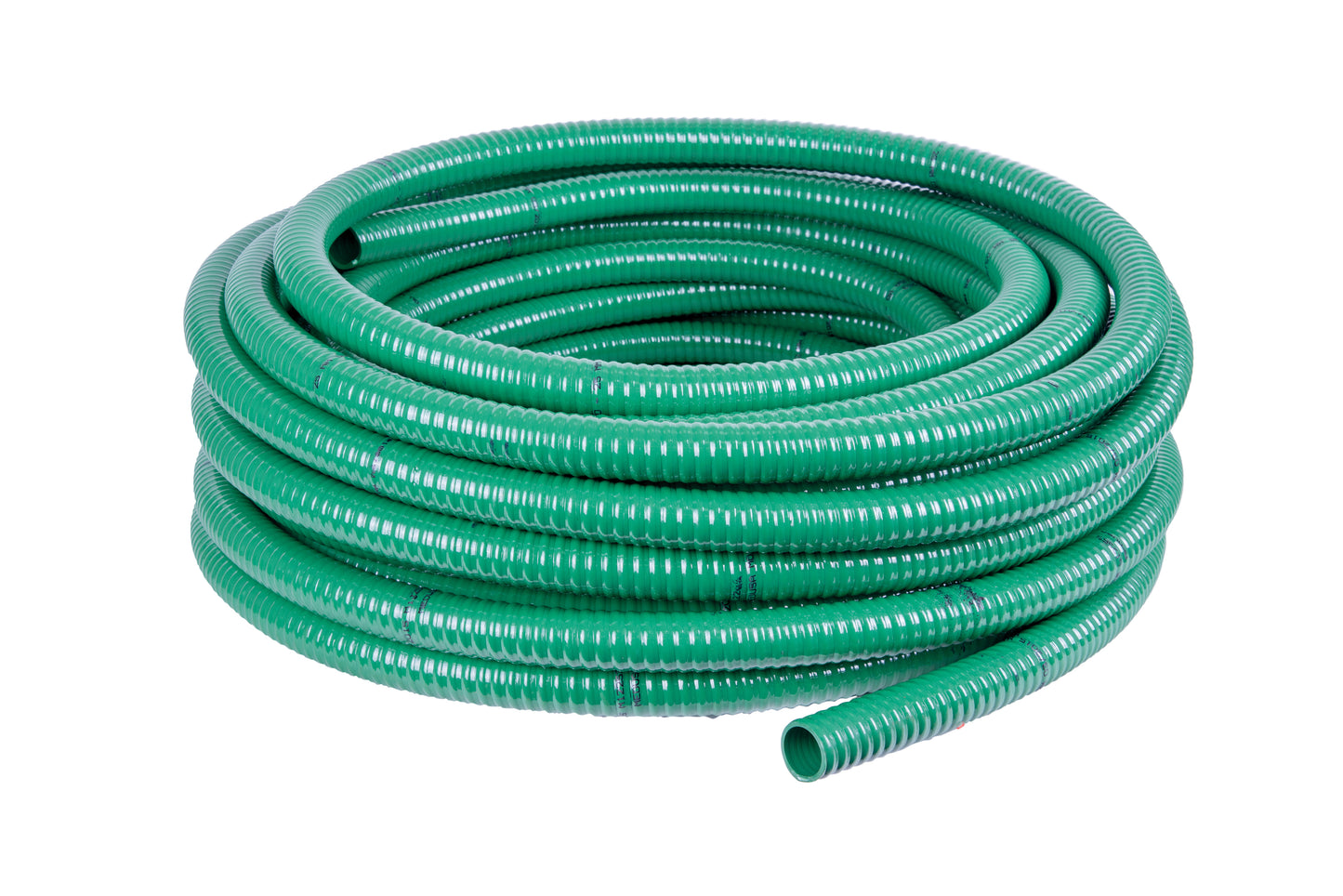

Suction and Delivery Hose

Description

Our Suction and Delivery Hose is constructed from a rigid, yet flexible, nylon material with an embedded spiral helix for reinforced construction and shock resistance. It is commonly used for the suction of various liquids and abrasive materials. These hoses can be used both on the suction and ...

TECHNICAL DATA

  • Embedded nylon spiral-helix reinforced, PVC flexible hose.
  • Supplied in cut lengths or 30 metre coils.
  • Hose colour: GREEN
  • Working pressure (bar): 6
  • Material: PVC

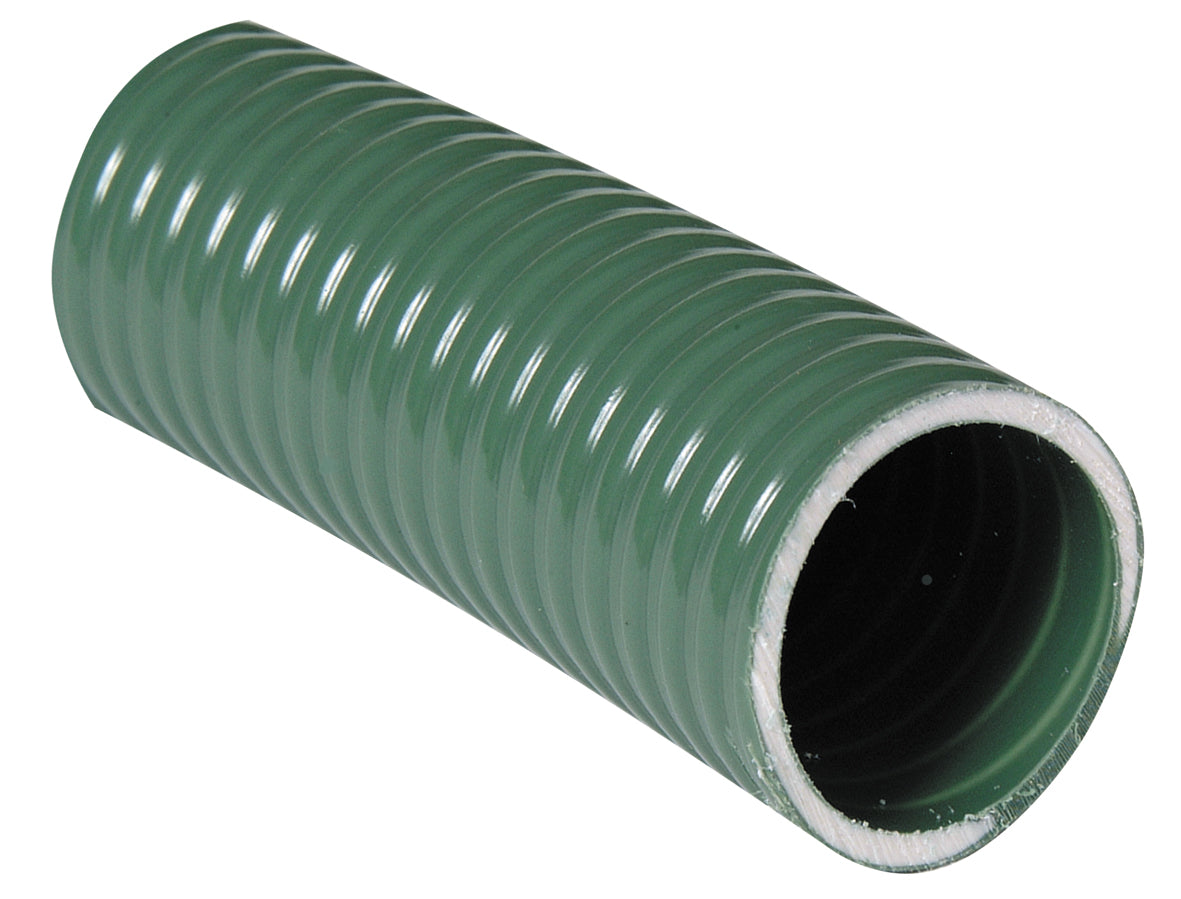

  • Close Up Image- Obart Select Suction and Delivery Hose - PVC Green
1 2
£14.81 GBP
£14.81 GBP
Sale Sold out
Excluding VAT
View full details
  • Close Up Image- Obart Select Suction and Delivery Hose - PVC Green
SPECIFICATIONS

3/4"

Item CodeSize inches (ID mm)LengthColour (Duty)Working pressure (bar)
11-55-10243/4"  (19mm)6 metreGreen tint (light)8
11-55-10393/4"  (19mm)10 metreGreen tint (light)8
11-55-10423/4"  (19mm)15 metreGreen tint (light)8
11-55-10613/4"  (19mm)20 metreGreen tint (light)8
11-55-10053/4"  (19mm)30 metreGreen tint (light)8

1"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10981"  (25mm)6 metreGreen opaque (medium)6
11-55-10531"  (25mm)10 metreGreen opaque (medium)6
11-55-10571"  (25mm)15 metreGreen opaque (medium)6
11-55-10181"  (25mm)20 metreGreen opaque (medium)6
11-55-10311"  (25mm)30 metreGreen opaque (medium)6

1 1/4"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10691 1/4"  (32mm)6 metreGreen opaque (medium)6
11-55-10851 1/4"  (32mm)10 metreGreen opaque (medium)6
11-55-10641 1/4"  (32mm)15 metreGreen opaque (medium)6
11-55-10601 1/4"  (32mm)20 metreGreen opaque (medium)6
11-55-10431 1/4"  (32mm)30 metreGreen opaque (medium)6

1 1/2"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10501 1/2"  (38mm)6 metreGreen opaque (medium)5
11-55-10191 1/2"  (38mm)10 metreGreen opaque (medium)5
11-55-10331 1/2"  (38mm)15 metreGreen opaque (medium)5
11-55-10471 1/2"  (38mm)20 metreGreen opaque (medium)5
11-55-10801 1/2"  (38mm)30 metreGreen opaque (medium)5
Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10301 1/2"  (40mm)6 metreBlack opaque (light)2
11-55-10291 1/2"  (40mm)10 metreBlack opaque (light)2
11-55-10771 1/2"  (40mm)15 metreBlack opaque (light)2
11-55-10461 1/2"  (40mm)20 metreBlack opaque (light)2
11-55-10581 1/2"  (40mm)30 metreBlack opaque (light)2

2"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10902"  (51mm)6 metreGreen opaque (medium)5
11-55-10542"  (51mm)10 metreGreen opaque (medium)5
11-55-10322"  (51mm)15 metreGreen opaque (medium)5
11-55-10722"  (51mm)20 metreGreen opaque (medium)5
11-55-10762"  (51mm)30 metreGreen opaque (medium)5

2 1/2"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10622 1/2"  (63mm)6 metreGreen opaque (medium)4
11-55-10832 1/2"  (63mm)10 metreGreen opaque (medium)4
11-55-10492 1/2"  (63mm)15 metreGreen opaque (medium)4
11-55-10482 1/2"  (63mm)20 metreGreen opaque (medium)4
11-55-10232 1/2"  (63mm)30 metreGreen opaque (medium)4

3"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10143"  (76mm)6 metreGreen opaque (medium)4
11-55-10073"  (76mm)10 metreGreen opaque (medium)4
11-55-10033"  (76mm)15 metreGreen opaque (medium)4
11-55-10733"  (76mm)20 metreGreen opaque (medium)4
11-55-10123"  (76mm)30 metreGreen opaque (medium)4

4"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10254"  (102mm)6 metreGreen opaque (medium)3
11-55-10634"  (102mm)10 metreGreen opaque (medium)3
11-55-10824"  (102mm)15 metreGreen opaque (medium)3
11-55-10064"  (102mm)20 metreGreen opaque (medium)3
11-55-11014"  (102mm)30 metreGreen opaque (medium)3

6"

Item CodeSizeLengthColour (Duty)Working pressure (bar)
11-55-10216"  (152mm)6 metreGreen opaque (medium)3
11-55-10556"  (152mm)10 metreGreen opaque (medium)3
11-55-10816"  (152mm)15 metreGreen opaque (medium)3
11-55-10026"  (152mm)20 metreGreen opaque (medium)3
11-55-10176"  (152mm)30 metreGreen opaque (medium)3
