SA(M) Submersible Seawater Pumps

Description

The SA(M) pumps feature all wetted parts in 316 grade cast and pressed stainless steel. This “marine grade” construction enables these pumps to perform well in seawater and salt water. Available in single or three phase, single phase pumps are automatic operation only, with a pendant type leve...

TECHNICAL DATA

  • Outlet (BSPF): 2"
  • Motor output (kW): 0.6 - 1
  • Max head (m): 9 - 12
  • Phases: 1 & 3
  • Max flow (I/min): 200 - 400
  • Free passage (mm): 35
Skip to product information
1 of 3
Regular price £1,288.00 GBP
Regular price Sale price £1,288.00 GBP
Sale Sold out
Excluding VAT
View full details

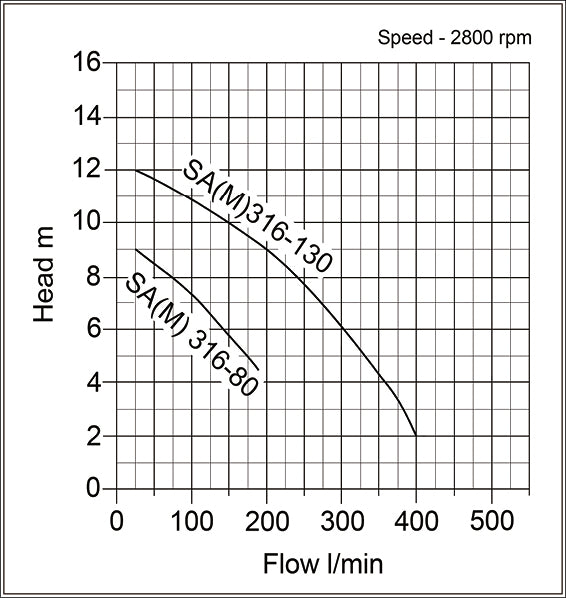

PERFORMANCE CURVE
SPECIFICATIONS

SAM 316-80/S

Item CodeModel Manual Or AutoOutlet BSPFKWVolt (v)Flow (I/min)Head (Mtrs)Free Passage (mm)WxLxHDry Weight (kgs)
19-10-1007SAM 316-80/SA2"0.6230200935154X237X42718

SA 316-80

Item CodeModel Manual Or AutoOutlet BSPFKWVolt (v)Flow (I/min)Head (Mtrs)Free Passage (mm)WxLxHDry Weight (kgs)
19-10-1008SA 316-80M2"0.6400200935155X237X42720

SAM 316-130/S

Item CodeModel Manual Or AutoOutlet BSPFKWVolt (v)Flow (I/min)Head (Mtrs)Free Passage (mm)WxLxHDry Weight (kgs)
19-10-1009SAM 316-130/SA2"12304001235155X237X427

20

SA 316-200

Item CodeModel Manual Or AutoOutlet BSPFKWVolt (v) Flow (I/min)Head (Mtrs)Free Passage (mm)WxLxHDry Weight (kgs)
19-10-1010SA 316-200M2"14004001235155X237X42720

model

w X l X h (mm)

SA(M)316

154x237x427
