RV(M) Vertical Multistage Pump

Description

RV(M) are non self-priming, vertical multi-stage pumps. For the pumping of clean water only, they develop high pressures from comparatively small motors and operate virtually silent, hence they are suitable for domestic use, in addition to industrial, horticultural and processing applications....

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1 1/4"
  • Motor output (kW): 1.5 - 3
  • Max head (m): 50 - 98
  • Phases: 1 & 3
  • Max flow (I/min): 160 - 180
  • Speroni RV(M) Vertical Multistage Pump- blue stainless steel
  • RV(M) Vertical Multistage Pump- location shot, pumps in action fitted alongside pressure vessels
  • RV(M) Vertical Multistage Pump- pump curve graph
1 3
£637.00 GBP
£637.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni RV(M) Vertical Multistage Pump- blue stainless steel
  • RV(M) Vertical Multistage Pump- location shot, pumps in action fitted alongside pressure vessels
  • RV(M) Vertical Multistage Pump- pump curve graph

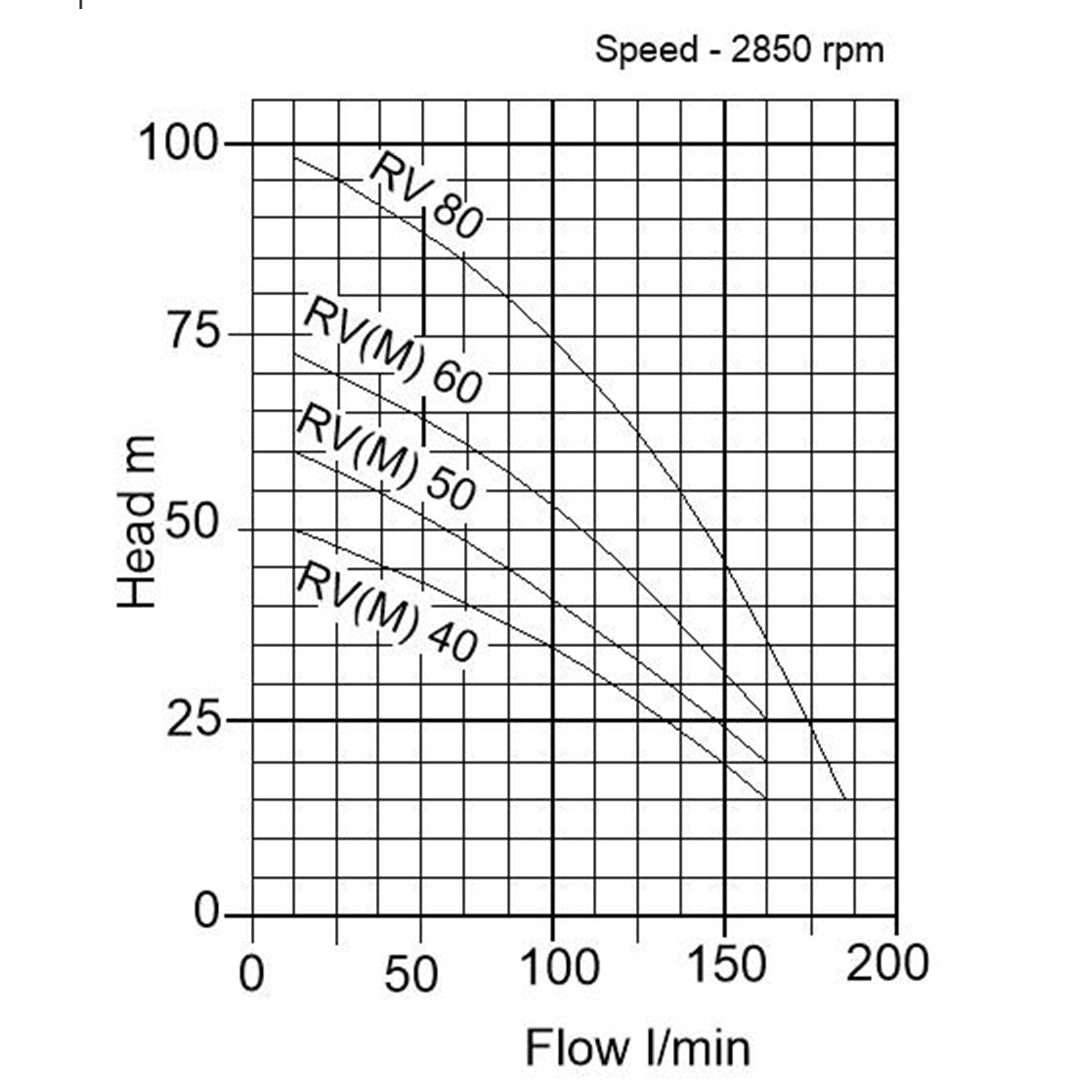

PERFORMANCE CURVE
SPECIFICATIONS

RVM 40

Item codeModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1127 RVM40 1¼"1"1.5230 1605018124752526

RV 40

Item CodeModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Packing weight
19-15-1132RV40 1¼"1"1.54001605018124752526

RVM 50

Item code
ModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Packing weight
19-15-1243RVM50 1¼"1"1.852301606018124755427

RV 50

Item code
ModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Packing weight
19-15-1064RV50 1¼"1"1.854001606018124755427

RVM 60

Item CodeModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Packing weight
19-15-1227RVM60 1¼"1"2.22301607318124758328

RV 60

Item Code ModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1017 RV60 1¼"1"2.24001607318124758328

RV 80

Item Code ModelInlet (BSPF)Outlet (BSPF)KWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1214RV80 1¼"1"34001809818124764132

model

w X l X h (mm)

RV(M)40

181x247x525

RV(M)50

181x247x554

RV(M)60

181x247x583

RV 80

181x247x641
