RSX(M)4 Horizontal Multistage Pumps

Description

RSX(M)4 are non self-priming, multi-stage, horizontal centrifugal pumps with all the components that are in contact with the liquid constructed in 304 stainless steel. For the pumping of clean water only, they develop high pressures from comparatively small motors and operate virtually silent,...

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1 1/4"
  • Motor output (kW): 0.55 - 1.1
  • Max head (m): 30 - 60
  • Phases: 1 & 3
  • Max flow (I/min): 160 - 180

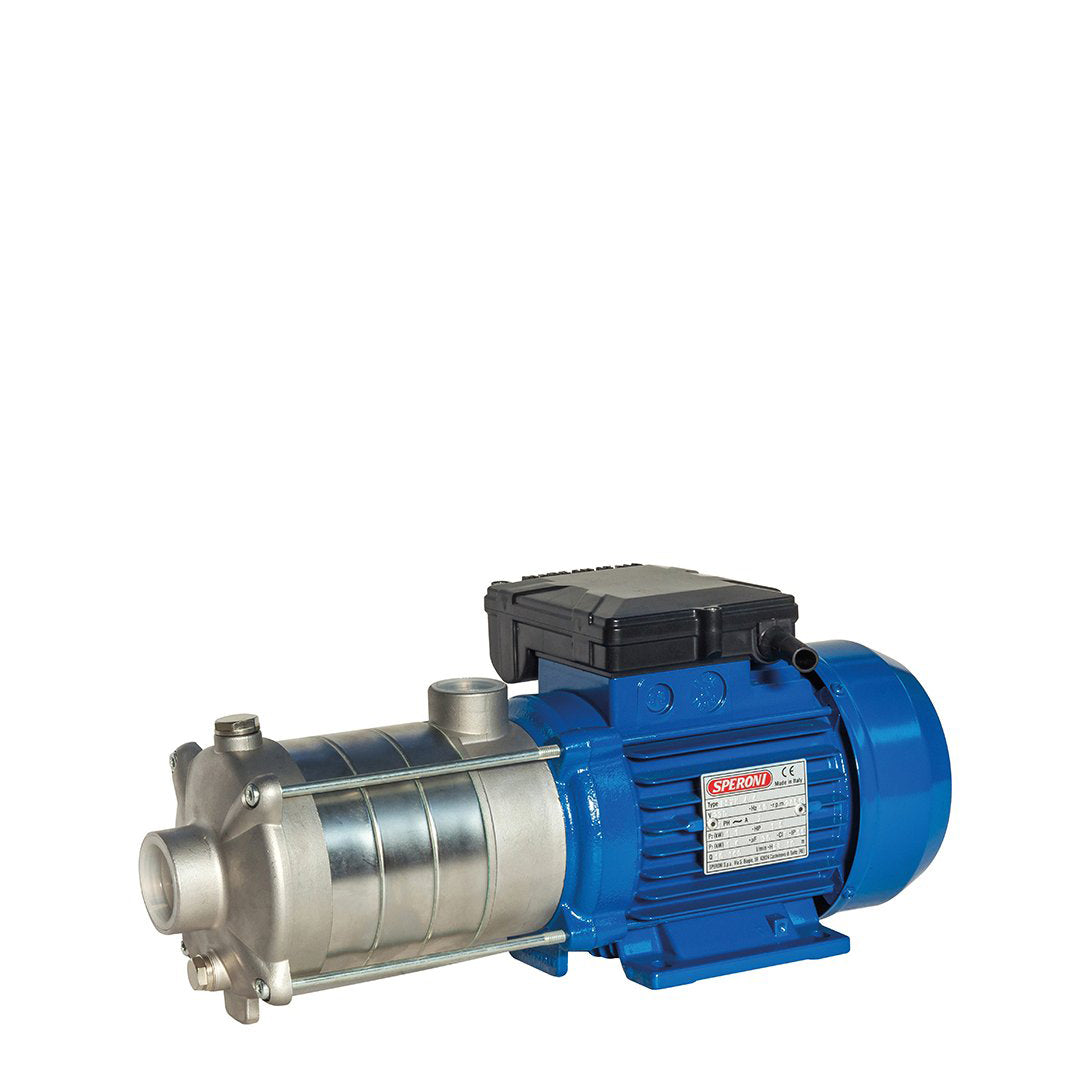

  • RSX(M)4 Speroni Horizontal Multistage Pump stainless steel- product shot
  • RSX(M)4 Speroni Horizontal Multistage Pump- pump curve
1 2
£400.00 GBP
£400.00 GBP
Sale Sold out
Excluding VAT
View full details
  • RSX(M)4 Speroni Horizontal Multistage Pump stainless steel- product shot
  • RSX(M)4 Speroni Horizontal Multistage Pump- pump curve

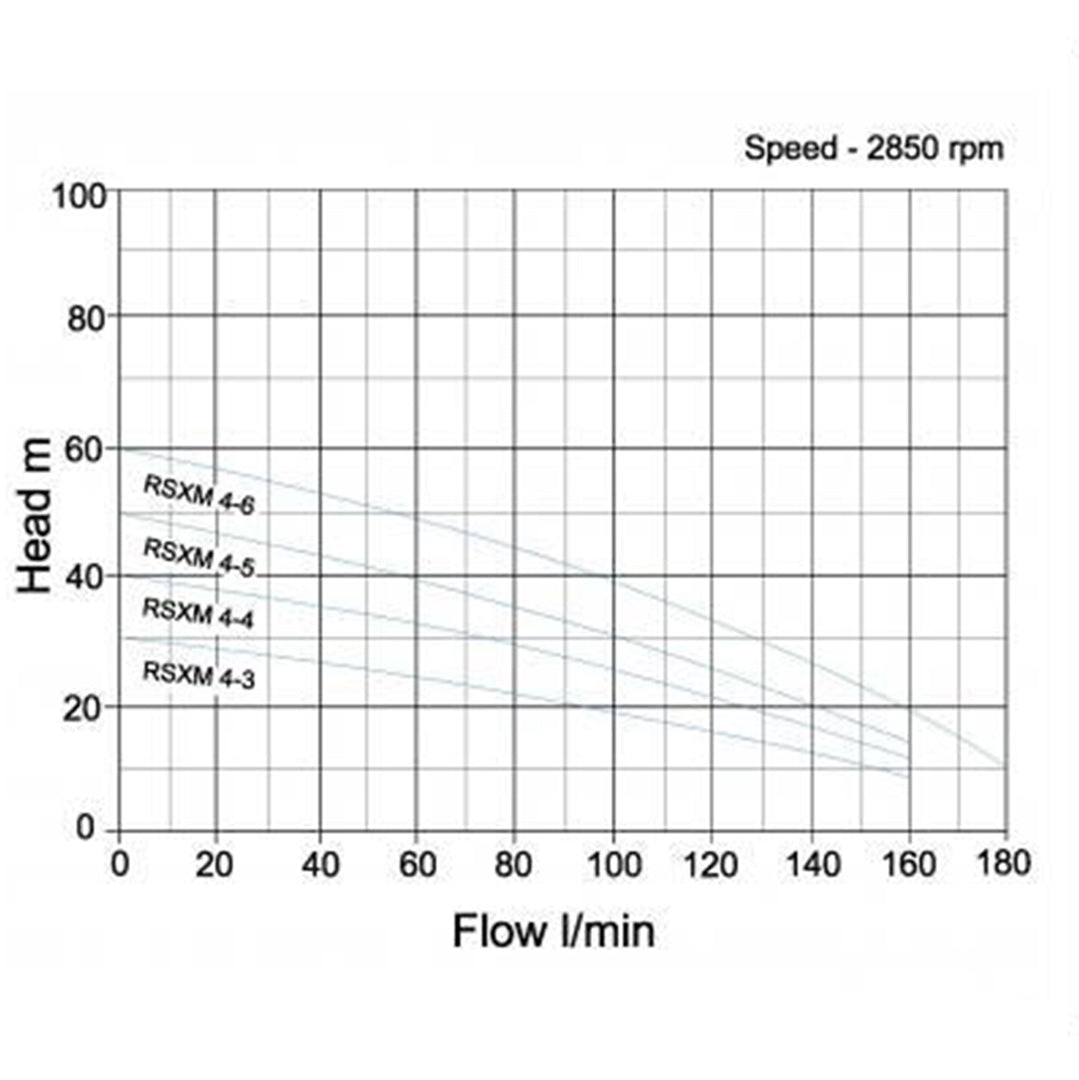

PERFORMANCE CURVE
SPECIFICATIONS

RSXM 4-3

Item codeModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1272RSXM4-31¼"1"0.552301603014336221610

RSX 4-3

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1184 RSX4-31¼"1"0.554001603014336221610

RSXM 4-4

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1294 RSXM4-41¼"1"0.752301604014338921610.5

RSX 4-4

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1208 RSX4-41¼"1"0.754001604014338921610.5

RSXM 4-5

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1169 RSXM4-51¼"1"0.752301605014341621611

RSX 4-5

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1210 RSX4-51¼"1"0.754001605014341621611

RSXM 4-6

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1086 RSXM4-61¼"1"1.12301806014344321612

RSX 4-6

Item code ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1150 RSX4-61¼"1"1.14001806014344321612

model

w X l X h (mm)

RSX(M)4-3

143x362x216

RSX(M)4-4

143x389x216

RSX(M)4-5

143x416x216

RSX(M)4-6

143x443x216
