RSX(M)10 Horizontal Multistage Pumps

Description

RSX(M)10 are non self-priming, multi-stage, horizontal centrifugal pumps with all the components that are in contact with the liquid constructed in 304 stainless steel. For the pumping of clean water only, they develop high pressures from comparatively small motors and operate virtually silent,...

TECHNICAL DATA

  • Outlet (BSPF): 1½"
  • Inlet (BSPF): 1½"
  • Motor output (kW): 1.5 - 3
  • Max head (m): 44 - 65
  • Phases: 1 & 3
  • Max flow (I/min): 280 - 300
  • RSX(M)10 Speroni Horizontal Multistage Pump stainless steel- product shot
  • RSX(M)10 Speroni Horizontal Multistage Pump- pump curve
1 2
£802.00 GBP
£802.00 GBP
Sale Sold out
Excluding VAT
View full details
  • RSX(M)10 Speroni Horizontal Multistage Pump stainless steel- product shot
  • RSX(M)10 Speroni Horizontal Multistage Pump- pump curve

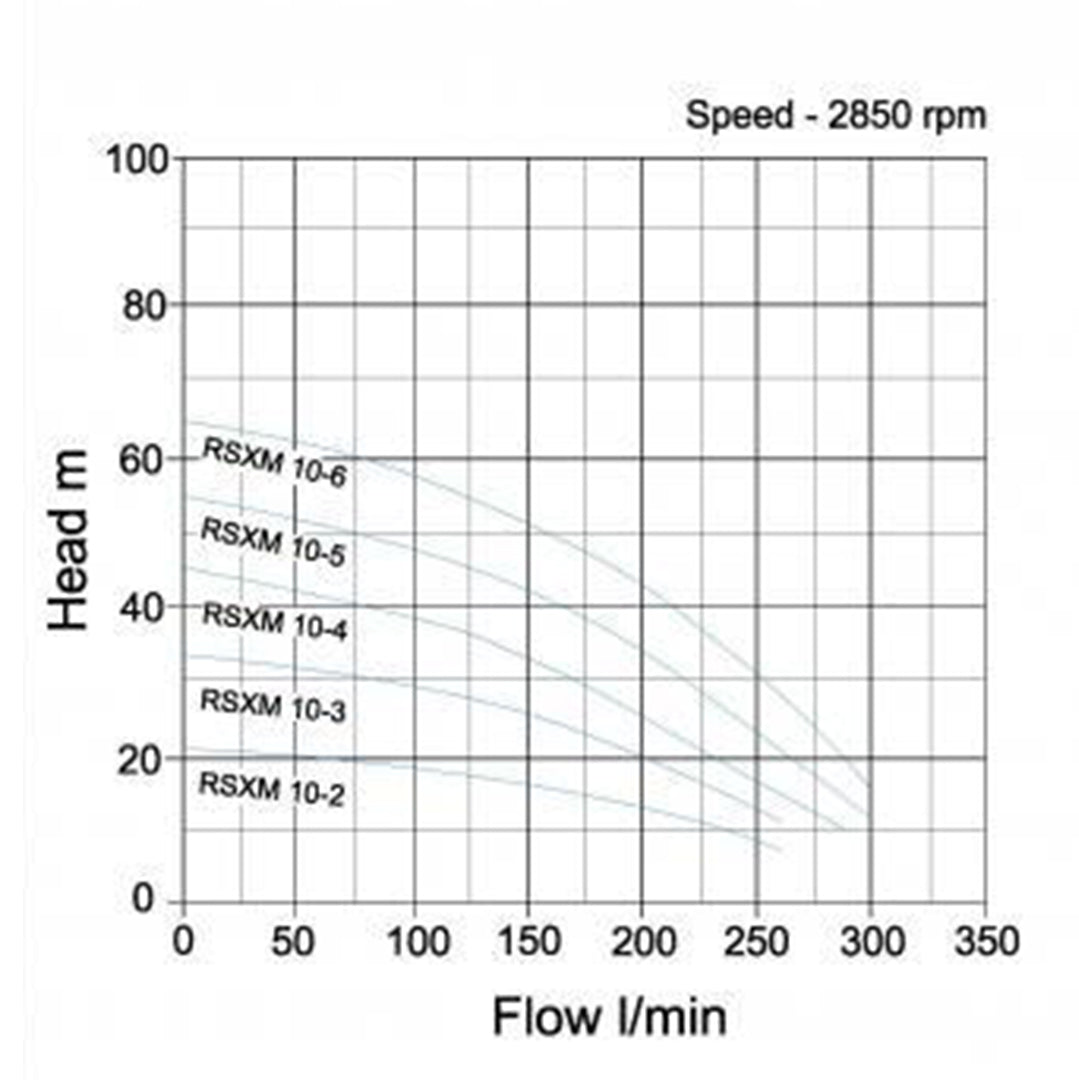

PERFORMANCE CURVE
SPECIFICATIONS

RSXM 10-4

Item CodeModelInlet (BSPF)Outlet (BSPF)kWVolt (V)Flow (l/min)Head (mtr)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1248RSXM10-41½"1½"1.5230V4428016544225419

RSX 10-4

Item  Code ModelInlet (BSPF)Outlet (BSPF)kWVolt (v)Flow (l/min)Head (mtr)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1259 RSX10-41½"1½"1.5400V4428016544225419

RSXM 10-5

Item  Code ModelInlet (BSPF)Outlet (BSPF)kWVolt (v)Flow (l/min)Head (mtr)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1083 RSX10-51½"1½"2.2400V5430017051523527

RSX 10-6

Item Code ModelInlet (BSPF)Outlet (BSPF)kWVolts (v)Flow (l/min)Head (mtr)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1170 RSX10-61½"1½"3400V6530017056223530

model

w X l X h (mm)

RSX(M)10-4

165x442x254

RSX(M)10-5

170x515x235

RSX10-6

170x562x235
