RS(M) Horizontal Multistage Pumps

Description

The RS(M) are non self-priming, multi-stage, horizontal centrifugal pumps. For the pumping of clean water only, they develop high pressures from comparatively small motors and operate virtually silent, hence they are suitable for domestic use, in addition to industrial and horticultural applic...

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1" - 1 1/4"
  • Motor output (kW): 1.5 - 3
  • Max head (m): 49 - 95
  • Phases: 1 & 3
  • Max flow (I/min): 160

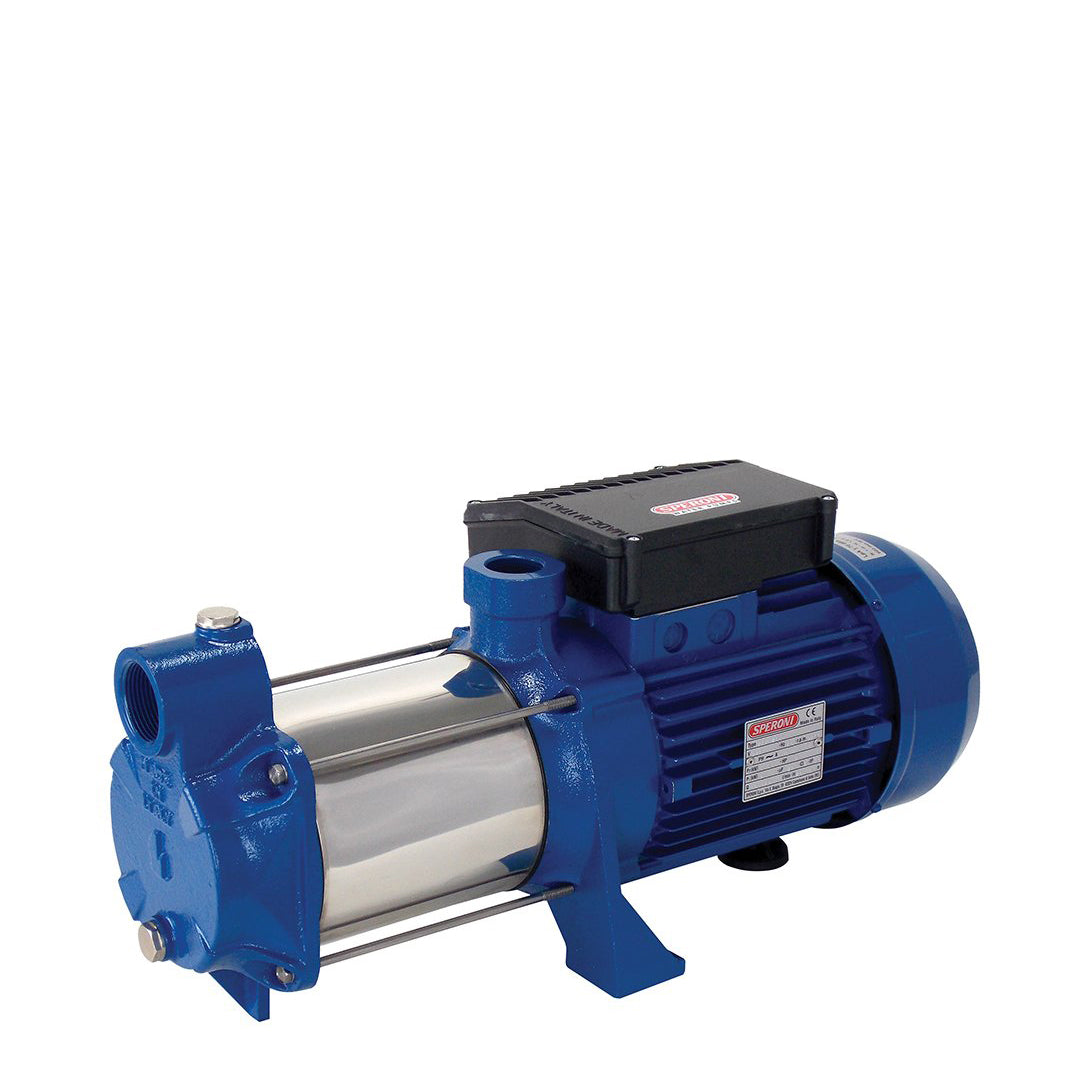

  • RSM60 Speroni Blue RS(M) Horizontal Multistage Pump
  • RS(M) Horizontal Multistage Pump- pump curve graph
1 2
£582.00 GBP
£582.00 GBP
Sale Sold out
Excluding VAT
View full details
  • RSM60 Speroni Blue RS(M) Horizontal Multistage Pump
  • RS(M) Horizontal Multistage Pump- pump curve graph

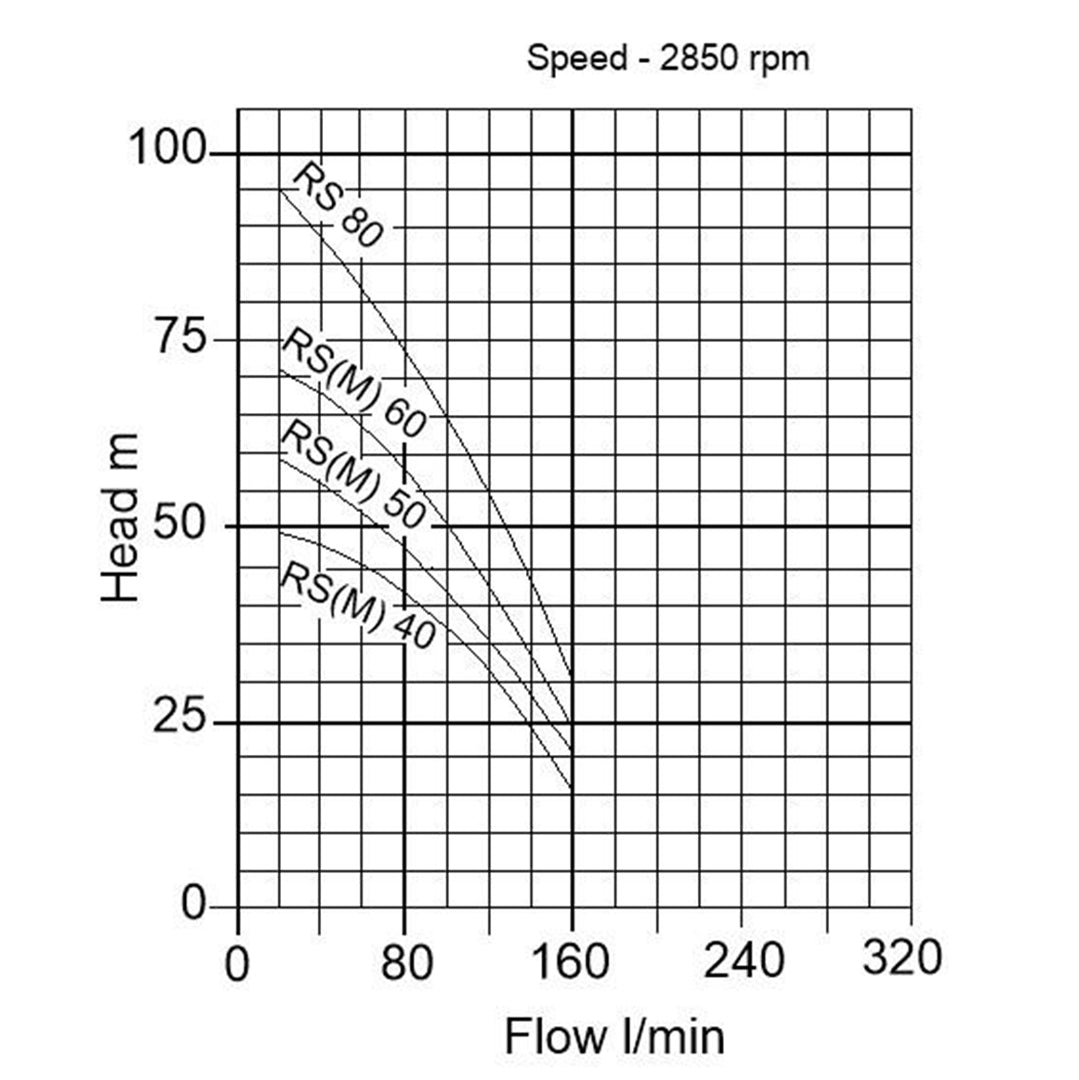

PERFORMANCE CURVE
SPECIFICATIONS

RSM 40

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (mtrs)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1046RSM40 1" BSPF1.5230160491¼" BSPF19451424222

RS40

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (mtrs)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1201RS40 1" BSPF1.5400160491¼" BSPF19451424222

RSM 50

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1052RSM50 1" BSPF1.9230160591¼" BSPF19454324223

RS 50

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1281RS50 1" BSPF1.9400160591¼" BSPF19454324323

RSM 60

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1079RSM60 1" BSPF2.2230160711¼" BSPF19457224224

RS 60

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1143RS60 1" BSPF2.2400160711¼" BSPF19457224224

RS 80

Item code ModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1074RS80 1" BSPF3400160951¼" BSPF19463024225

model

w X l X h (mm)

RS(M)40

194x514x242

RS(M)50

194x543x242

RS(M)60

194x572x242

RS 80

194x630x242
