RS32EA Shallow Water Pump

Description

The RS32EA is a compact, automatic submersible pump with a miniature float-switch designed to control very shallow water levels and in sumps with limited space. With the added feature of a narrow operating range (on at 50mm - off at 25mm) it is particularly suited to flat or awkward areas where...

TECHNICAL DATA

  • Outlet (mm): 32
  • Motor output (kW): 0.13
  • Max head (m): 7.5
  • Phases: 1
  • Max flow (I/min): 130
  • Free passage (mm): 9

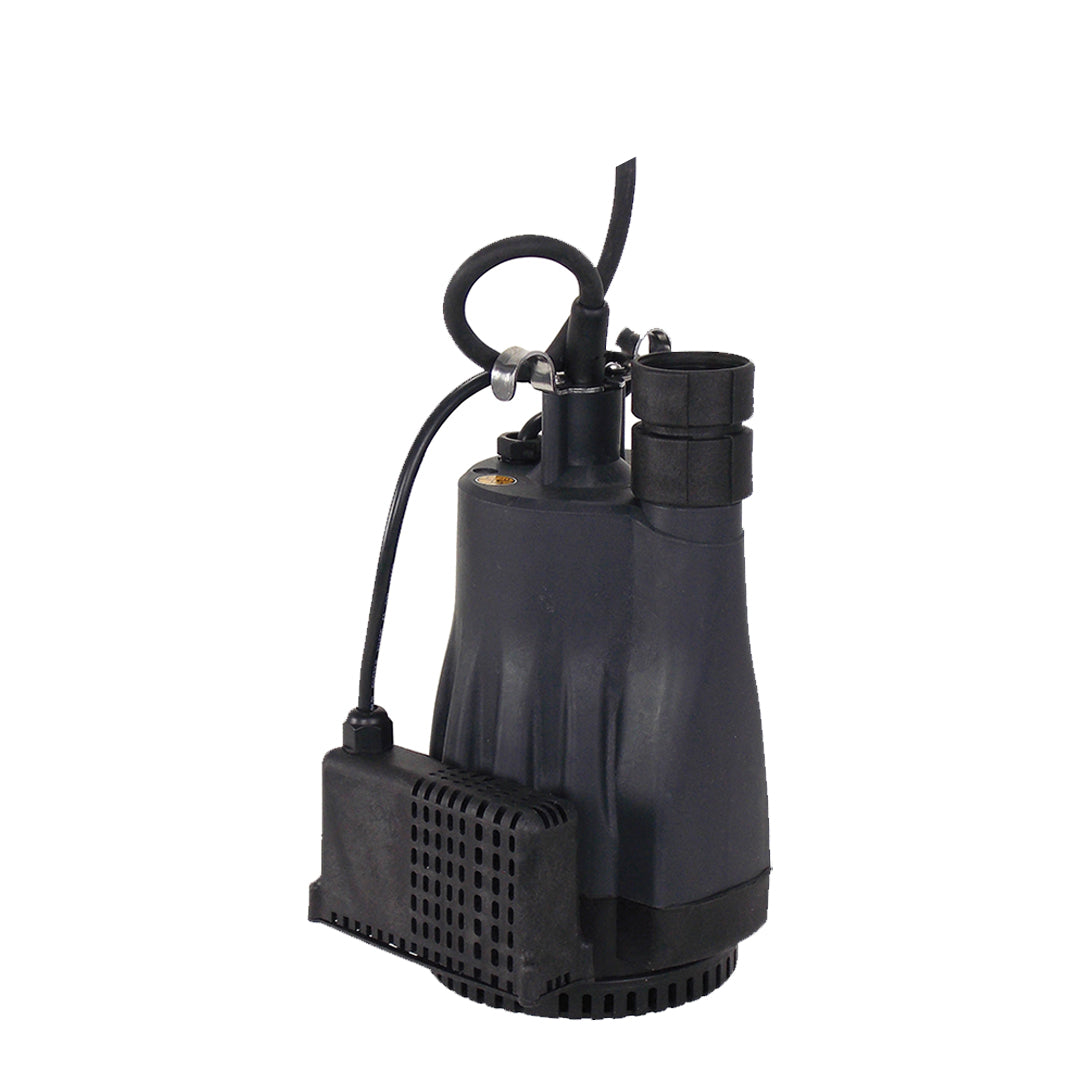

  • RS32EA APP Shallow Water Pump- black Thermoplastic

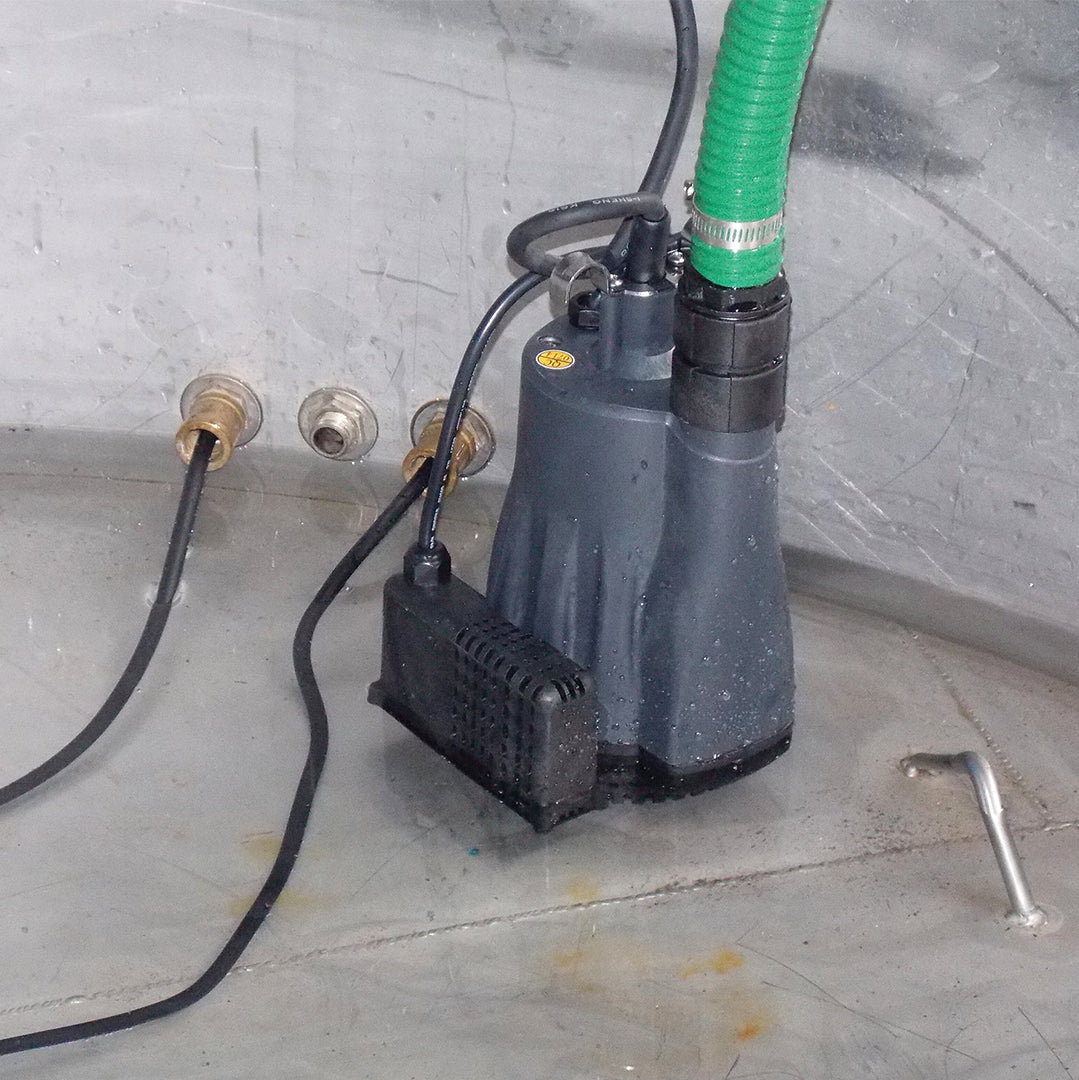

  • RS32EA Shallow Water Pump- location shot, pump placed in shallow water with hose attached for water extraction

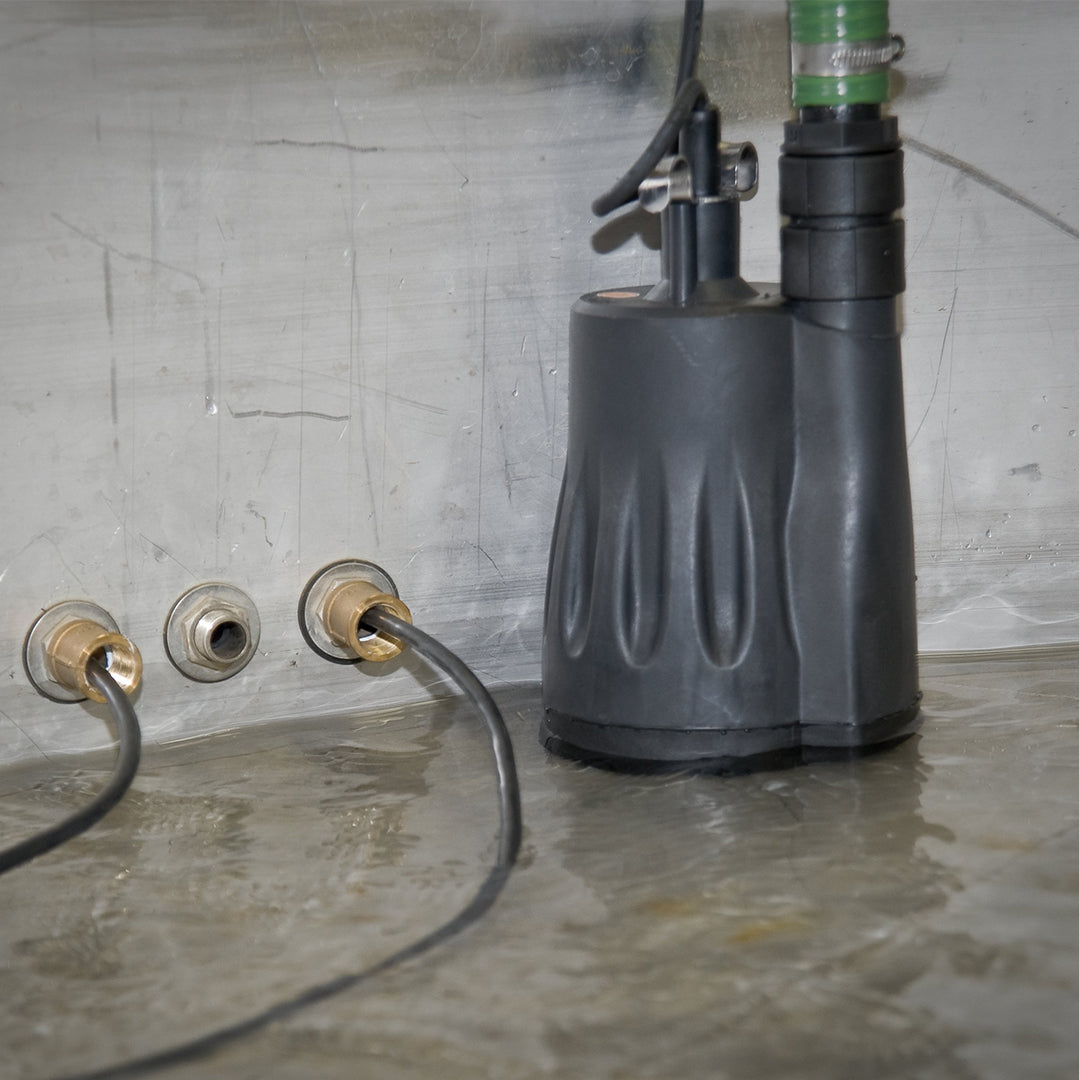

  • RS32EA Shallow Water Pump- location shot, pump placed in shallow water with hose attached for water extraction (image 2)

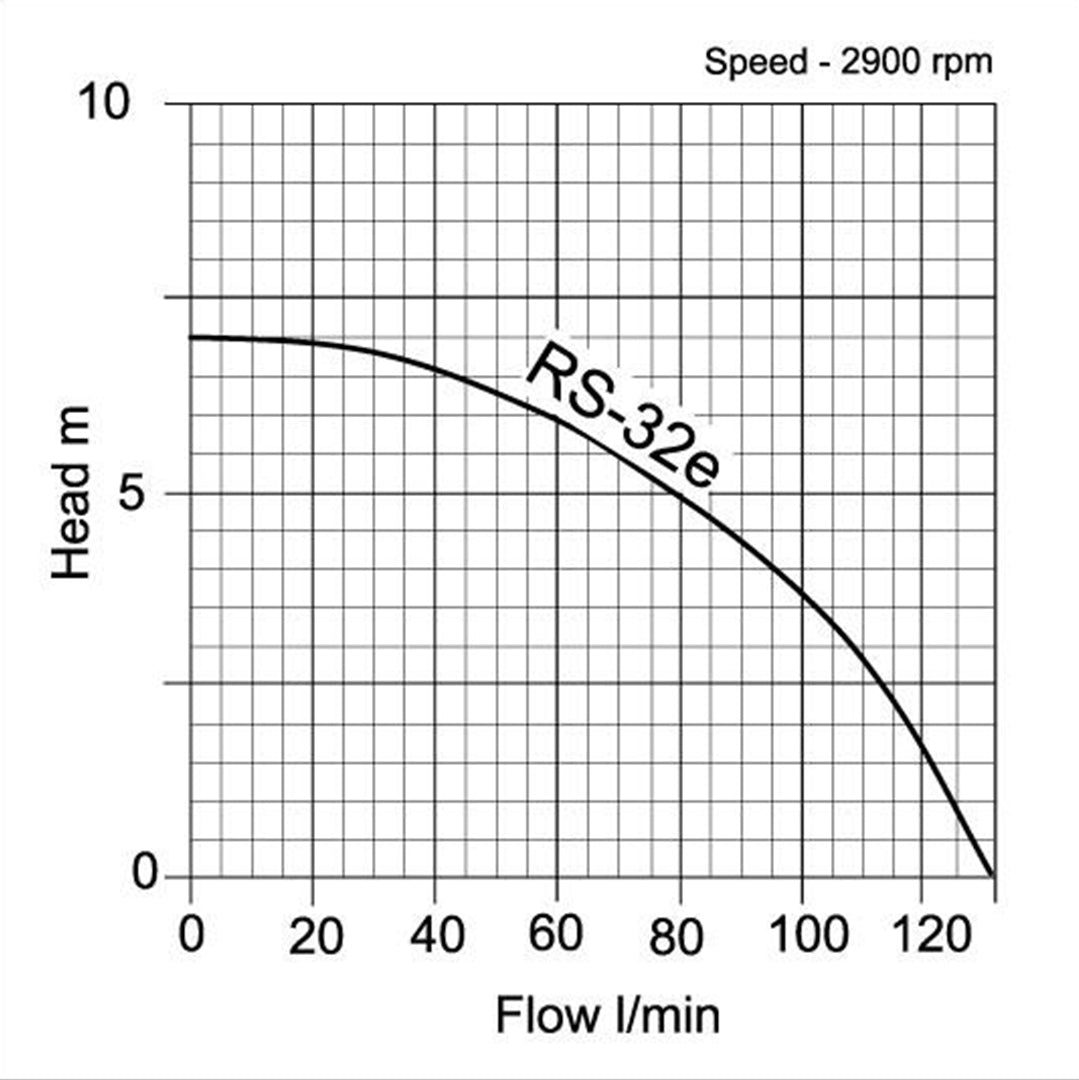

  • RS32EA - Shallow Water Pump- pump curve
1 4
£152.00 GBP
£152.00 GBP
Sale Sold out
Excluding VAT
View full details
  • RS32EA APP Shallow Water Pump- black Thermoplastic
  • RS32EA Shallow Water Pump- location shot, pump placed in shallow water with hose attached for water extraction
  • RS32EA Shallow Water Pump- location shot, pump placed in shallow water with hose attached for water extraction (image 2)
  • RS32EA - Shallow Water Pump- pump curve
PERFORMANCE CURVE
SPECIFICATIONS

RS32EA

Item Code

Model

Manual or Auto

Outlet (mm)

kW

Volt (v)

Flow (l/min)

Head (metres)

Free Passage (mm)

WxLxH (mm)

On Level (mm)

Off Level (mm)

15-10-1026

RS32EA

A

32

0.13

230V

130

7.5

9

160x170x295

50

25

model

w X l X h (mm)

RS32EA

160x170x295
