Name: RA(M) Horizontal Centrifugal Pumps
Brand: Speroni
SKU: 19-15-1198
Price: 290.0 GBP
Availability: InStock

Description

RA(M) are self-priming, multi-stage, horizontal centrifugal pumps. For the pumping of clean water only, they develop high pressures from comparatively small motors and operate virtually silent, hence they are suitable for domestic use, in addition to industrial and horticultural applications. 1...

TECHNICAL DATA

Outlet (BSPF): 1"
Inlet (BSPF): 1" - 1 1/4"
Motor output (kW): 0.6 - 1.9
Max head (m): 34 - 61
Phases: 1 & 3
Max flow (I/min): 90 - 160

1 3

£290.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

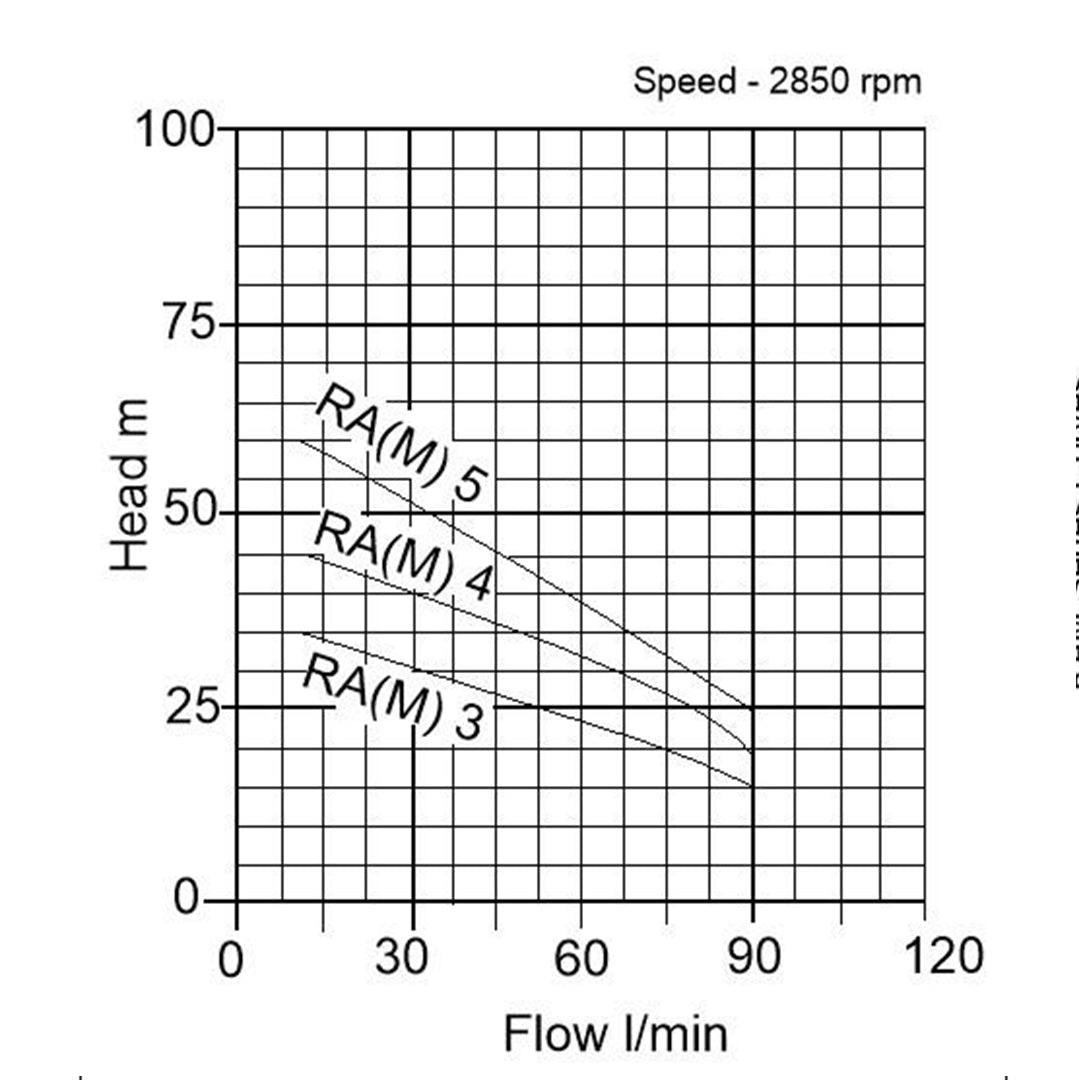

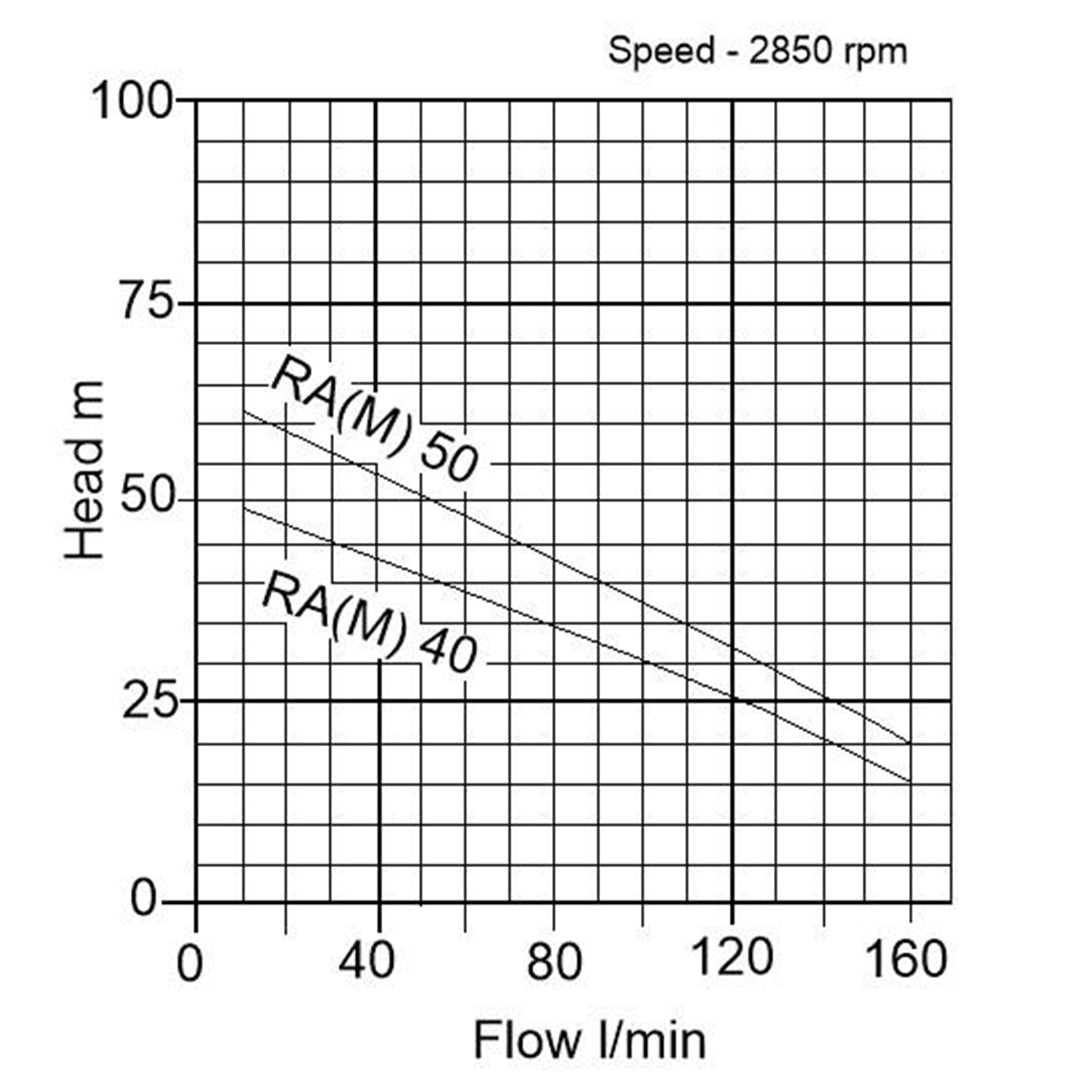

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue

RA(M) Catalogue Page

RAM3

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1198	RAM3	1" BSPF	0.6	230	90	34	1" BSPF	180	398	185	13

RAM3 Spare Parts

RAM4

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1009	RAM4	1" BSPF	0.7	230	90	45	1" BSPF	180	422	185	14

RAM4 Spare Parts

RAM5

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1120	RAM5	1" BSPF	1.1	230	90	60	1" BSPF	180	446	185	15

RAM5 Spare Parts

RA5

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1160	RA5	1" BSPF	1.1	400	90	60	1" BSPF	180	446	186	15

RA5 Spare Parts

RAM40

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1106	RAM40	1" BSPF	1.5	230	160	49	1¼" BSPF	194	533	242	22

RA40

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1167	RA40	1" BSPF	1.5	400	160	49	1¼" BSPF	194	533	242	22

RAM50

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1137	RAM50	1" BSPF	1.9	230	160	61	1¼" BSPF	194	562	242	23

RA50

Item code	Model	Outlet (mm)	kW	Volt (v)	Flow (l/min)	Head (metres)	Inlet (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1173	RA50	1" BSPF	1.9	400	160	61	1¼" BSPF	194	562	242	23

model

w X l X h (mm)

RAM 3

180x398x185

RAM 4

180x422x185

RA(M) 5

180x446x185

RA(M) 40

194x533x242

RA(M)50

194x562x242
