POMA4 Submersible Drainage Water Pump

Description

The POMA4 pump is light, compact, has an energy efficient motor and integral anti-airlock valve. It can pump waste containing fibrous material and suspended soft solids. With a tube type float switch, for automatic operation in areas with limited space or where precise level control is require...

TECHNICAL DATA

  • Outlet (BSPF/mm): 2” / 50
  • Motor output (kW): 0.15
  • Max head (m): 5.7
  • Phases: 1
  • Max flow (I/min): 190
  • Free passage (mm): 35
Skip to product information
1 of 5
Regular price £452.00 GBP
Regular price Sale price £452.00 GBP
Sale Sold out
Excluding VAT
View full details

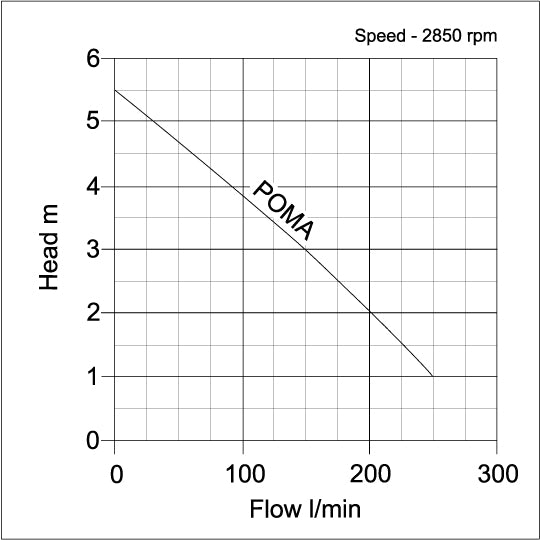

PERFORMANCE CURVE
SPECIFICATIONS

POMA4

Item CodeModelVolt (V)Domestic / IndustrialOutlet (BSPF/mm)kWFlow (l/min)Head (metres)Free Passage (mm)WxLxH (mm)On Level (mm)Off Level (mm)Dry weight (kg)
10-10-1257POMA4 (Auto)110VIndustrial2" 0.151905.735183x225x3542851006.6
10-10-1072POMA4 (Auto)230VIndustrial2" 0.151905.735183x225x3552851006.6
10-10-1179POMA4 (Auto)230VDomestic500.151905.735183x225x3562851006.6

model

w X l X h (mm)

POMA4

183x225x354
