POLY Self Priming Centrifugal Pumps

Description

The Poly series are self-priming centrifugal pumps for the transfer of non-abrasive, but aggressive, liquids that would normally damage the components found in conventional engine driven pumps. The standard EPDM models will handle most detergents, many agricultural chemicals* and salt/sea wat...

TECHNICAL DATA

  • Inlet (mm): 50 - 75
  • Outlet (mm): 50 - 75
  • Fuel: Petrol & Diesel
  • HP: 4.3 - 5.5
  • Flow (l/min): 870 - 984
  • Head (m): 25
Skip to product information
1 of 4
Regular price £1,169.00 GBP
Regular price Sale price £1,169.00 GBP
Sale Sold out
Excluding VAT
View full details

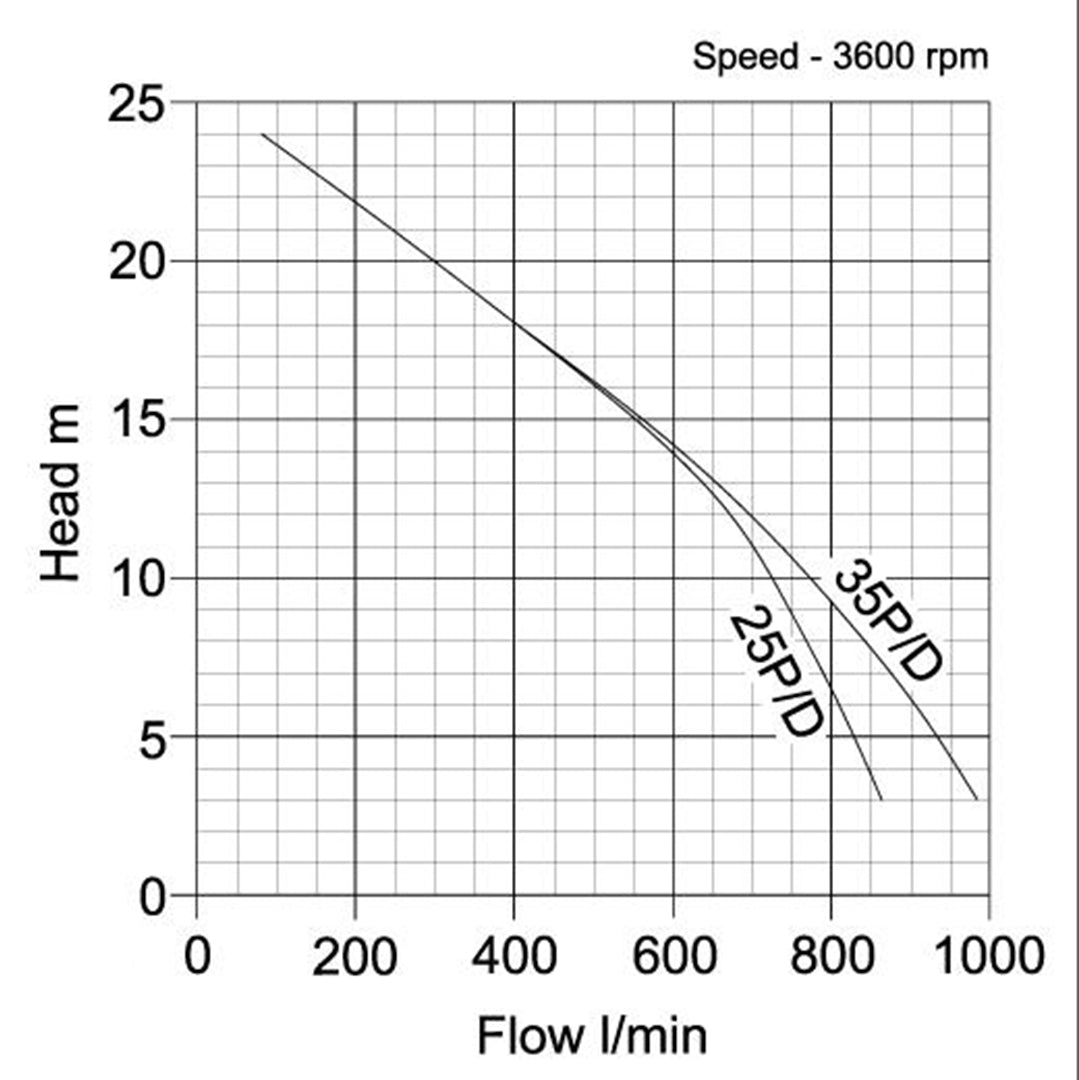

PERFORMANCE CURVE
SPECIFICATIONS

25 P

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
12-20-100225 P5050GX160Petrol5.5Yes8702540060056033.8

35 P

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
12-20-100535 P8080GX160Petrol 5.5Yes9842540060056035

25 D

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
12-20-100625 D5050L48Diesel 4.8n/a8702540060056050

35 D

Item CodeModelInlet (mm)Outlet (mm)EngineFuelHPOil AlertFlow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
12-20-100035 D8080L48Diesel 4.8n/a9842540060056052

model

w X l X h (mm)

POLY

400x600x560
