Optional Connection: Auto Couplings

Description

For raising and lowering the pump without emptying the chamber, to ease inspection and maintenance.

TECHNICAL DATA

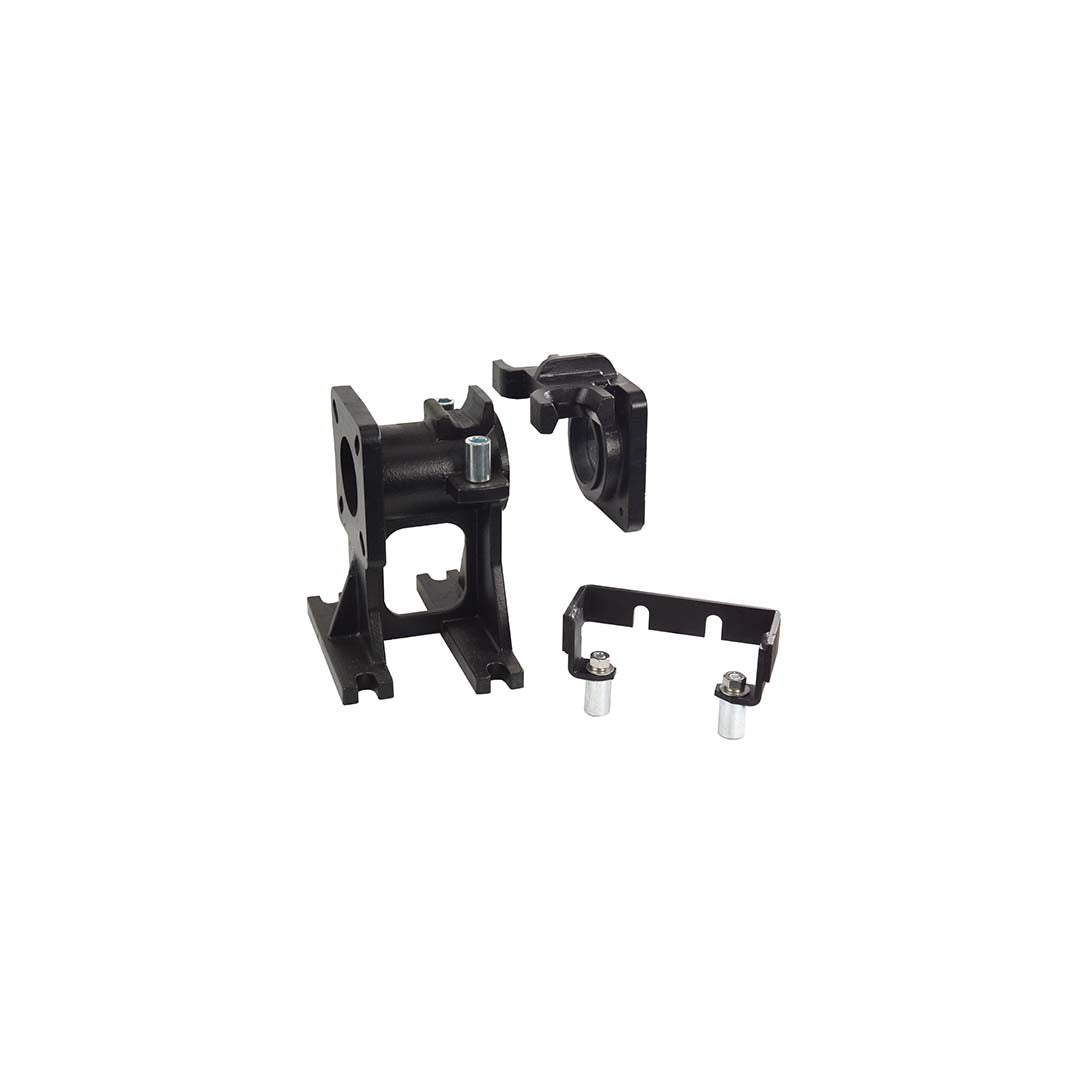

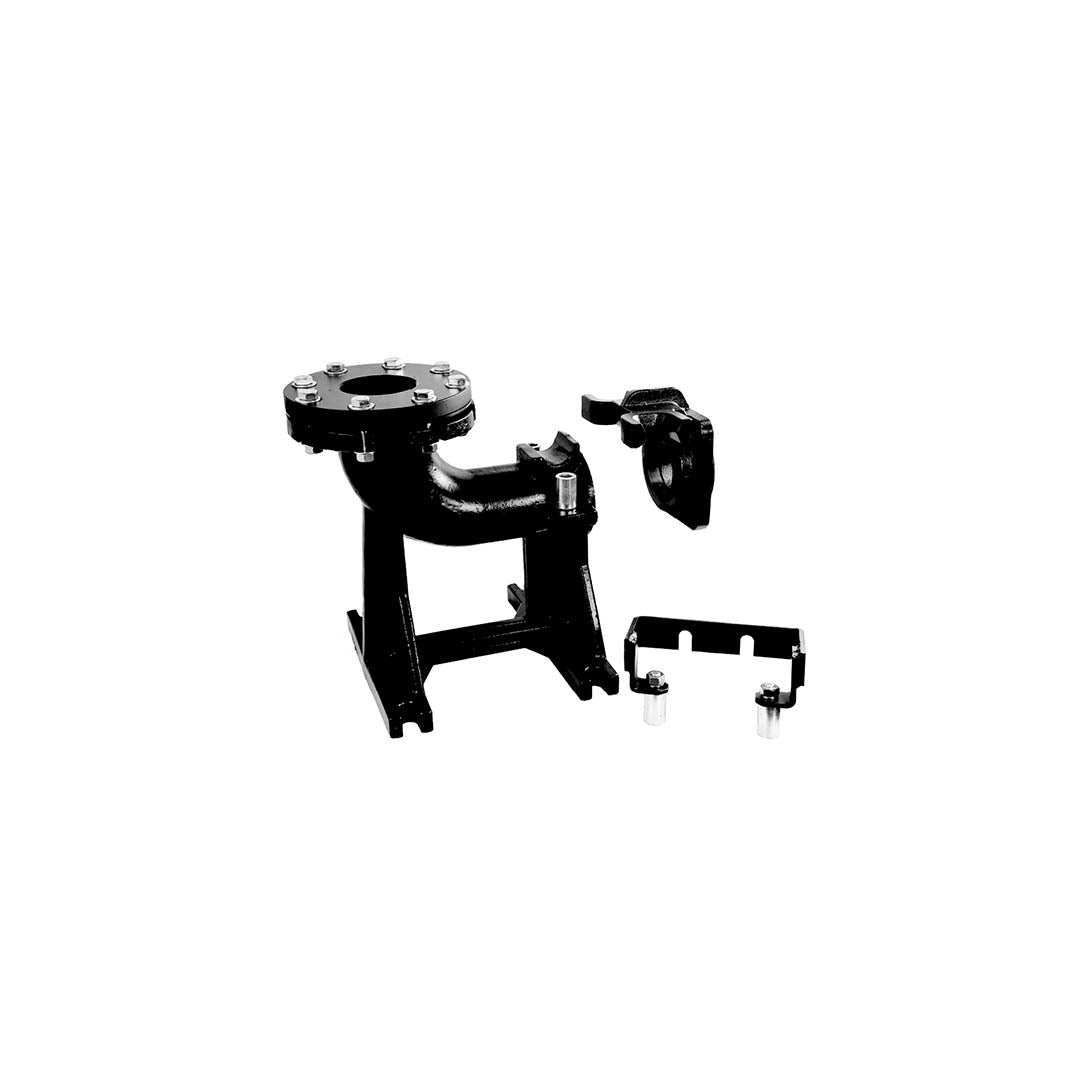

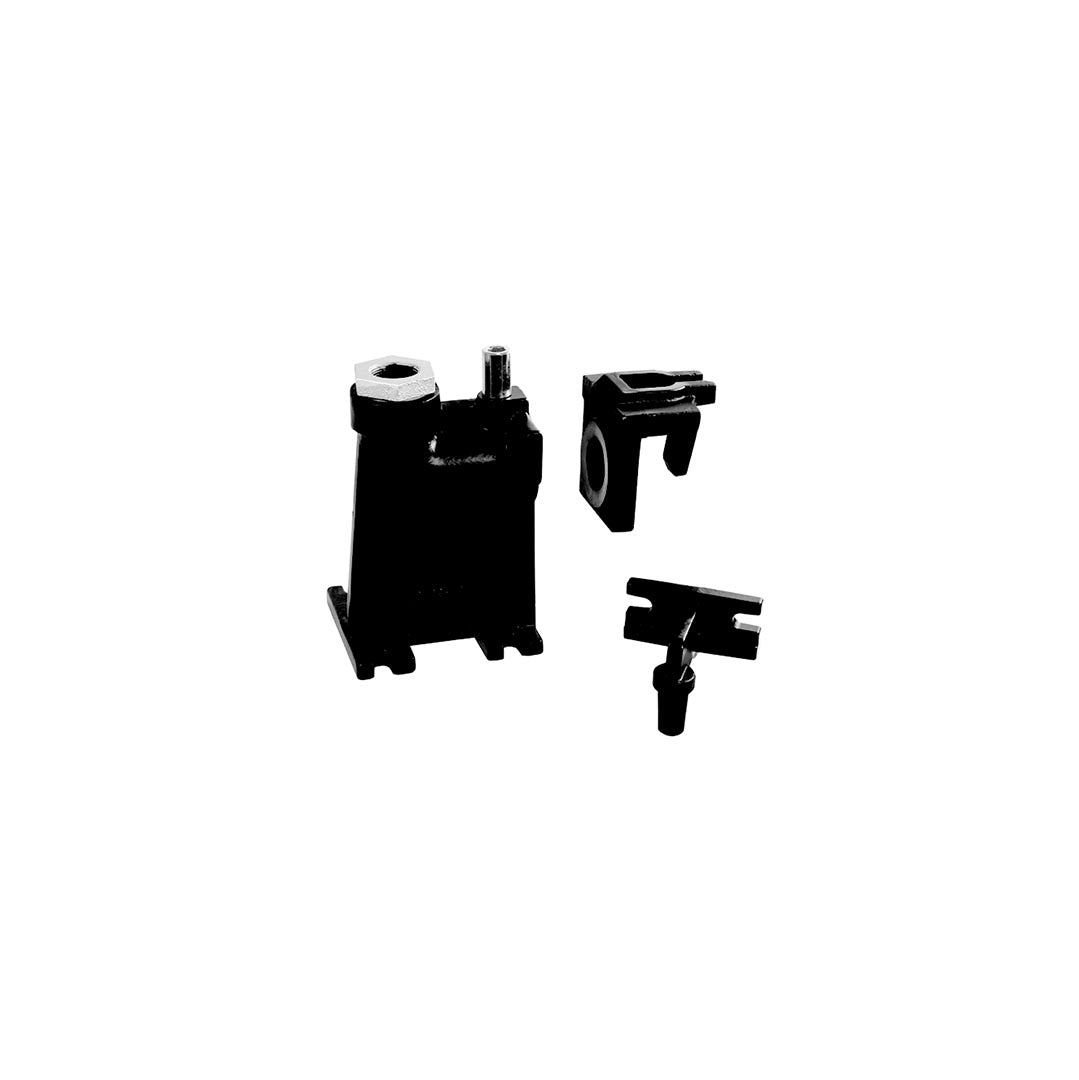

Set comprises of: guide support, guide hook, duck-foot bend, female BSP outlet flange, with fixings & gaskets to join and seal the flanges. Single (TOS-G1) & dual rail installation. *TOS-X3 has a horizontal duck-foot to enable the elbow (& the fixings) from the pump to be utilised & not discarded. Alternative to TOS-L3 & TOS-L4.

1 3
£147.00 GBP
£147.00 GBP
Sale Sold out
Excluding VAT
View full details
SPECIFICATIONS

Auto Couplings

item code

rails

qty x ø

type

(outlet, FBSP)

15-85-1006

1 x DN25

TOS-G1(1¼ )

15-85-1009

2 x DN25

TOS-50H (2" )

15-85-1001

2 x DN25

TOS-SGH (2")

15-85-1003

2 x DN25

TOS-G3 (2½")

15-85-1004

2 x DN25

TOS-S3 (3")

15-85-1008

2 x DN25

TOS-X3* (3")

15-85-1000

2 x DN25

TOS-L3 (3")

15-85-1002

2 x DN25

TOS-L4 (4")

15-85-1007

2 x DN40

TOS-X4 (4")

model

w X l X h (mm)
