Image from Product Description

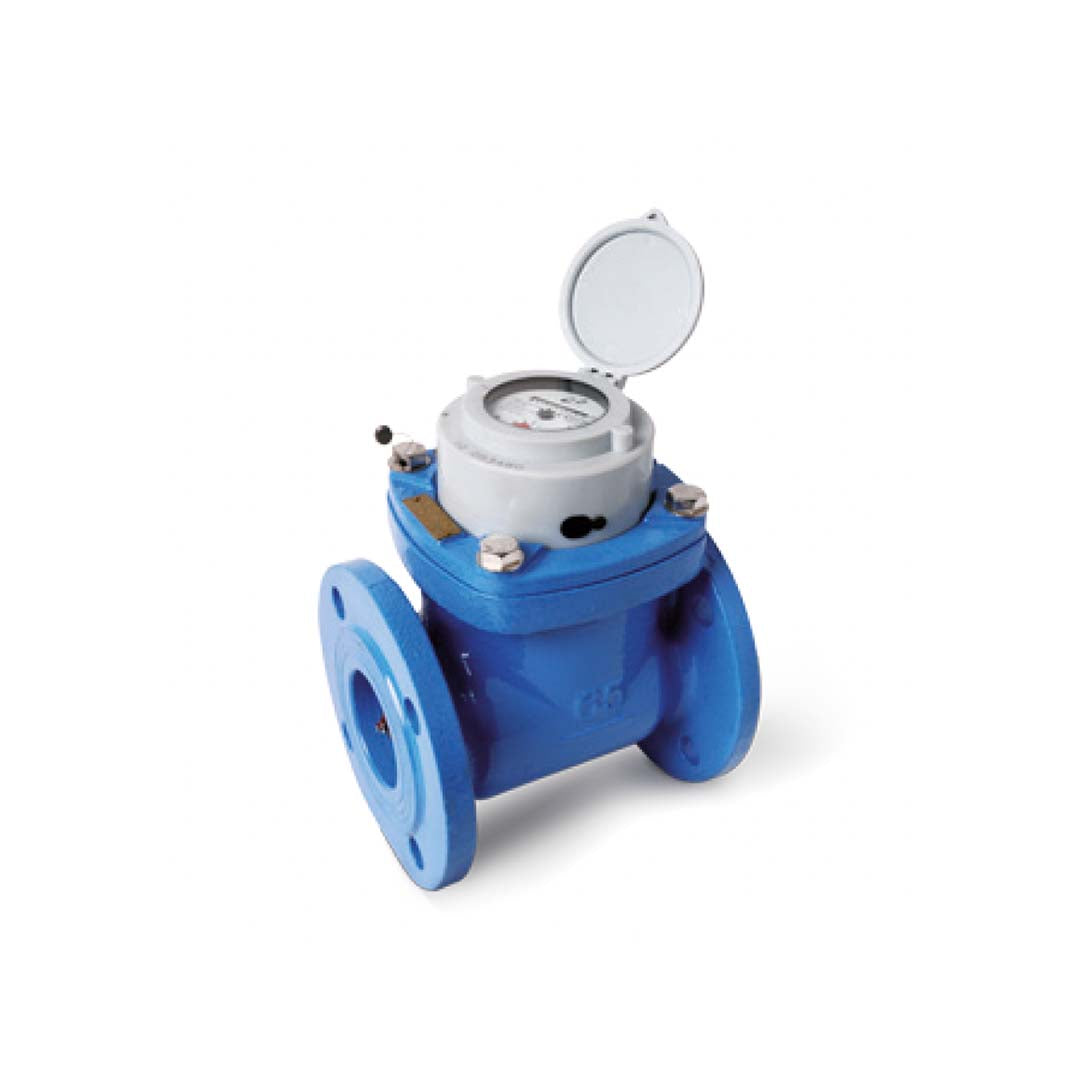

Omega Water Meters Wras Approved


The Omega is designed for metering of potable cold-water and water that contains some small solids. It is suitable for water distribution and industrial applications, where low flow rates occur, and pipes may not be completely filled. Straight reading on rollers, orientable “copper can” dry-dial...


  • Bore (BSPM/flange): 50-DN50 - 200-DN200
  • Max flow (m³/hr): 50 - 500
  • Continuous (m³/hr): 40 - 400
  • Min flow (ltr/hour): 500 - 5,000
  • Helix turbine turbine
  • 1 Temperature class: T30/T50.
  • 16 bar working pressure.
  • Pulse output available.
  • WRAS Approved Number 1303344.
Skip to product information
1 of 1
Regular price £393.00 GBP
Regular price Sale price £393.00 GBP
Sale Sold out
Excluding VAT
View full details

Omega Water Meters

Item CodeModelbore (BSPM/flange)max flow (m³/hr)continuous (m³/hr)min flow (ltr/hr)length (mm)
12-40-1009OMEGA 5050-DN505040500200
12-40-1007OMEGA 8080-DN807963788225
12-40-1015OMEGA 100100-DN1001251001250250
12-40-1019OMEGA 150150-DN1503132503125300
12-40-1018OMEGA 200 200-DN2005004005000350


w X l X h (mm)
