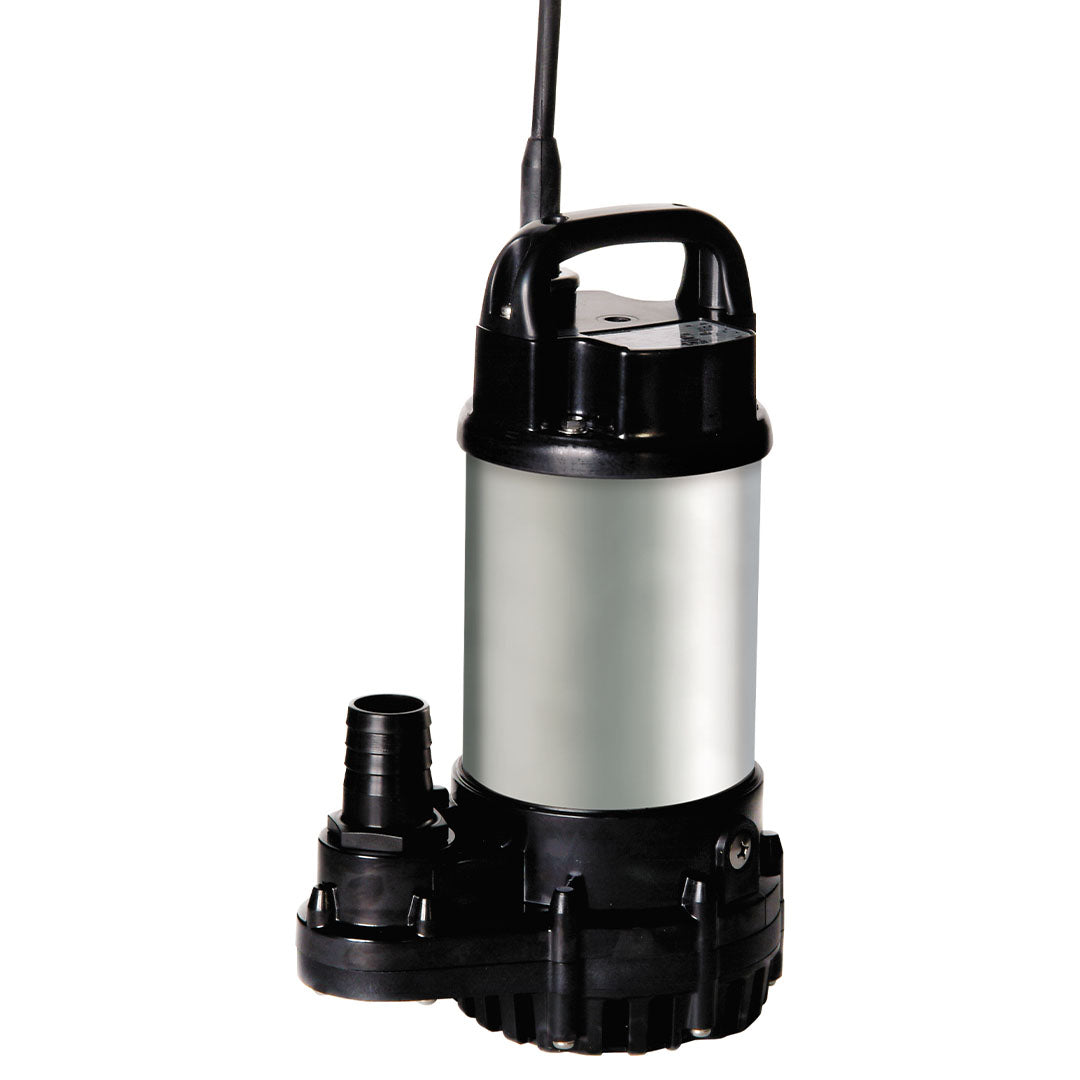

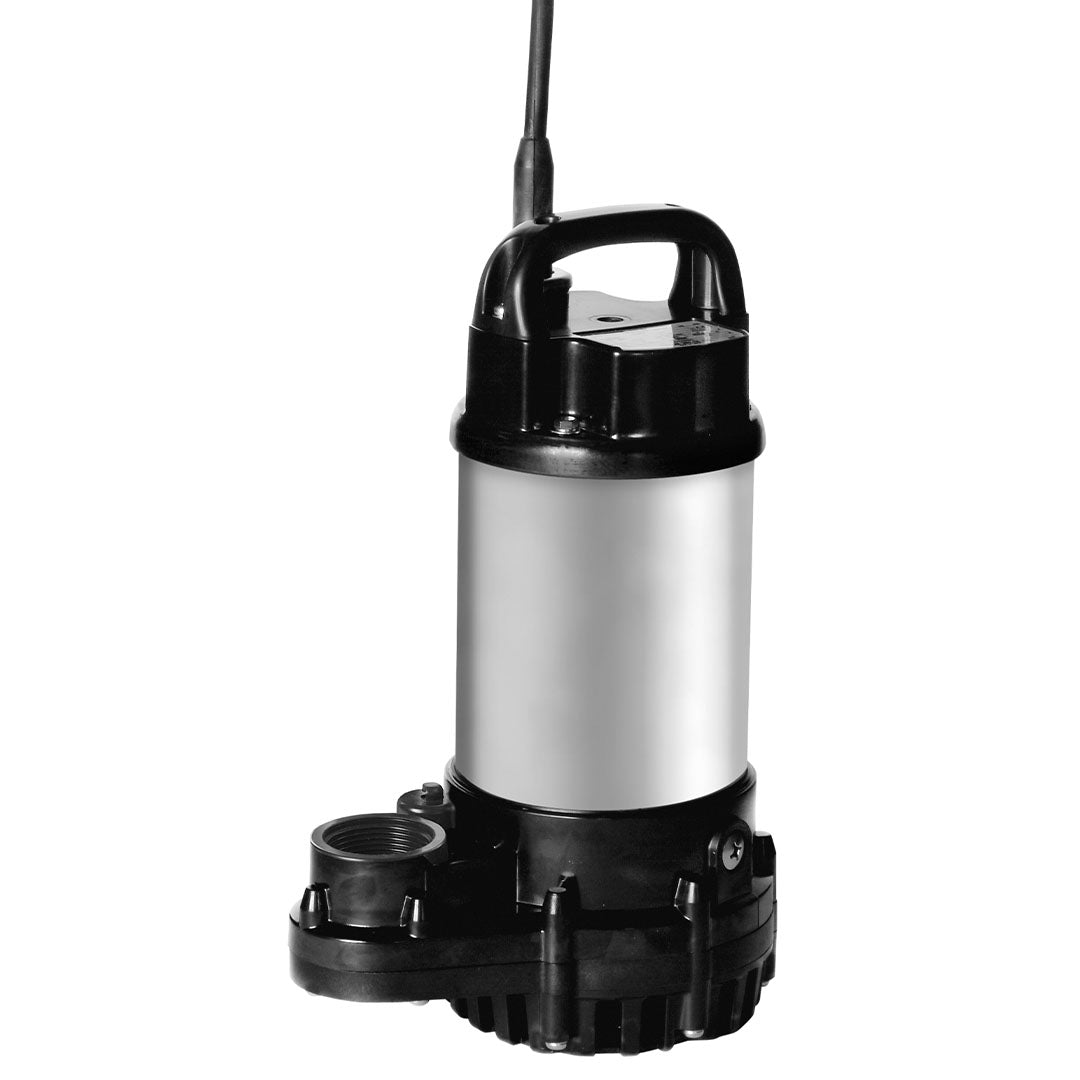

OM3 Submersible Drainage Water Pumps

Description

The OM pumps are light, compact, have energy efficient motors and integral anti-airlock valves. Available as manual. Liquid paraffin is used for the lubrication oil, which enables use in food processing and aquaculture. They are not recommended for ponds or water features. Users of 230 volts hav...

TECHNICAL DATA

  • Outlet (BSPF/mm): 1¼” / 32
  • Motor output (kW): 0.15
  • Max head (m): 7.5
  • Phases: 1
  • Max flow (I/min): 195
  • Free passage (mm): 10
Skip to product information
1 of 3
Regular price £353.00 GBP
Regular price Sale price £353.00 GBP
Sale Sold out
Excluding VAT
View full details

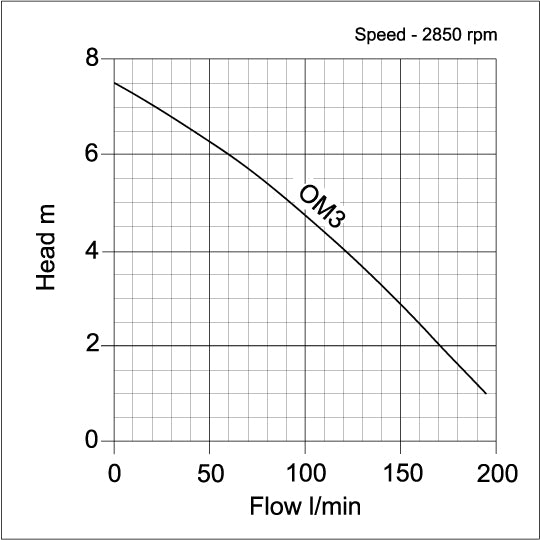

PERFORMANCE CURVE
SPECIFICATIONS

OM3

Item CodeModelOutlet (mm)Volt (v)Domestic/ IndustrialkWFlow (l/min)Head (mtrs)Free Passage (mm)WxLxH (mm)Dry weight (kg)
10-10-1201OM31¼" BSPF110VIndustrial0.151957.510140x203x3165.9
10-10-1051OM3 1¼" BSPF230VIndustrial0.151957.510140x203x3165.9
10-10-1183OM3 32230VDomestic0.151957.510140x203x3165.9

model

w X l X h (mm)

OM3

140x203x316
