No Mount Pressure Vessels

Description

Pressure vessels are approved by the Water Regulations Advisory Scheme (WRAS). They have membranes, manufactured to BS EN 13831, inside an epoxy powder coated steel, exterior, for hot and cold sanitary water circuits, pressurising systems, heating systems and refrigeration circuits. Membranes ...

TECHNICAL DATA

  • Capacity (litres): 2 - 24
  • Working pressure (bar): 8 - 16
  • Main connection (mbsp gas): 1/2" - 1"

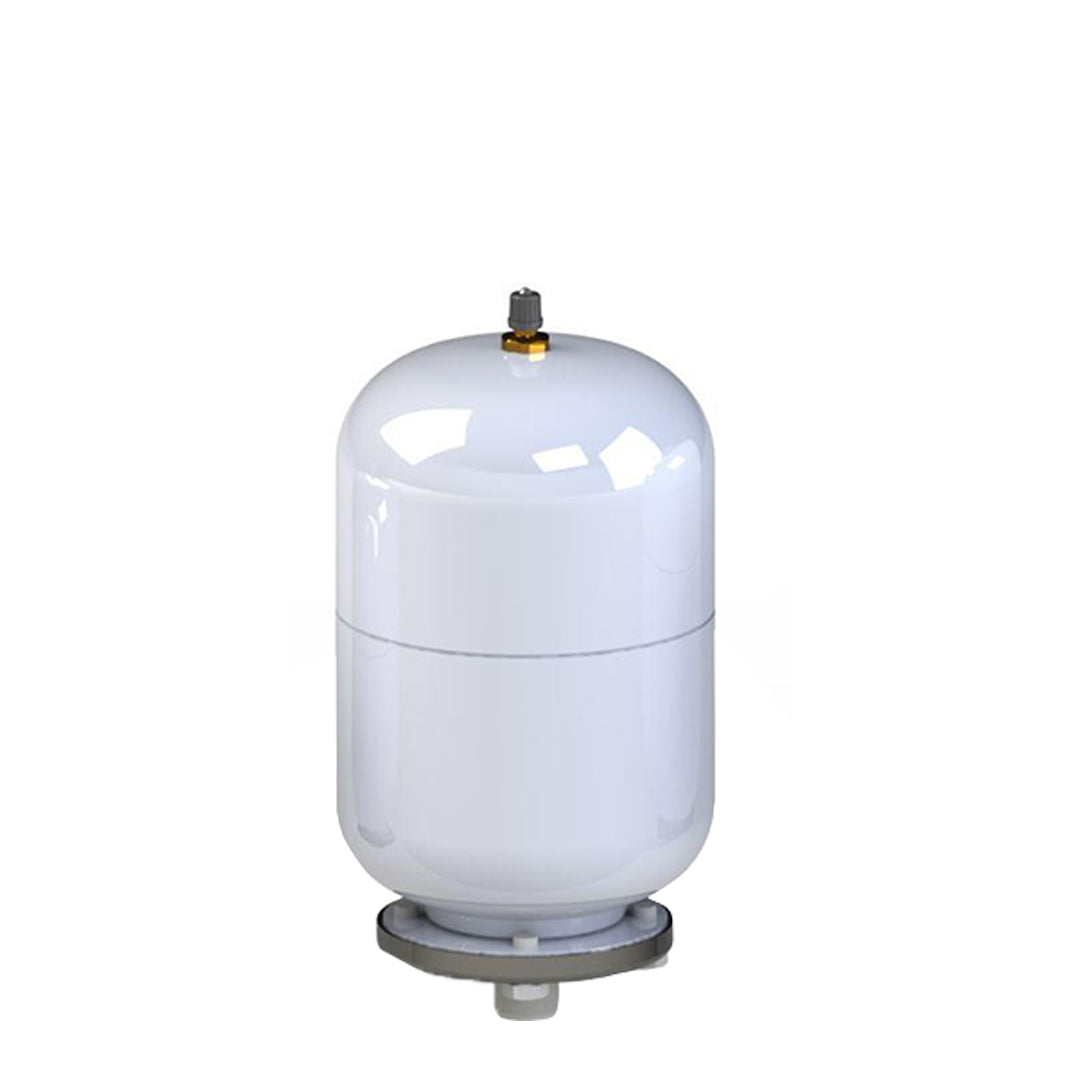

  • Obart Select ACS2 - CIMM No Mount Pressure Vessels

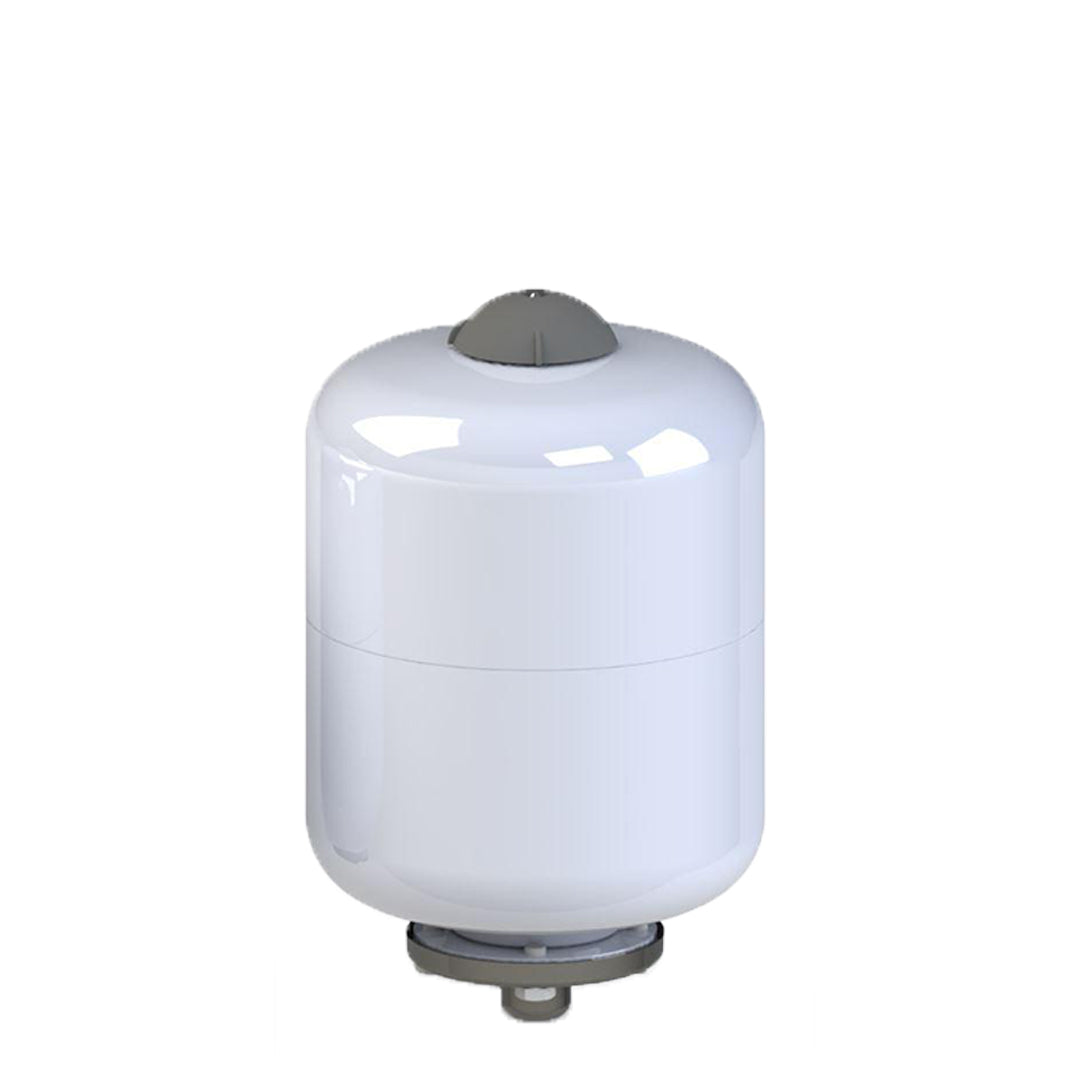

  • Obart Select CIMM No Mount Pressure Vessels- pressure kit

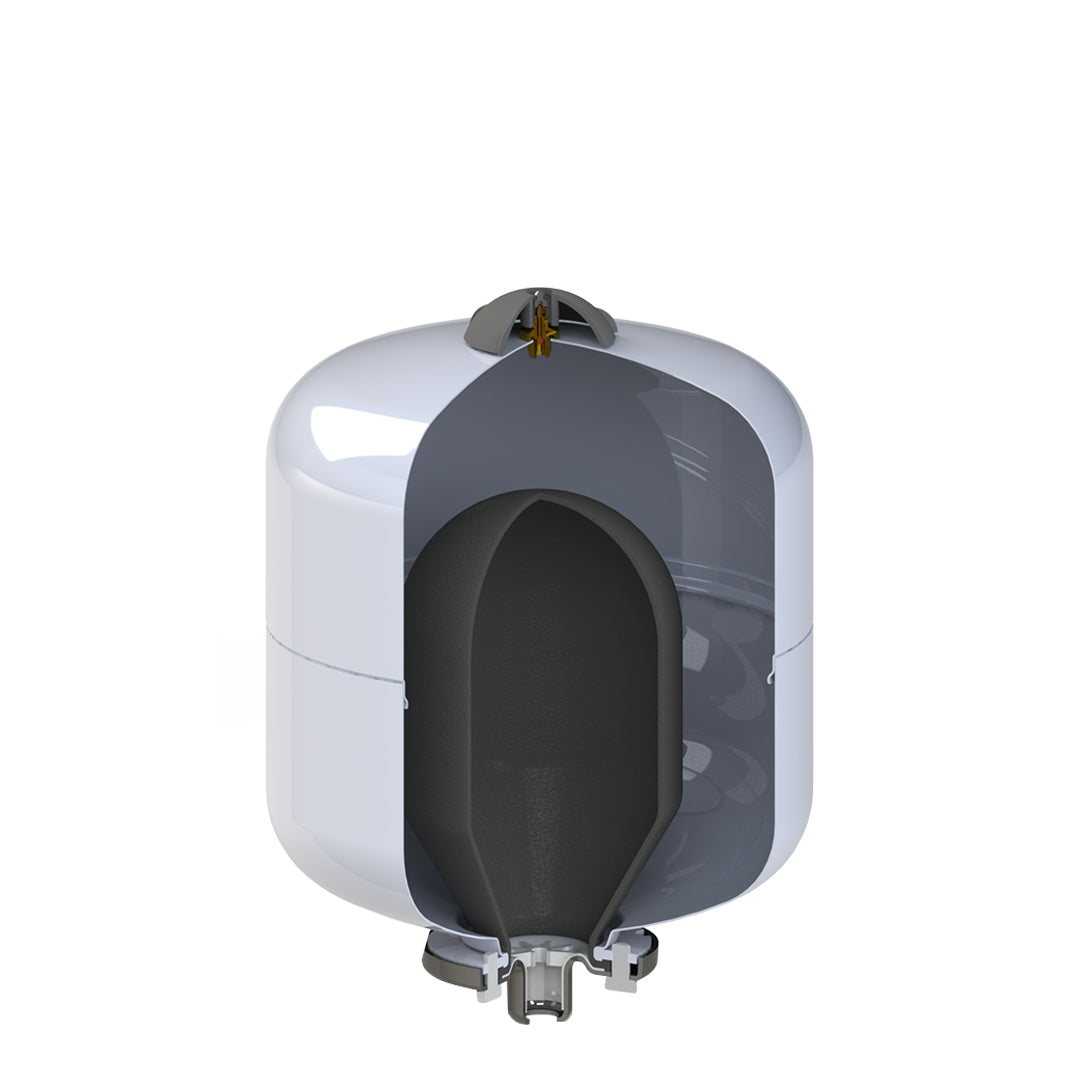

  • Obart Select CIMM No Mount Pressure Vessels- pressure washer cut out

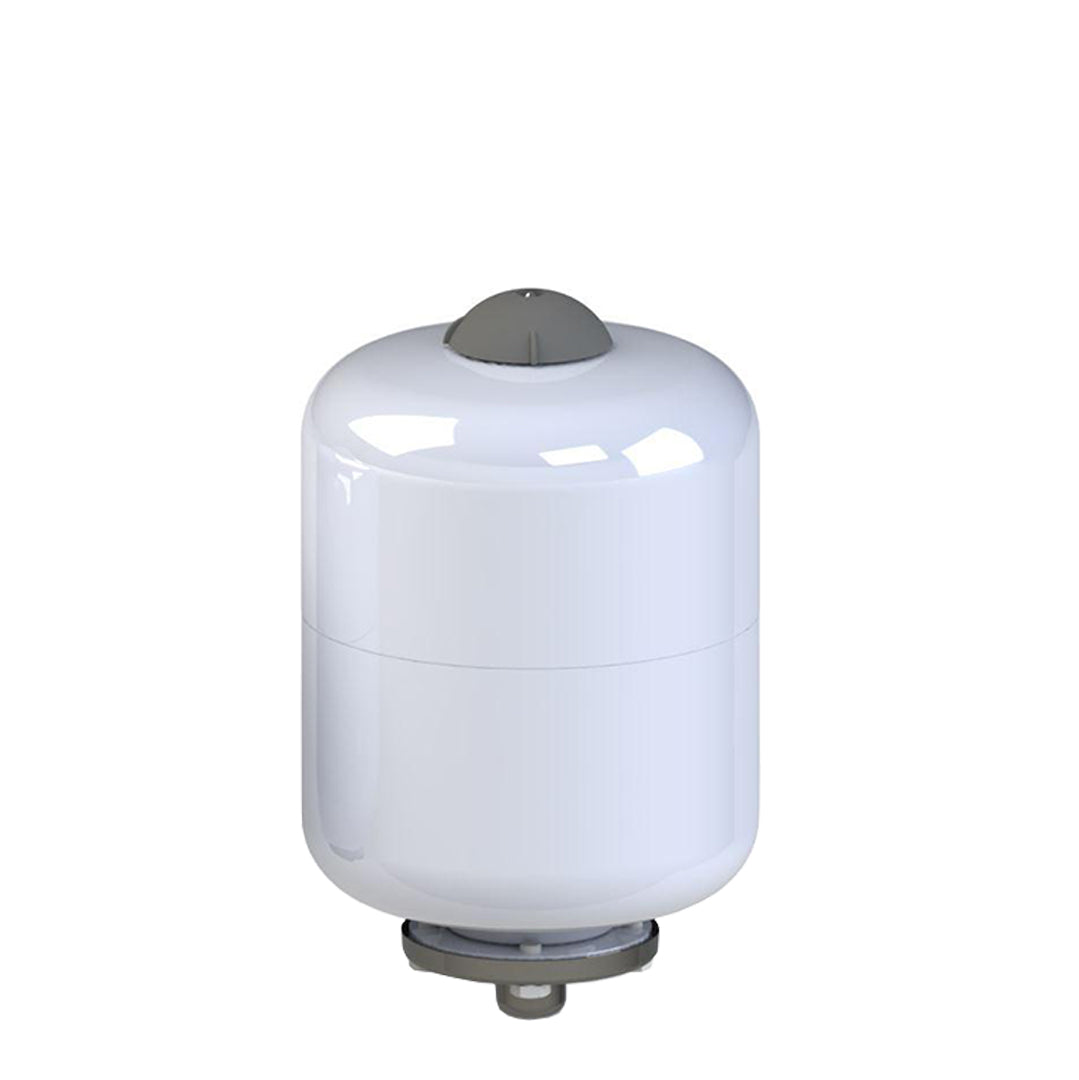

  • Obart Select ACS5 - CIMM No Mount Pressure Vessels

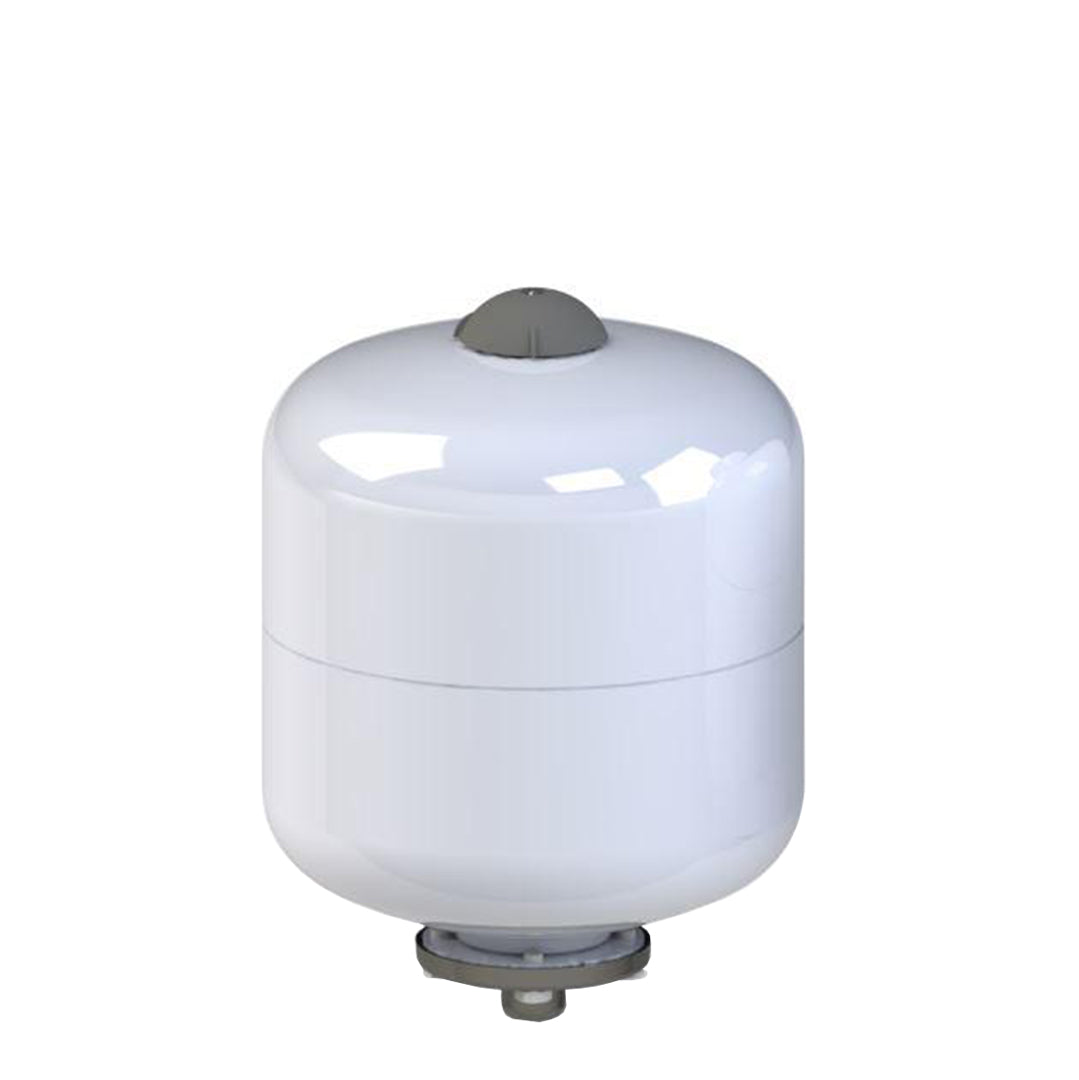

  • Obart Select ACSCE8 - CIMM No Mount Pressure Vessels

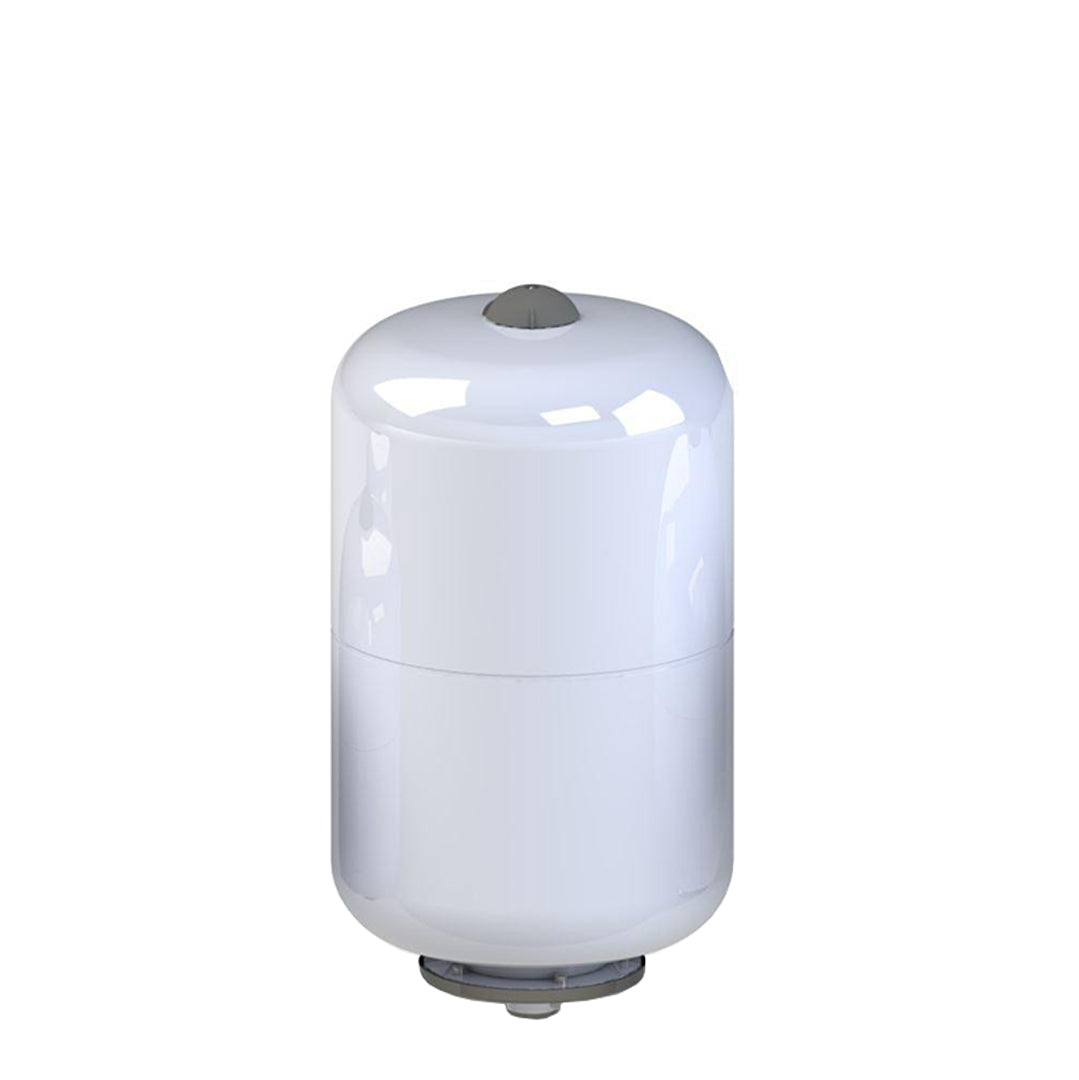

  • Obart Select ACSCE24 - CIMM No Mount Pressure Vessels

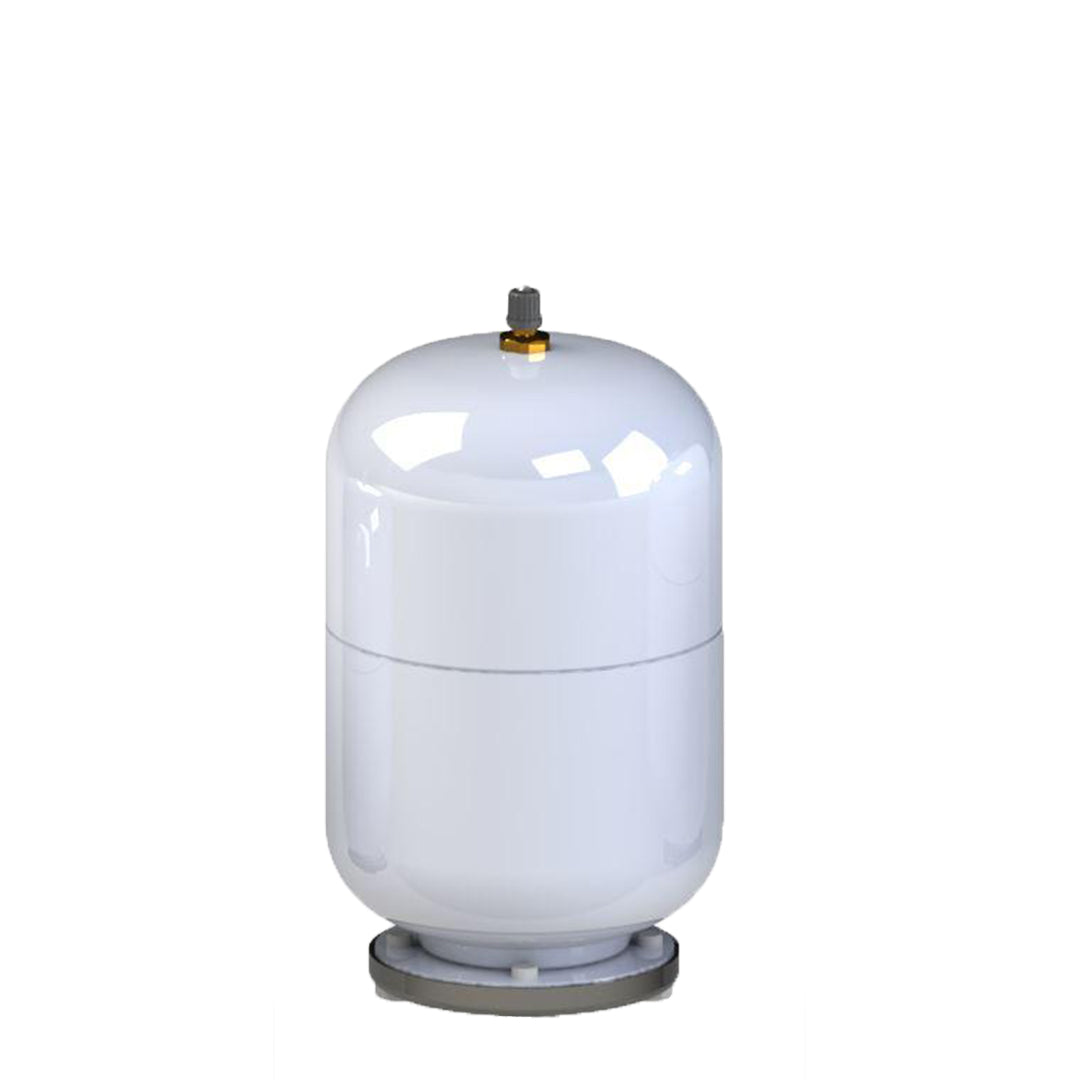

  • Obart Select CIMM No Mount Pressure Vessels- No mount pressure kit

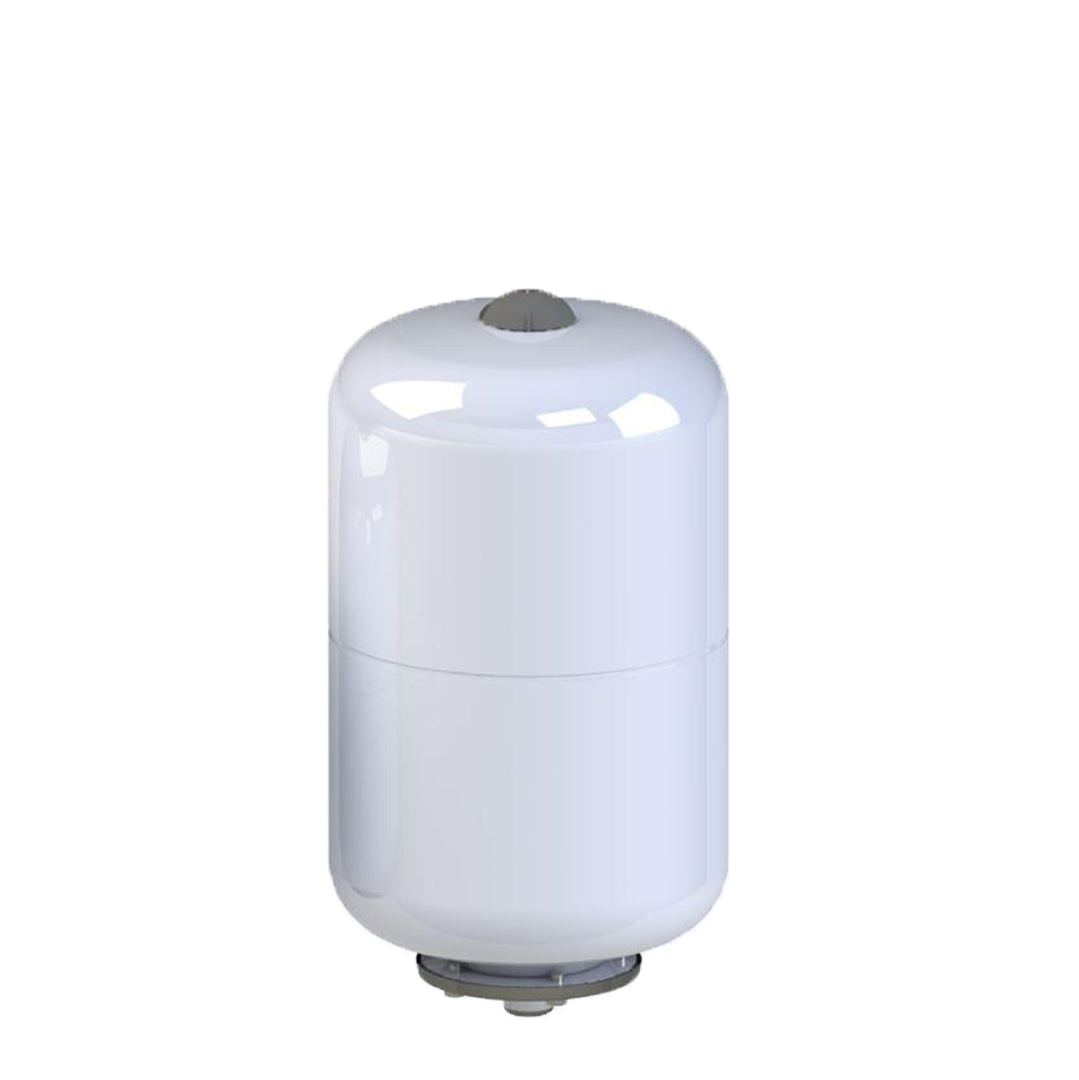

  • Obart Select AFC/CARCE24 - CIMM No Mount Pressure Vessels
1 8
£30.00 GBP
£30.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Obart Select ACS2 - CIMM No Mount Pressure Vessels
  • Obart Select CIMM No Mount Pressure Vessels- pressure kit
  • Obart Select CIMM No Mount Pressure Vessels- pressure washer cut out
  • Obart Select ACS5 - CIMM No Mount Pressure Vessels
  • Obart Select ACSCE8 - CIMM No Mount Pressure Vessels
  • Obart Select ACSCE24 - CIMM No Mount Pressure Vessels
  • Obart Select CIMM No Mount Pressure Vessels- No mount pressure kit
  • Obart Select AFC/CARCE24 - CIMM No Mount Pressure Vessels
SPECIFICATIONS

Specifications

Item Code

Model

Capacity (ltrs)

Diameter (MM)

Height (MM)

Water entry connection

Maximum working pressure (BAR)

23-40-1014

ACS 2

2

120

240

M 1/2” Gas

10,0

23-40-1004

ACS 5

5

170

275

M 3/4” Gas

10,0

23-40-1008

ACS CE 8

8

220

305

M 3/4” Gas

8,0

23-40-1001

ACS CE 24

24

260

490

M 1” Gas

8,0

23-40-1009

AFC/CAR CE 24

24

265

490

M 3/4” Gas

16,0

model

w X l X h (mm)
