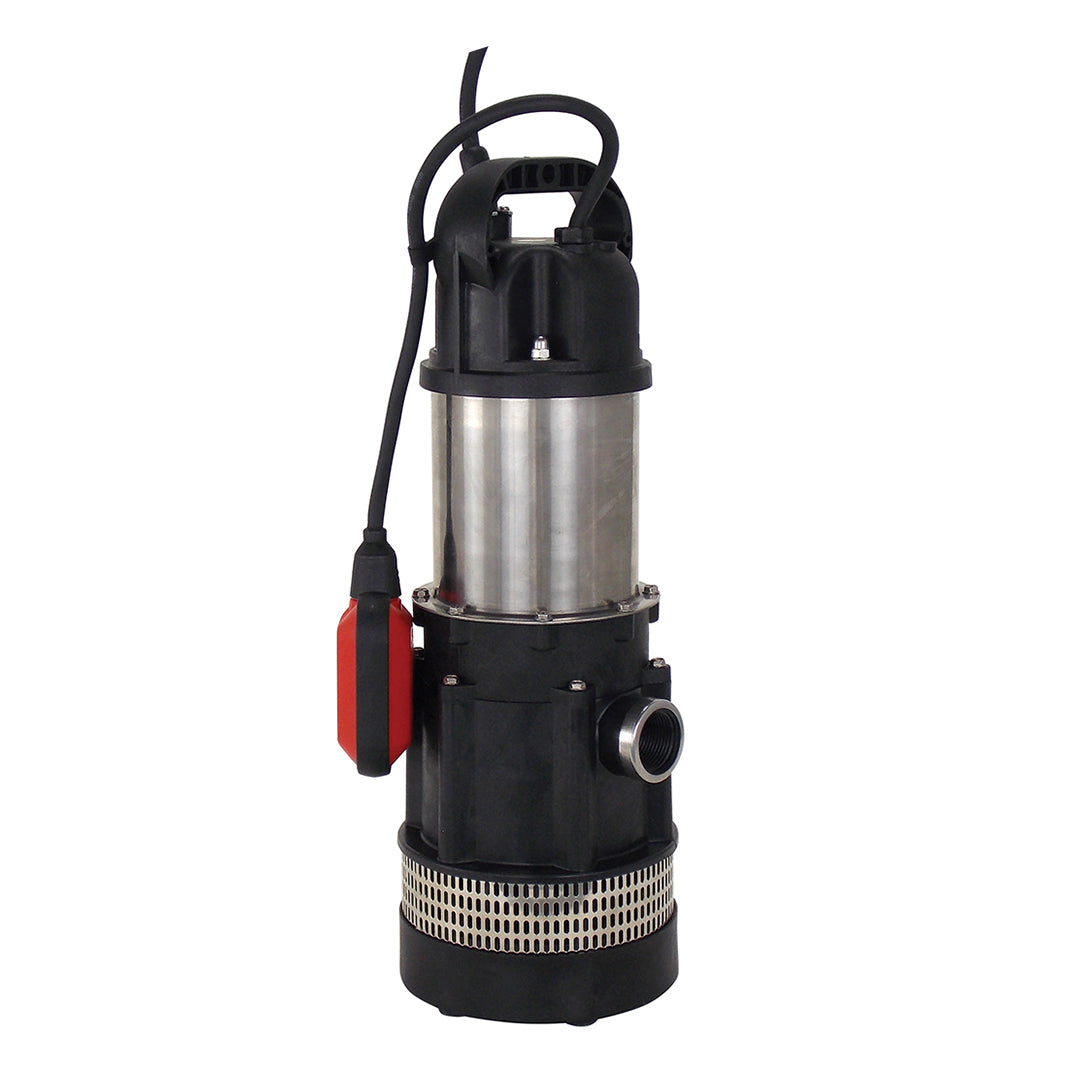

MVH-10A Submersible Irrigation Pump

Description

The MVH-10A is a multi-stage pump with a level control float switch for high pressure pumping. It has an integral starting capacitor. It is lubricated and cooled by non-toxic oil. It is not recommended for operation against the closed valve of a tap or a nozzle, nor suitable for ponds or water...

TECHNICAL DATA

  • Outlet (FBSP): 1"
  • Motor output (kW): 0.55
  • Max head (m): 32
  • Phases: 1
  • Max flow (I/min): 110
  • Well size (mm): 435+
Skip to product information
1 of 3
Regular price £338.00 GBP
Regular price Sale price £338.00 GBP
Sale Sold out
Excluding VAT
View full details
PERFORMANCE CURVE
SPECIFICATIONS

MVH-10A

Item CodeModelOutlet (FBSP)kWVolt (v)Flow (l/min)Head (mtrs)WxLxH (mm)Dry weight (kg)
15-10-1038MVH-10A (Auto)1"0.5523011032162x171x4619.3

model

w X l X h (mm)

MVH-10A

162x171x461
