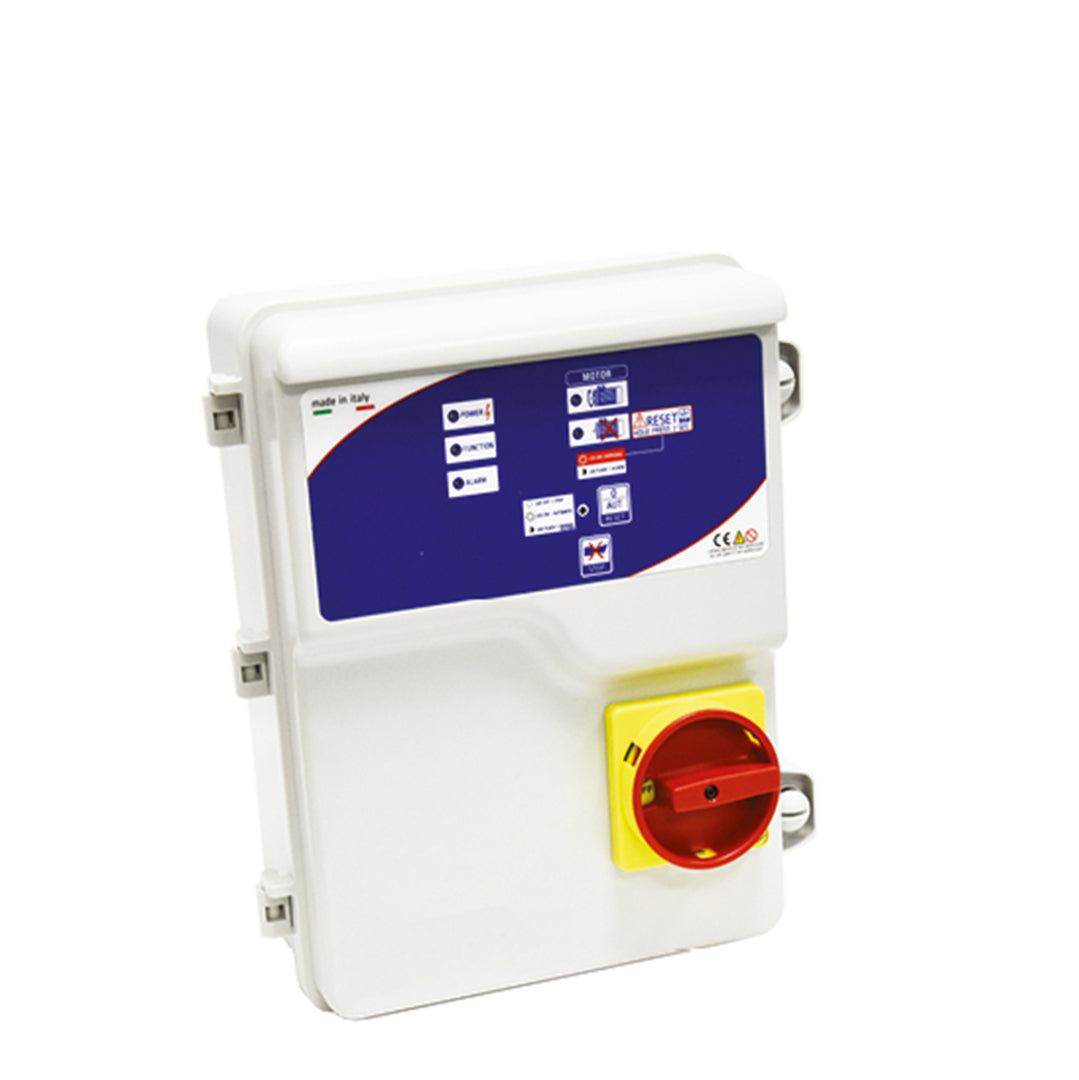

MULTI 2 Thermoplastic

Description

Multi 2 are electronic panels to control single or twin pumps (single or three phase), with enclosures in metal or thermoplastic. Both enclosures feature lateral door hinges (for hands free use), external fixing (no need to drill the enclosure) and are IP55. The closing system on thermoplastic e...

TECHNICAL DATA

  • Adjustable overloads
  • Low voltage transformers
  • Operation with float switches, pressure switches & probes
  • Hand/off/auto switches
  • Input for float activated audible alarm,
  • Maximum current protection with alarm
  • Minimum and maximum voltage protection with automatic reset and alarm
  • Lack and sequence of phases protection with automatic reset and alarm
  • Motor klixon overload protection with automatic reset and alarm
  • Provision for start up capacitor
  • Siren silencing button
  • N°2 alarm outputs 12V DC max 200mA for siren and flashing Led lamp
  • Alarm output max 5A NC-COM-NO (volt free)
  • Auto changeover
  • Obart Select MULTI 2 Thermoplastic -Electronic Panel
1 1
£212.00 GBP
£212.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Obart Select MULTI 2 Thermoplastic -Electronic Panel
SPECIFICATIONS

Multi 2

Item CodeModelEnclosure materialCurrent/PH - volt (v)Motor power range (kW)Motor current range (amps)Single or Twin pump controlAudio AlarmVisual AlarmWxLxH (mm)
16-40-1021MULTI 2-P-230PLASTIC1-2300.37 - 2.22-18TWINNONO285x245x140
16-40-1022MULTI 2-P-230VAPLASTIC1-2300.37 - 2.22-18TWINYESYES285x245x140
16-40-1025MULTI 2-P-400-10PLASTIC3-4002.2 - 110.5-16TWINNONO285x245x140
16-40-1026MULTI 2-P-400-10VAPLASTIC3-4000.37 - 7.50.5-16TWINYESYES285x245x140
16-40-1027MULTI 2-P-400-15PLASTIC3-4000.37 - 7.54-25TWINNONO380x300x150
16-40-1028MULTI 2-P-400-15VAPLASTIC3-4002.2 - 114-25TWINYESYES380x300x150

model

w X l X h (mm)

MULTI 2-P-230

285x245x140

MULTI 2-P-400-10

285x245x140

MULTI 2-P-400-15

380x300x150
