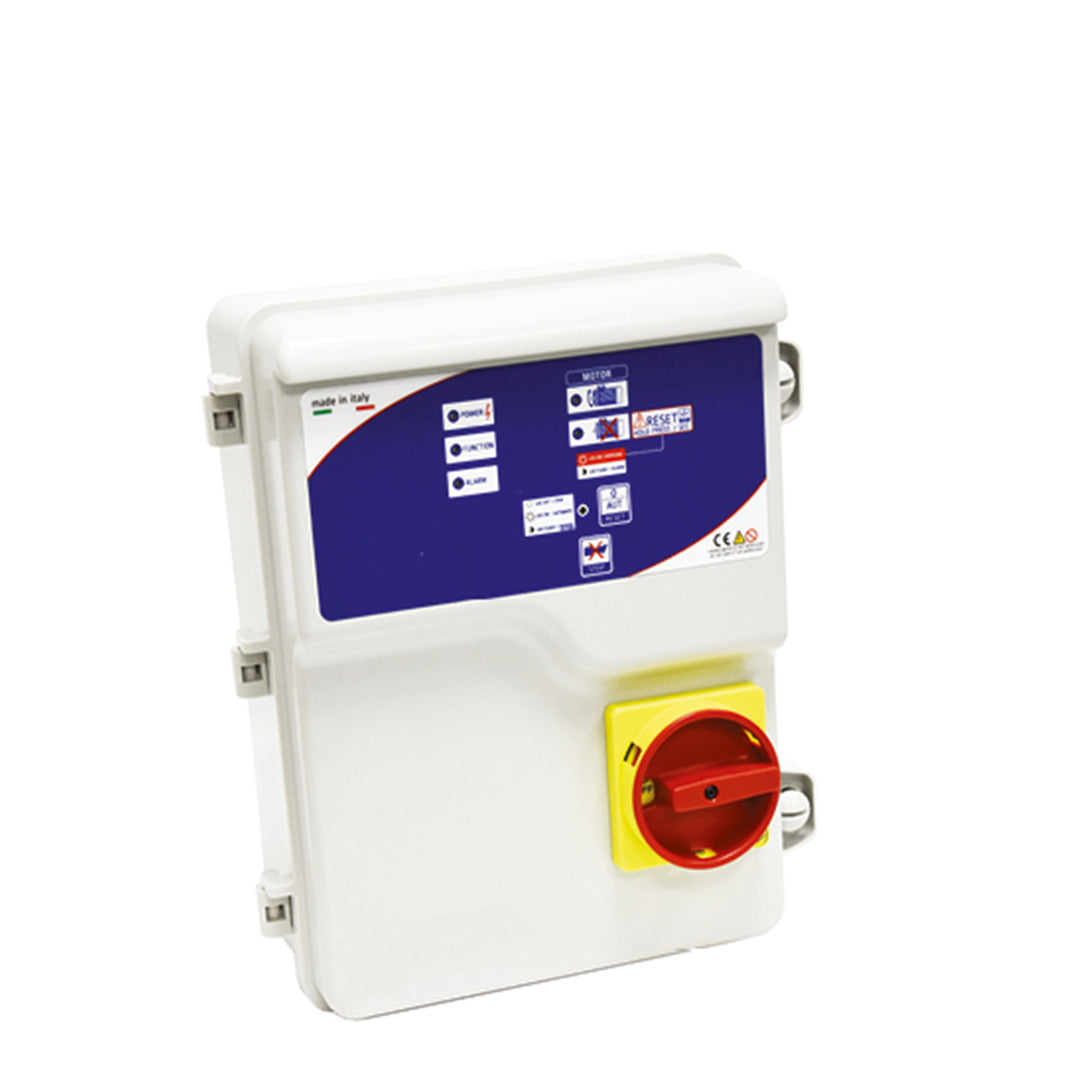

MULTI 1 Thermoplastic


The Multi 1 are electronic panels for single pump control (single or three phase), with enclosures in metal or thermoplastic. Both enclosures feature lateral door hinges (for hands free use), external fixing (no need to drill the enclosure) and are IP55. The closing system on thermoplastic en...


  • Adjustable overloads
  • Low voltage transformers
  • Operation with float switches, pressure switches & probes
  • Hand/off/auto switches
  • Input for float activated audible alarm,
  • Maximum current protection with alarm
  • Minimum and maximum voltage protection with automatic reset and alarm
  • Lack and sequence of phases protection with automatic reset and alarm
  • Motor klixon overload protection with automatic reset and alarm
  • Provision for start up capacitor
  • Siren silencing button
  • N°2 alarm outputs 12V DC max 200mA for siren and flashing Led lamp
  • Alarm output max 5A NC-COM-NO (volt free)
Skip to product information
1 of 1
Regular price £185.00 GBP
Regular price Sale price £185.00 GBP
Sale Sold out
Excluding VAT
View full details

Multi 1 Thermoplastic

Item CodeModelEnclosure materialCurrent/PH - volt (v)Motor power range (kW)Motor current range (amps)Single or Twin pump controlAudio AlarmVisual AlarmWxLxH (mm)
16-40-1019MULTI 1-P-110PLASTIC1-1100.37 - 1.12-18SINGLENONO285x245x140
16-40-1020MULTI 1-P-230PLASTIC1-2300.37 - 2.22-18SINGLENONO285x245x140
16-40-1023MULTI 1-P-400-10PLASTIC3-4000.37 - 2.20.5-16SINGLENONO285x245x140
16-40-1024MULTI 1-P-400-15PLASTIC3-4000.37 - 7.54-25SINGLENONO345x285x165


w X l X h (mm)



MULTI 1-P-400-15
