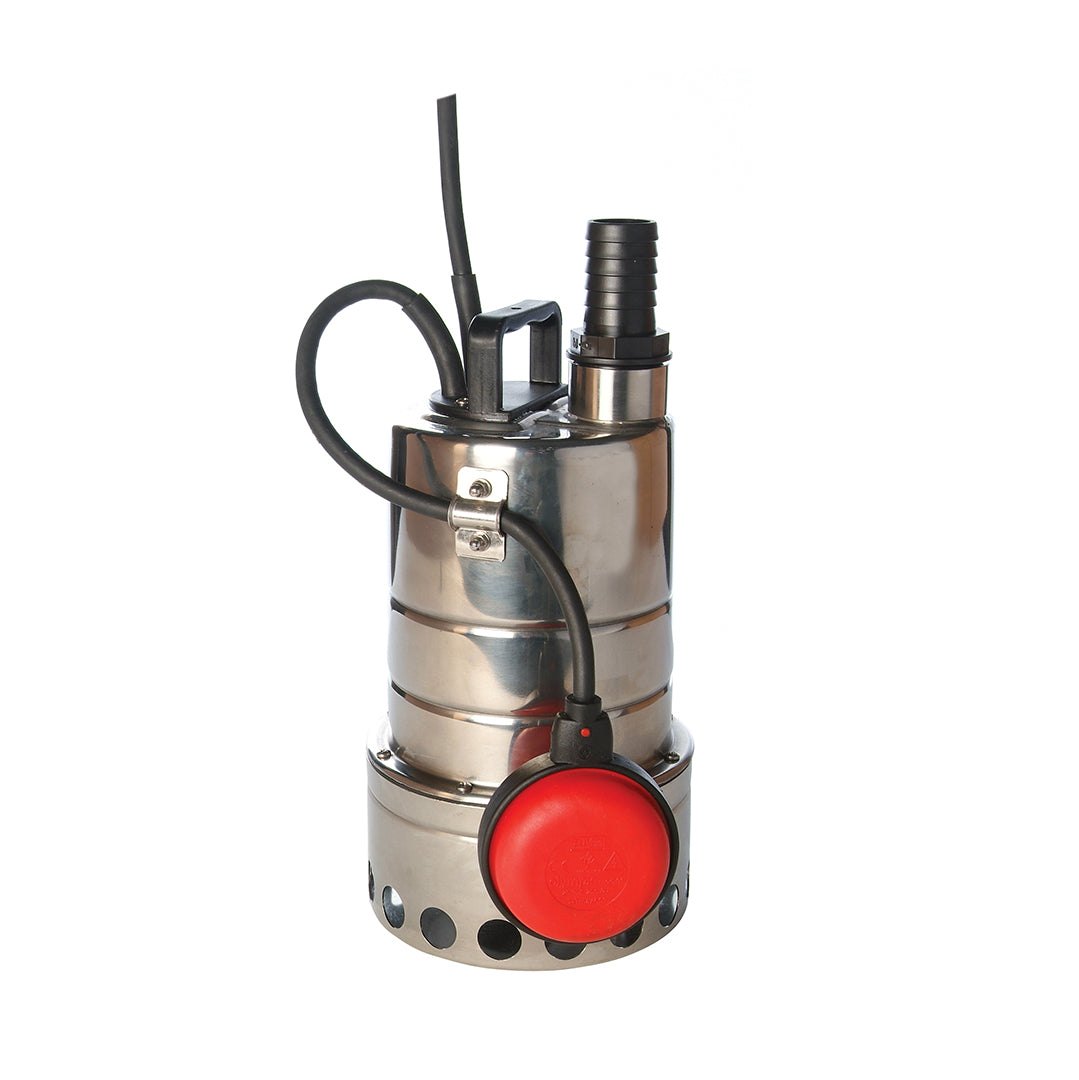

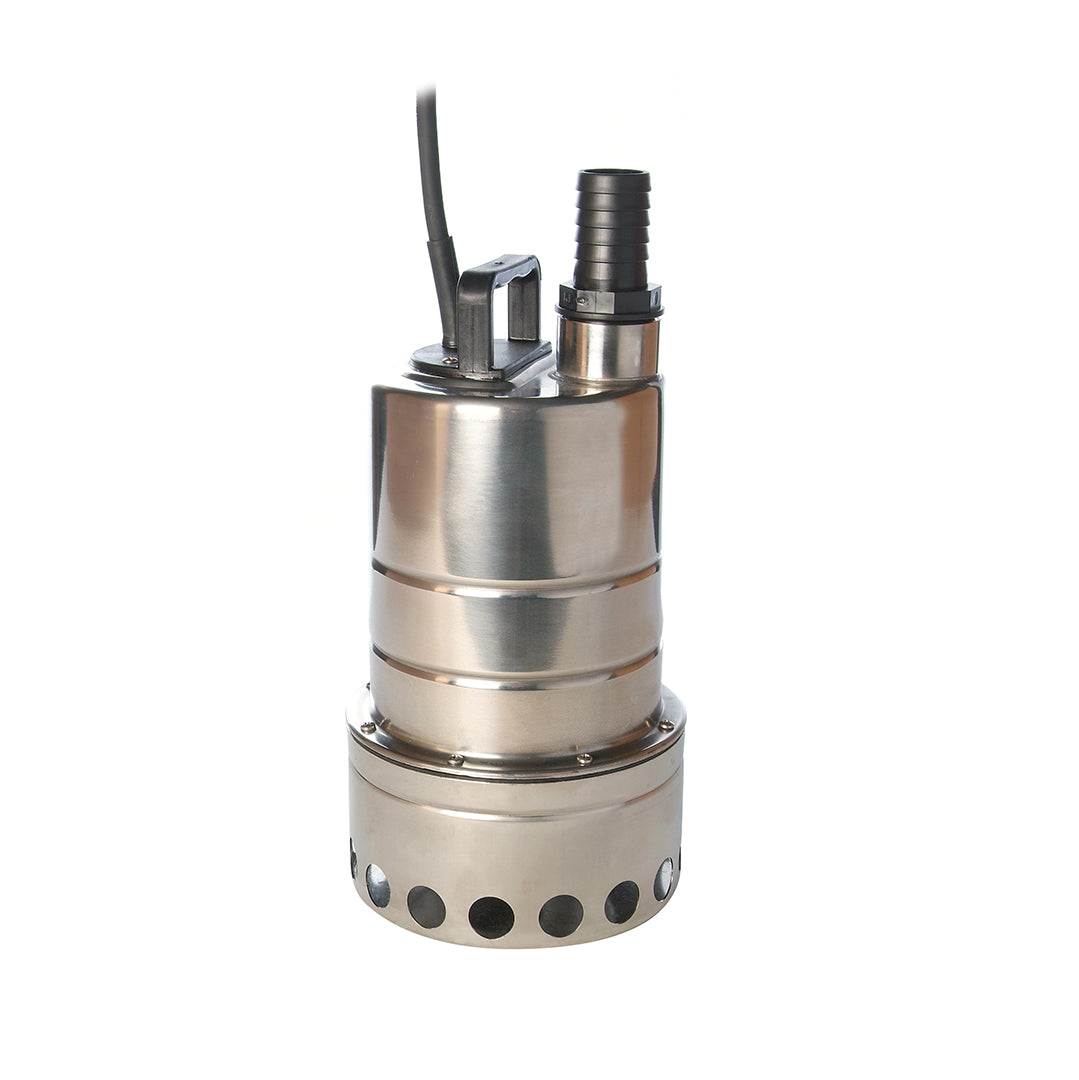

Mizar Vox Submersible Dirty Water Pumps

Description

The Mizar series, in 304 stainless steel, have a water cooled, top discharge design for applications where space is limited, operating while partially submerged or during short periods of dry running. For environment protection, a vegetable oil based biodegradable hydraulic fluid is used for th...

TECHNICAL DATA

  • Outlet (mm): 32
  • Motor output (kW): 0.45
  • Max head (m): 7
  • Phases: 1
  • Max flow (I/min): 175
  • Free passage (mm): 20
Skip to product information
1 of 4
Regular price £368.00 GBP
Regular price Sale price £368.00 GBP
Sale Sold out
Excluding VAT
View full details

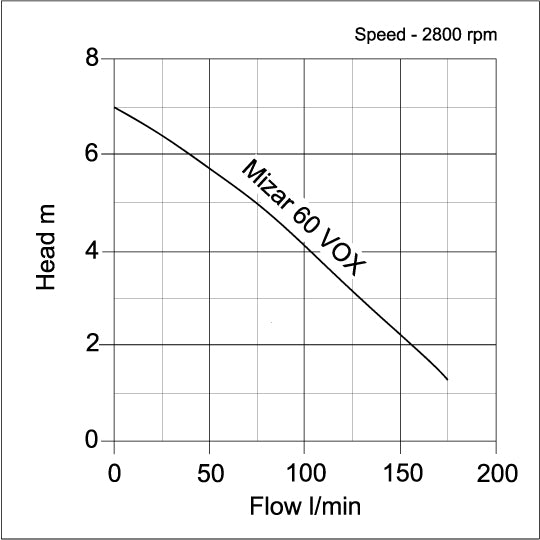

PERFORMANCE CURVE
SPECIFICATIONS

Mizar Vox

item code model Manual or Auto outlet (mm) kW volt flow head (mtrs) free passage (mm) dia x h on level * (mm) off level * (mm) dry weight (kgs)
(l/min) (mm)
24-10-1015 Mizar VOX 32 0.45 110 175 20 Ø154x264 5.9
24-10-1011 Mizar VOX 32 0.45 230 175 20 Ø154x264 5.9
24-10-1008 Mizar VOX 32 0.45 110 175 20 Ø154x264 290 125 6.1
24-10-1001 Mizar VOX 32 0.45 230 175 20 Ø154x264 290 125 6.1

*Approximate liquid level

model

w X l X h (mm)

Mizar VOX

Ø154x264
