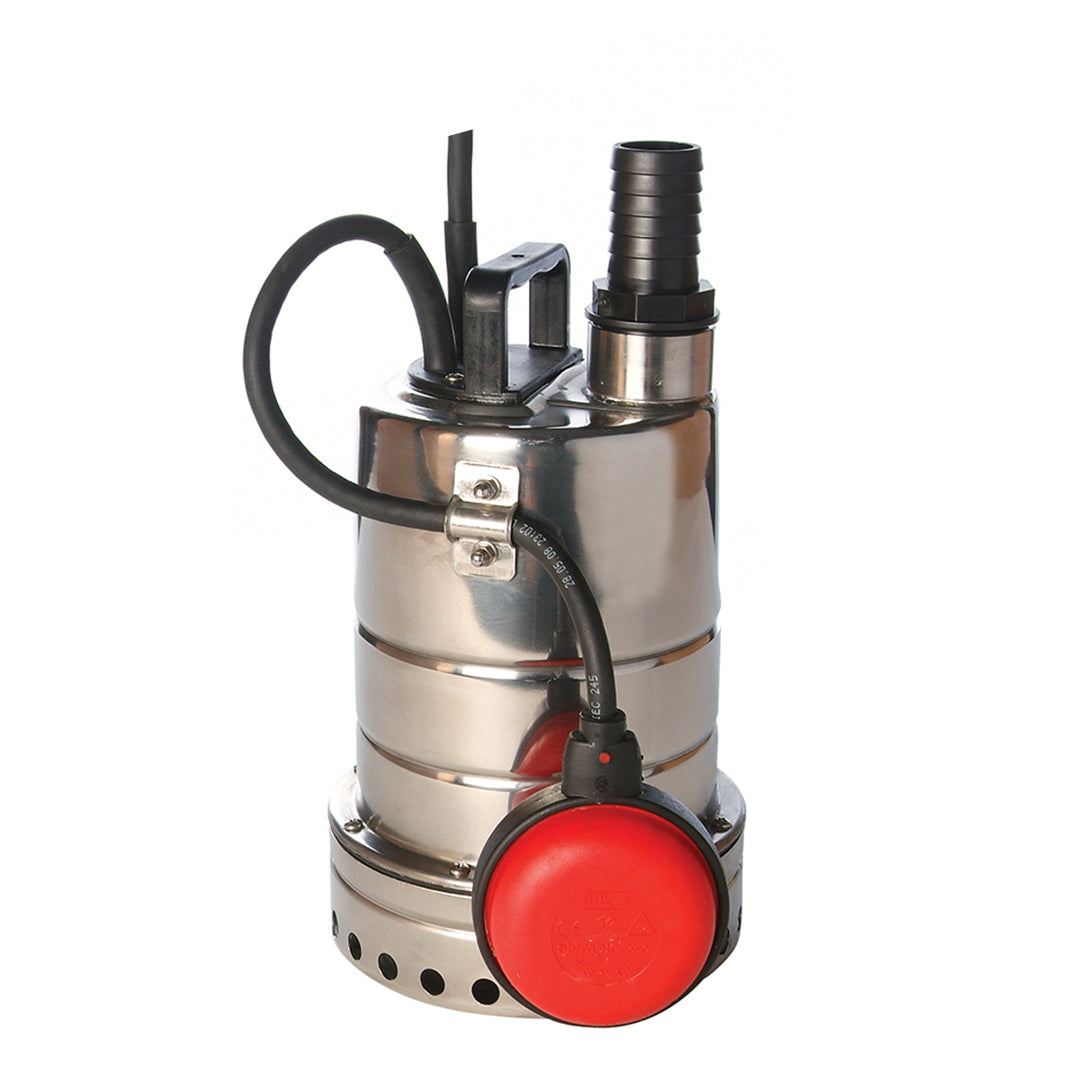

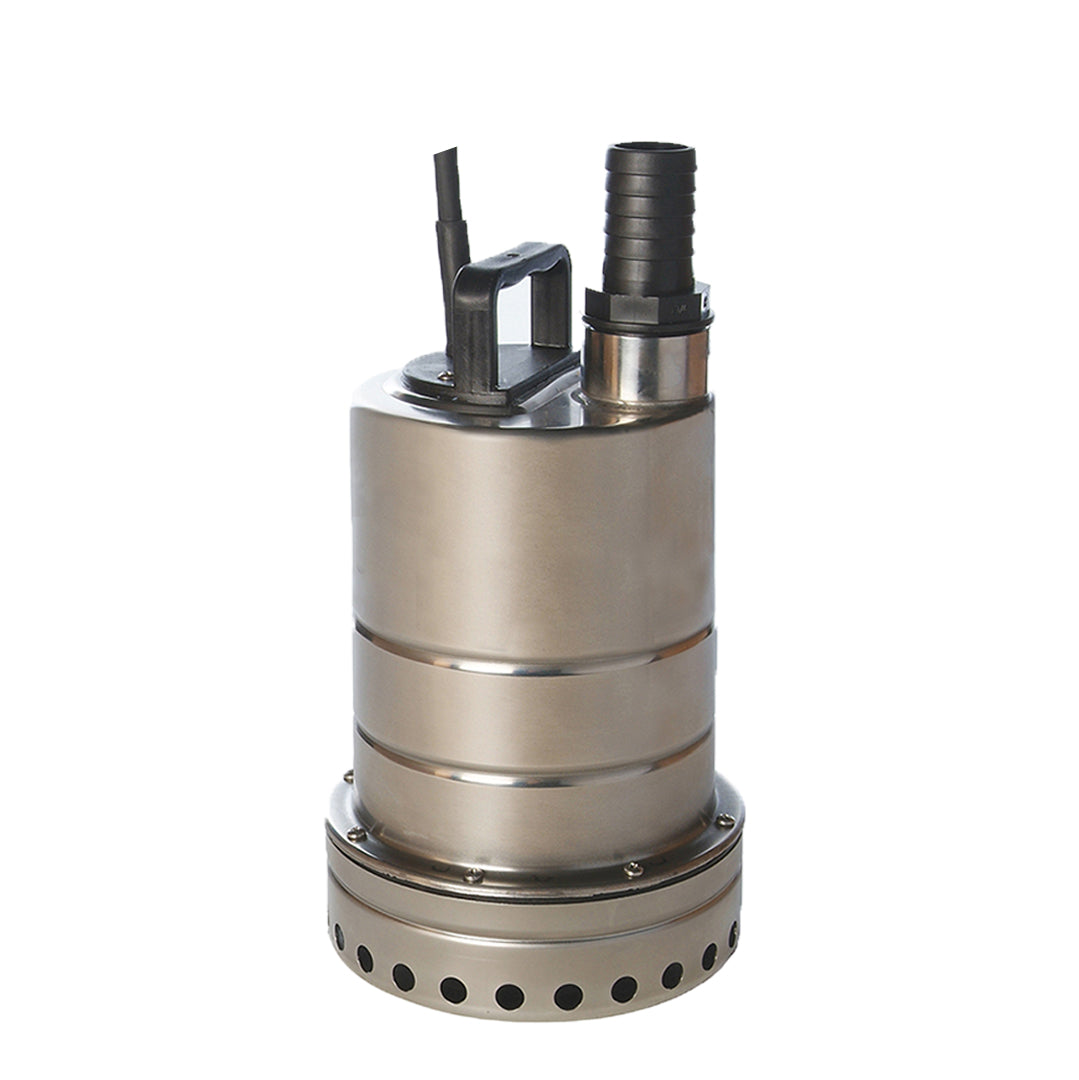

Name: Mizar Submersible Dirty Water Pumps
Brand: STRAVO
SKU: 24-10-1017
Price: 312.0 GBP
Availability: InStock

Description

The Mizar series, in 304 stainless steel, have a water cooled, top discharge design for applications where space is limited, operating while partially submerged or during short periods of dry running. For environment protection, a vegetable oil based biodegradable hydraulic fluid is used for th...

TECHNICAL DATA

Outlet (mm): 32
Motor output (kW): 0.25 - 0.45
Max head (m): 7 - 10
Phases: 1
Max flow (I/min): 150 - 175
Free passage (mm): 10

1 4

£312.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

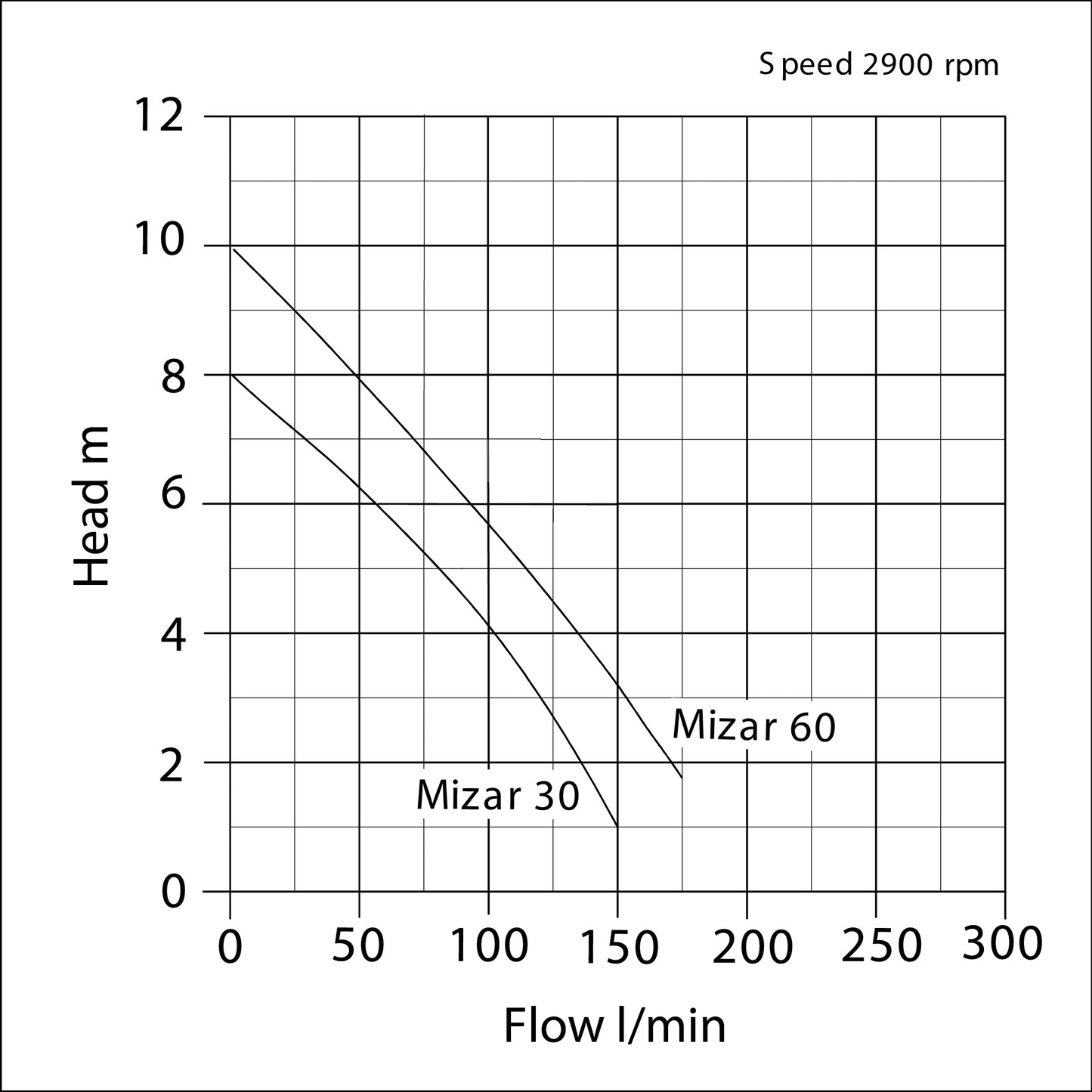

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue Page

Mizar Catalogue Page

Tsurumi Catalogue 2024 - Page 10

Mizar 30

item code	model	Manual or Auto	outlet (mm)	kW	volt	flow (l/min)	head (mtrs)	free passage (mm)	dia x h (mm)	on level * (mm)	off level * (mm)	dry weight (kgs)
24-10-1017	Mizar 30	M	32	0.25	110	150	8	10	Ø154x234	-	-	4.9
24-10-1010	Mizar 30	M	32	0.25	230	150	8	10	Ø154x234	-	-	4.9
24-10-1004	Mizar 30	A	32	0.25	110	150	8	10	Ø154x234	220	90	5.2
24-10-1012	Mizar 30	A	32	0.25	230	150	8	10	Ø154x234	220	90	5.2

*Approximate liquid level

Mizar 60

item code	model	Manual or Auto	outlet (mm)	kW	volt	flow	head (mtrs)	free passage (mm)	dia x h	on level * (mm)	off level * (mm)	dry weight (kgs)
item code	model	Manual or Auto	outlet (mm)	kW	volt	(l/min)	head (mtrs)	free passage (mm)	(mm)	on level * (mm)	off level * (mm)	dry weight (kgs)
24-10-1013	Mizar 60	M	32	0.45	110	175	10	10	Ø154x234	-	-	5.6
24-10-1006	Mizar 60	M	32	0.45	230	175	10	10	Ø154x234	-	-	5.6
24-10-1016	Mizar 60	A	32	0.45	110	175	10	10	Ø154x234	220	90	5.8
24-10-1018	Mizar 60	A	32	0.45	230	175	10	10	Ø154x234	220	90	5.8
