Catalogue
MH Catalogue Page
MH Catalogue Page
Item Code | Model | Outlet (mm) | kW | Volt (V) | Flow (l/min) | Head (mtrs) | WxLxH (mm) | Dry weight (kg) |
15-10-1074 | MH-150 | 50 | 0.15 | 230V | 230 | 6 | 162x175x376 | 6.9 |
Item Code | Model | Outlet (mm) | kW | Volt (V) | Flow (l/min) | Head (mtrs) | Free Passage (mm) | WxLxH (mm) | Dry weight (kg) |

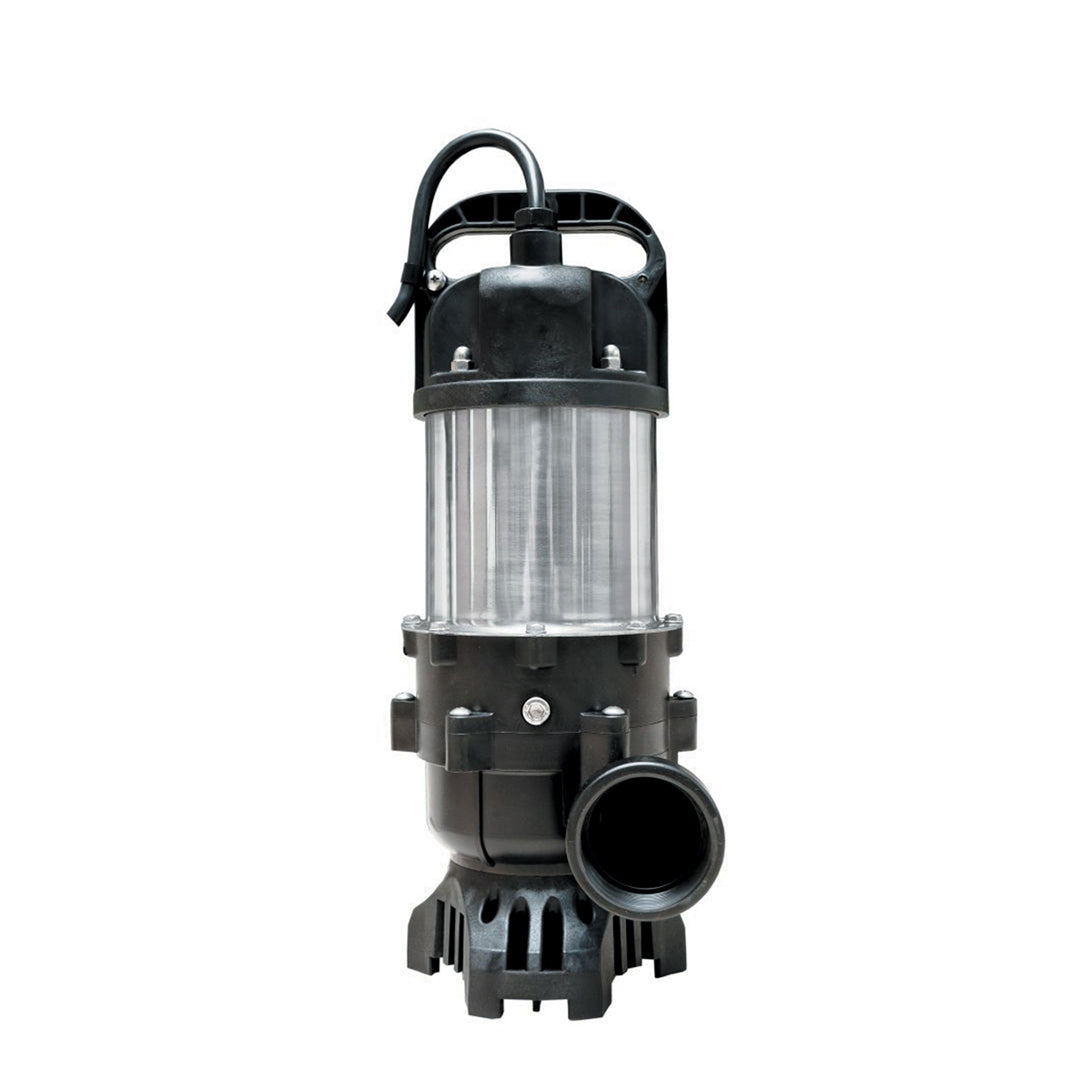

15-10-1004 | MH-250 | 50 | 0.25 | 230V | 260 | 7 | 6 | 162x175x376 | 6.35 |
Item Code | Model | Outlet (mm) | kW | Volt (V) | Flow (l/min) | Head (mtrs) | Free Passage (mm) | WxLxH (mm) | Dry weight (kg) | Packing weight |

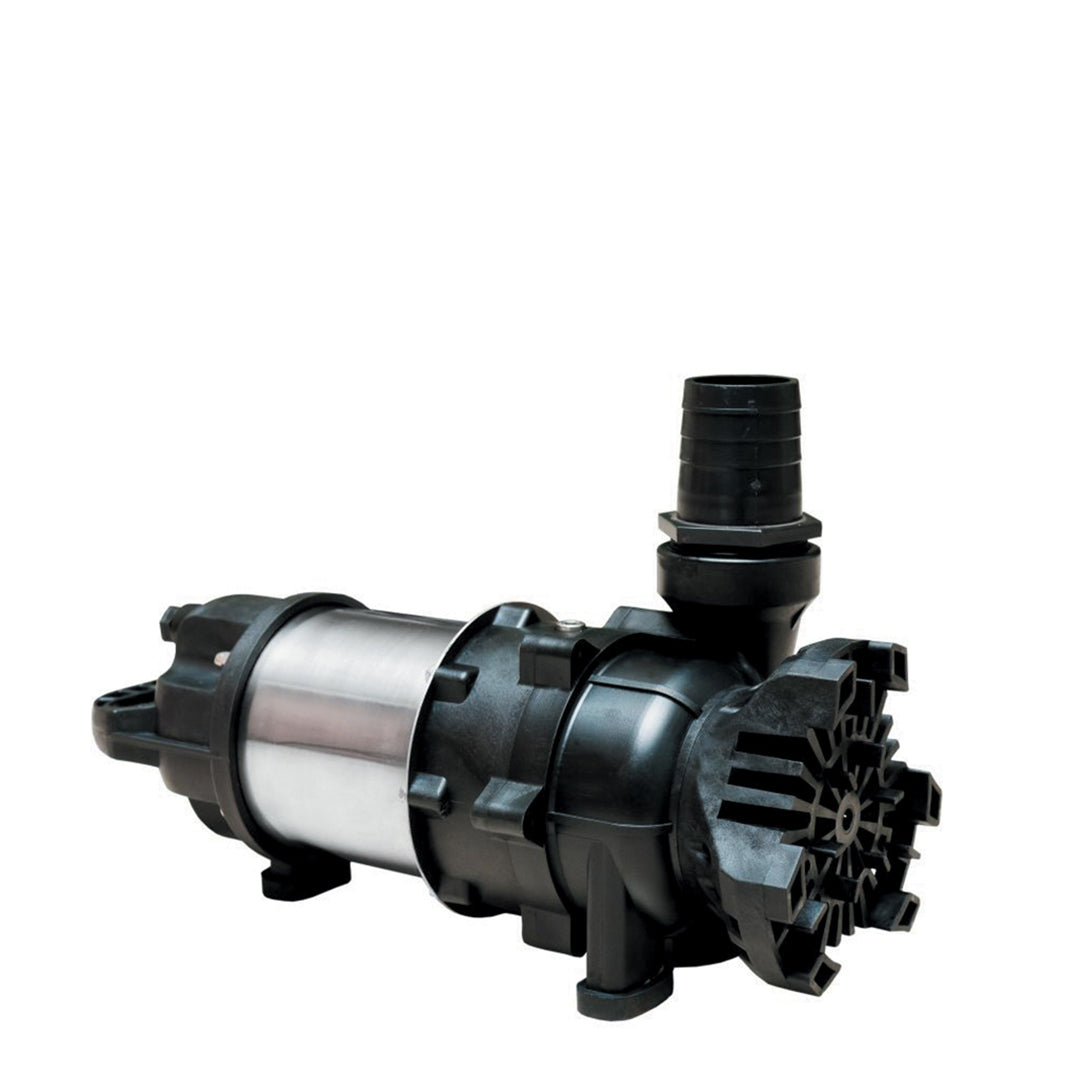

15-10-1000 | MH-400 | 50 | 0.4 | 230V | 320 | 8.5 | 6 | 162x175x396 | 8.55 | 10.55 |
Item Code | Model | Outlet (mm) | kW | Volt (V) | Flow (l/min) | Head (mtrs) | Free Passage (mm) | WxLxH (mm) | Dry weight (kg) |
15-10-1012 | MH-750 | 50 | 0.75 | 230V | 380 | 10.5 | 6 | 162x175x411 | 10.15 |
item code | fountain head/type (suitable for MH-150 & MH-250) | net weight (kgs) |
12-85-1006 | Three tier | 0.11 |
12-85-1024 | Geyser | 0.45 |
12-85-1050 | Extension tube | 0.11 |

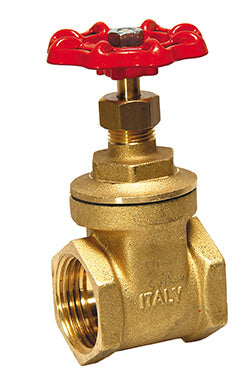

26-85-1002 | 1” gate valve c/w reducing nipple | 0.4 |
model
w X l X h (mm)
