LogicFlow & LogicPress

Description

Logic is a series of electronic pressure switches that will control and protect an electric pump. They will start a pump immediately when a valve in the pipe system is opened and stop the pump immediately when the valve is closed. They maintain a constant system pressure, protect a pump from ...

TECHNICAL DATA

  • in/out (BSPM): 1" - 1 1/4"
  • Volt: 110 - 400
  • Max temp (°C): 50 - 65
  • Max flow-rate (l/min): 166 - 200
  • Max pressure (bar): 12 - 16
  • Pump start pressure (bar): 1.5 - 2.5
Skip to product information
1 of 8

3 total reviews

Regular price £54.00 GBP
Regular price Sale price £54.00 GBP
Sale Sold out
Excluding VAT
View full details
SPECIFICATIONS

Logicpress

Logicpress features:

Automatic reset function: pump protection from dry running but with automatic reset, enabling the pump to operate normally again during a condition where the lack of water may have only been temporary. In this situation, a conventional pressure controller would switch off and the system would require a manual reset, which could cause inconvenience. Both devices are designed to make 10 attempts to start over a 24 hour period. On the 10th attempt, if the condition still exists i.e. it is not temporary, it switches off. A system inspection and manual reset is then required.

Daily pump test function: if for any reason the pump remains idle for 24 consecutive hours, both devices are designed to start up the pump for about 5 seconds. This helps to avoid various problems associated with pumps inactive for long periods.

Dual voltage: It can be operated at 110 volts or 230 volts and with 400 volts 3 phase (with a contactor).



Application conditions are:

The column of water between the switch and the highest outlet must not exceed 15 metres (1.5bar) – the “restart pressure value setting” - otherwise the system pressure may not fall to the pre-set “cut in” pressure and the system will not restart. This value is pre-set at factory, so no additional programming is required, or possible, during installation.

Minimum flow required inwards is 1 litre per minute.

It must be operated vertically.



Logicpress(M): this is the same product as the Logicpress, but with a factory fitted Manometer pressure gauge (M).



Logicpress SET: this is the same as the Logicpress but with three pre-programmed restart pressure settings of 1.5, 2.0 and 2.5 bar, which can be programmed by the user. This feature enables the user to purchase one device for a range of duties. It must be operated vertically. Minimum flow required inwards is 1 litre per minute. Optional pressure gauge (M). 230v only, or 400v (with a contactor)



Logicpress SET (M): this is the same product as the Logicpress(M), but with a factory fitted Manometer pressure gauge (M).

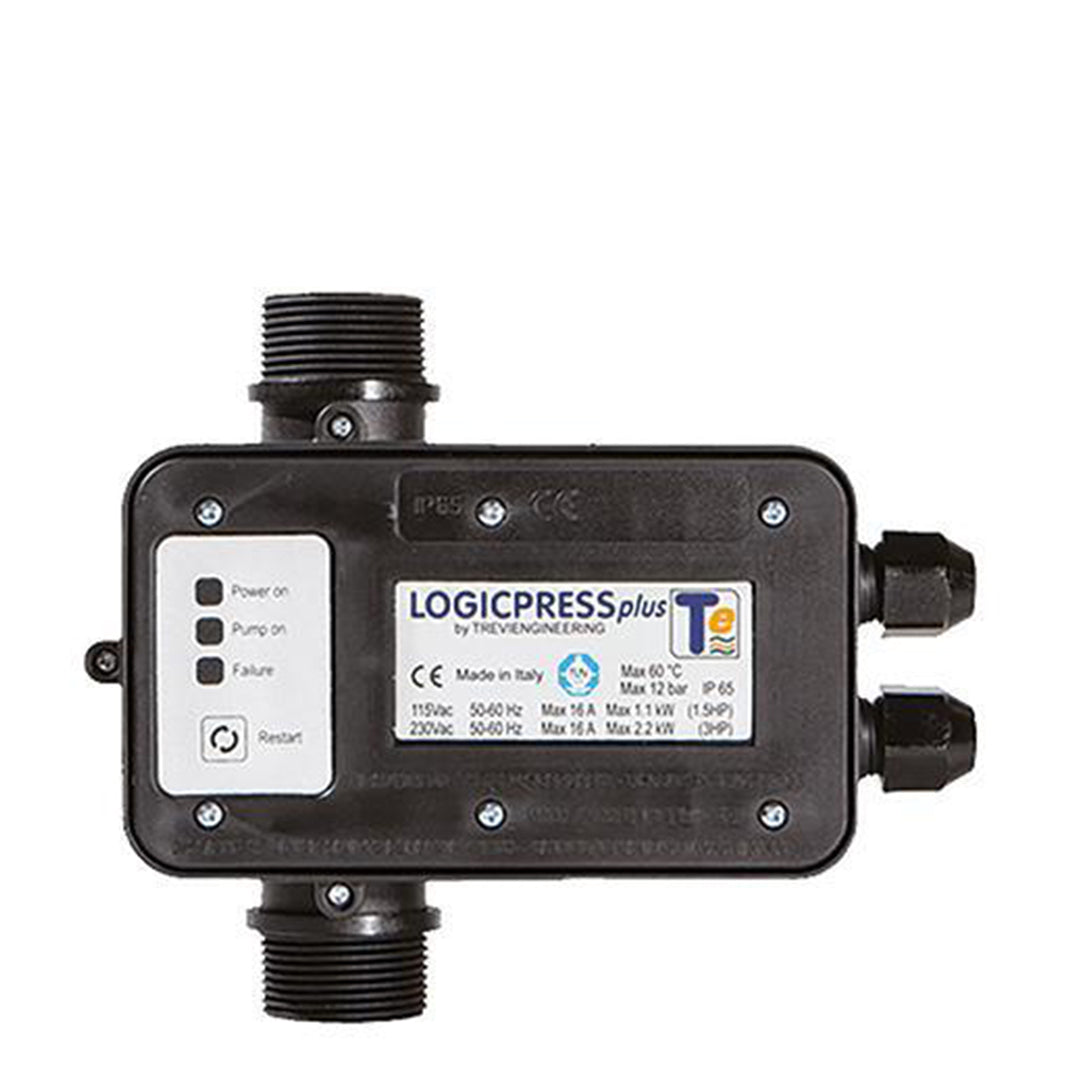

Logicpress PLUS: this has the same features as the Logicpress, but is for higher flow rates and hence has a larger inlet and outlet.


Logicpress 3PHASE PLUS: this has the same features as the Logicpress, but is specifically for 3 phase pumps (230v and 400v) that have higher flow rates and hence has a larger inlet and outlet. It has reverse rotation protection.


Item CodeModelin/out (BSPM)Volt (v) amps maxmax flow rate (l/min)temp mx Cmaxx operating pressure (bar)pump start pressure(bar)WxLxH
20-40-1014Logicpress1"110 - 23020 - 1016665121.5140x190x110
20-40-1009Logicpress (M)1"110 - 23020 - 1016665121.5190x190x110
20-40-1011Logicpress SET1"2301016665121.5 - 2.0 - 2.5140x190x110
20-40-1005Logicpress SET (M)1"2301016665121.5 - 2.0 - 2.5190x190x110
20-40-1024Logicpress PLUS11/4"110 - 23016 - 1620065121.5211x251x175
20-40-1025Logicpress 3PHASE PLUS1 1/4"400620065121.5205x272x175

Logicflow

Logicflow: for surface mounted pumps only in applications of positive suction i.e. underneath a tank or direct withdrawal from the mains water supply. It will start a pump immediately when a valve in the pipe system is opened and stop the pump immediately when the valve is closed. It has integral dry running protection an external re-set switch, pump status LEDs, power black-out auto reset, dual voltage (110- 230v) and has IP65 protection. Minimum flow required inwards is 0.5 litres per minute.

Item CodeModelin/out (BSPM)Volt (v) amps maxmax flow rate (l/min)temp mx Cmaxx operating pressure (bar)pump start pressure(bar)WxLxH
20-40-1004Logicflow1"110 - 23016 - 816665161.5130x75x100

Manometer

Manometer: this is a pressure gauge that can be retro-fitted to Logicpress and Logicpress SET. Models with this device, factory fitted, have suffix “(M)”

Item CodeModelin/out (BSPM)Volt (v) amps maxmax flow rate (l/min)temp mx Cmaxx operating pressure (bar)pump start pressure(bar)WxLxH
20-40-1023Manometer50x35x45

model

w X l X h (mm)

LogicFlow

130x75x100

LogicPress

140x190x110

LogicPress (M)

190x190x110

LogicPress PLUS

211x251x175

LogicPress 3PHASE PLUS

205x272x175

Manometer

50x35x45
