KTD Agitator Submersible Slurry Pump

Description

KTD are three phase slurry pumps, in cast iron, with a built-in agitator to stir sand, silt and pulverized solids into suspension for pumping. Constructed in superior grade materials throughout, they give exceptional performance in harsh operating conditions. The hydraulic design features a do...

TECHNICAL DATA

  • Outlet (BSPM/mm): 2"/50mm - 3"/75mm
  • Motor output (kW): 2 - 3
  • Max head (m): 20 - 22
  • Phases: 3
  • Max flow (I/min): 500 - 800
  • Free passage (mm): 8.5
Skip to product information
1 of 2
Regular price £2,738.00 GBP
Regular price Sale price £2,738.00 GBP
Sale Sold out
Excluding VAT
View full details

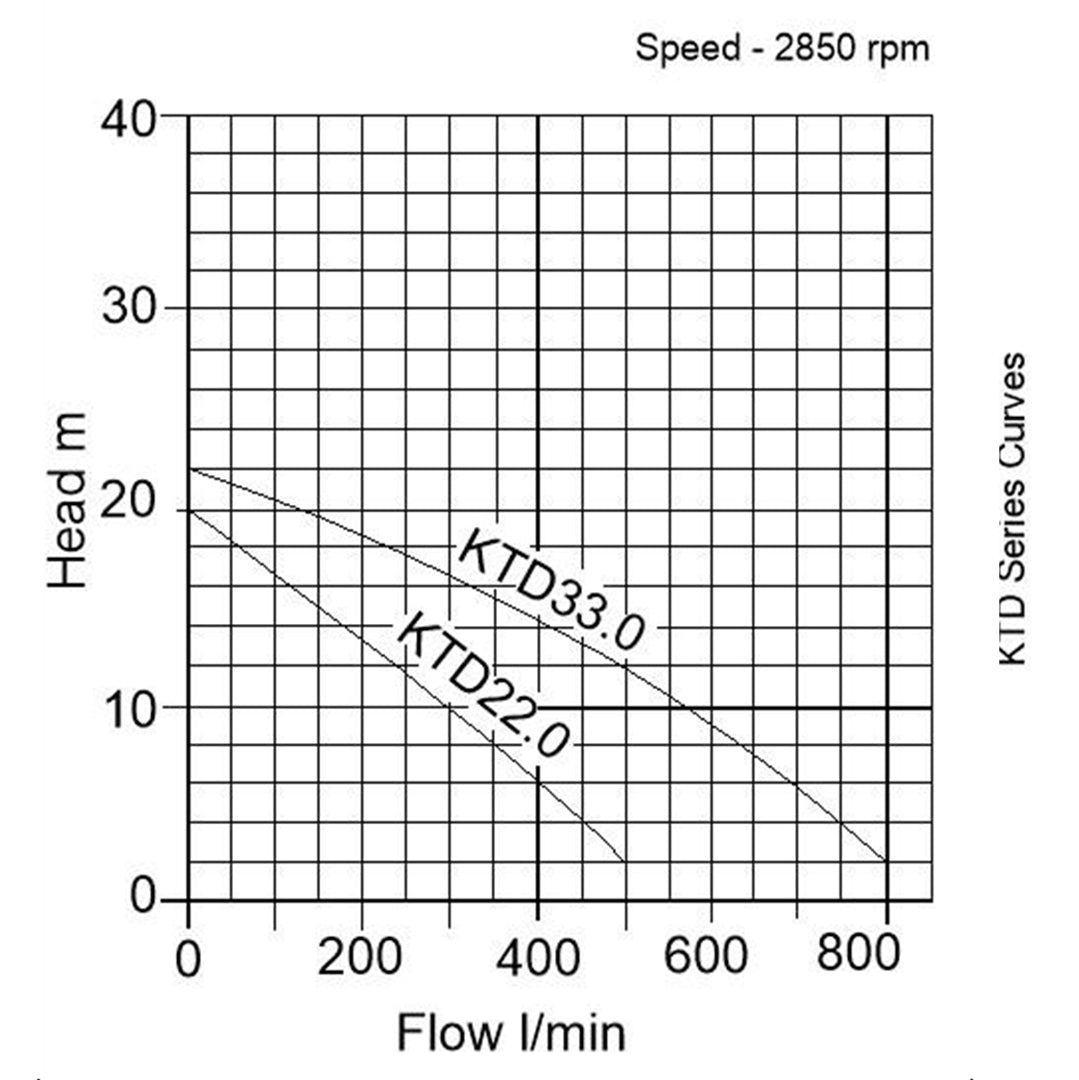

PERFORMANCE CURVE
SPECIFICATIONS

KTD22.0

Item CodeModelOutlet (BSPM & mm)kWVolt (v)Flow (l/min)Head (metres)Free Passage (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
10-10-1199KTD22.02" & 502400500208.523522151938

KTD33.0

Item Code

Model

Outlet (BSPM & mm)

kW

Volt (v)

Flow (l/min)

Head (metres)

Free Passage (mm)

Width (mm)

Length (mm)

Height (mm)

Dry weight (kg)

10-10-1229

KTD33.0

3" & 80

3

400

800

22

8.5

297

266

654

65

model

w X l X h (mm)

KTD22.0

235x221x519

KTD33.0

297x266x654
