KP(M) Industrial Peripheral Pumps

Description

  The KP(M) pumps are non self-priming, peripheral centrifugal pumps with cast iron pump bodies. Capable of high heads and pressures in domestic and industrial applications. Optional pressure controller will provide dry-run protection and automatic operation. (sold separately)

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.37 - 0.6
  • Max head (m): 35 - 50
  • Phases: 1 & 3
  • Max flow (I/min): 35 - 55

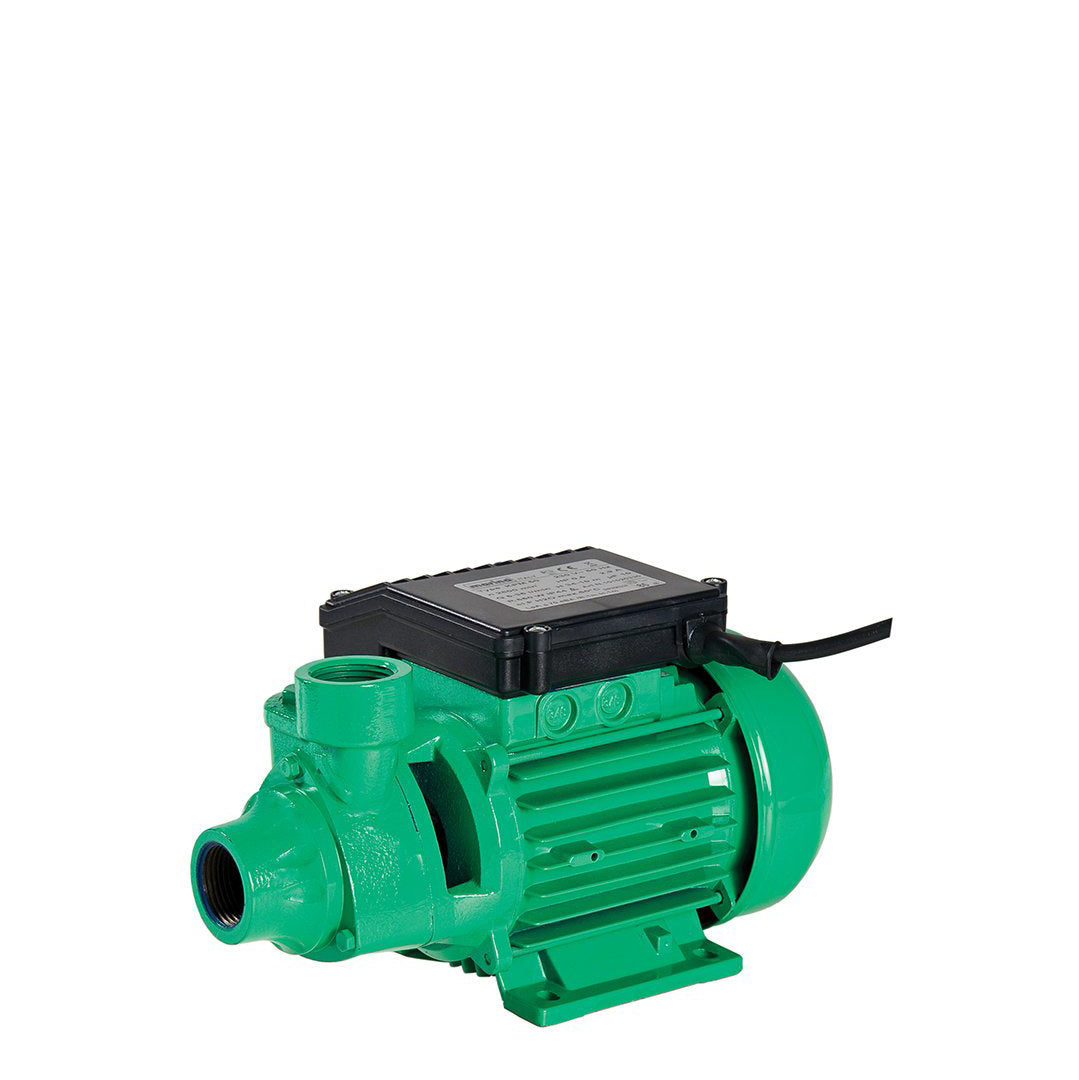

  • Speroni green KP(M) Industrial Peripheral Pump
  • KP(M) Industrial Peripheral Pump - pump curve graph
1 2
£89.00 GBP
£89.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni green KP(M) Industrial Peripheral Pump
  • KP(M) Industrial Peripheral Pump - pump curve graph

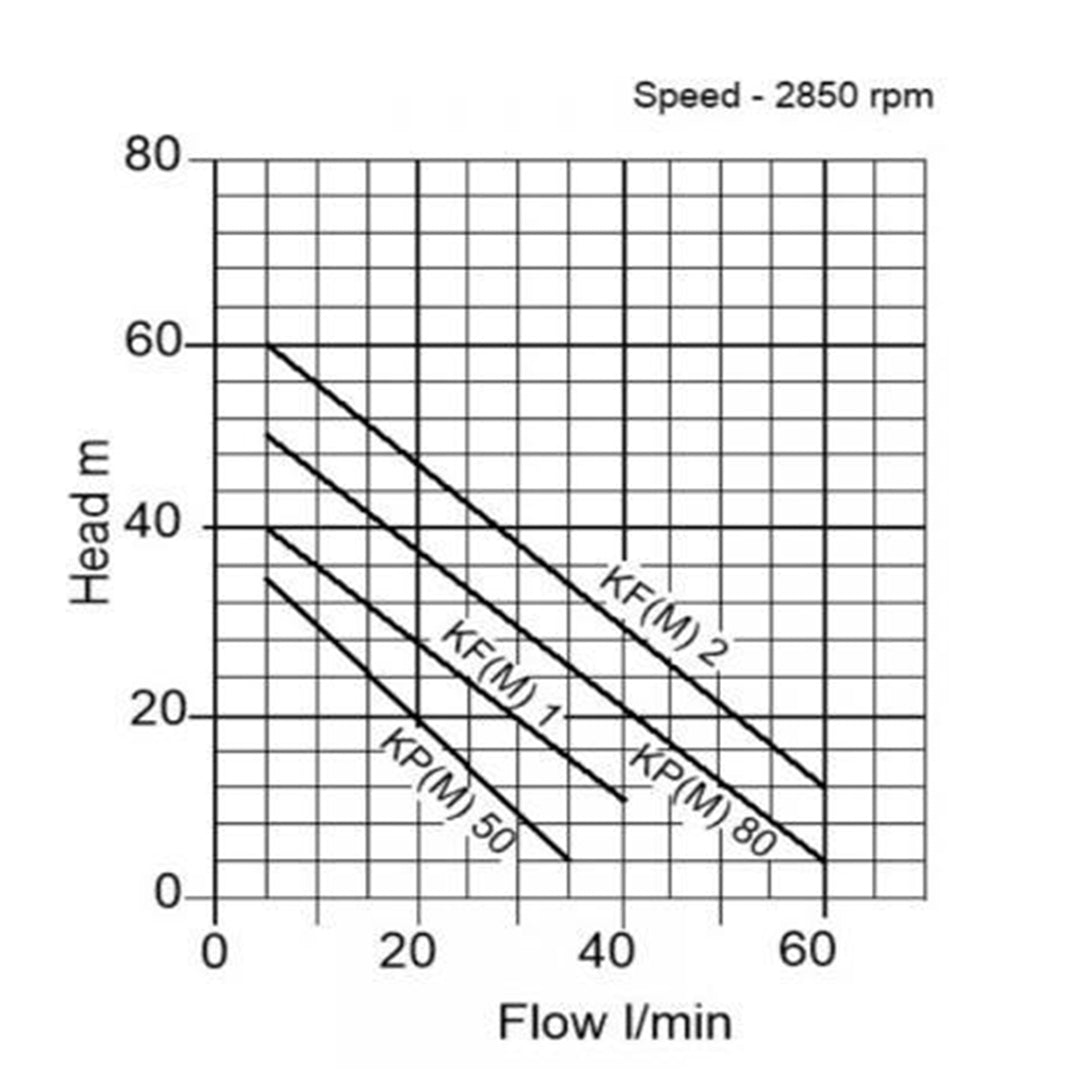

PERFORMANCE CURVE
SPECIFICATIONS

KPM50

Item code



Model		Outlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1018KPM501" (BSPF)0.37230V35351" (BSPF)1202551445.7

KP50

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1027KP501" (BSPF)0.37400V35351" (BSPF)1202551445.7

KPM80

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1080KPM801" (BSPF)0.37230V50601" (BSPF)1352951619.5

KP80

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1215KP801" (BSPF)0.5400V50601" (BSPF)1352951619.5

model

w X l X h (mm)

KP(M)50

120x255x144

KP(M)80

135x295x161
