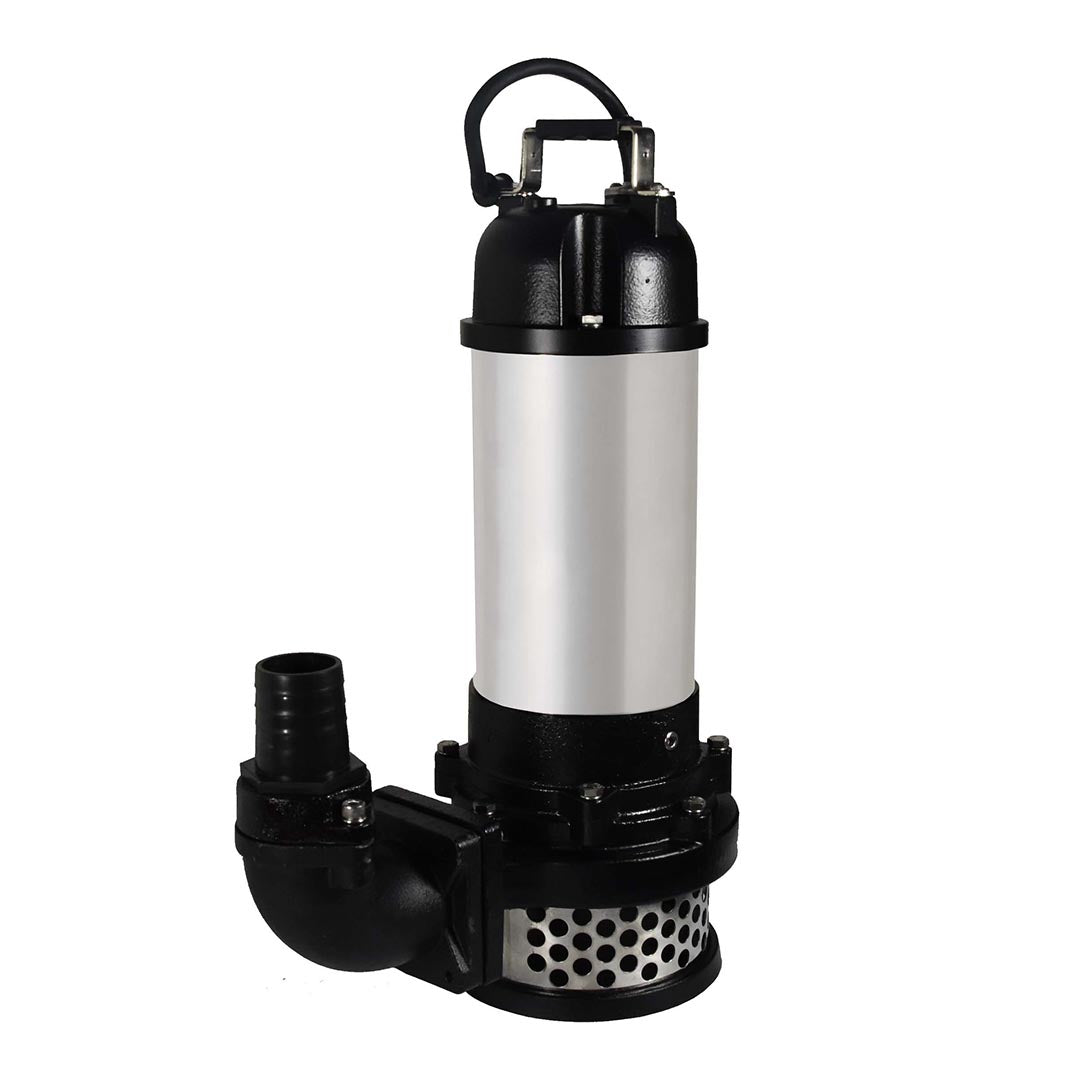

KHL-20 High Head Submersible Pump

Description

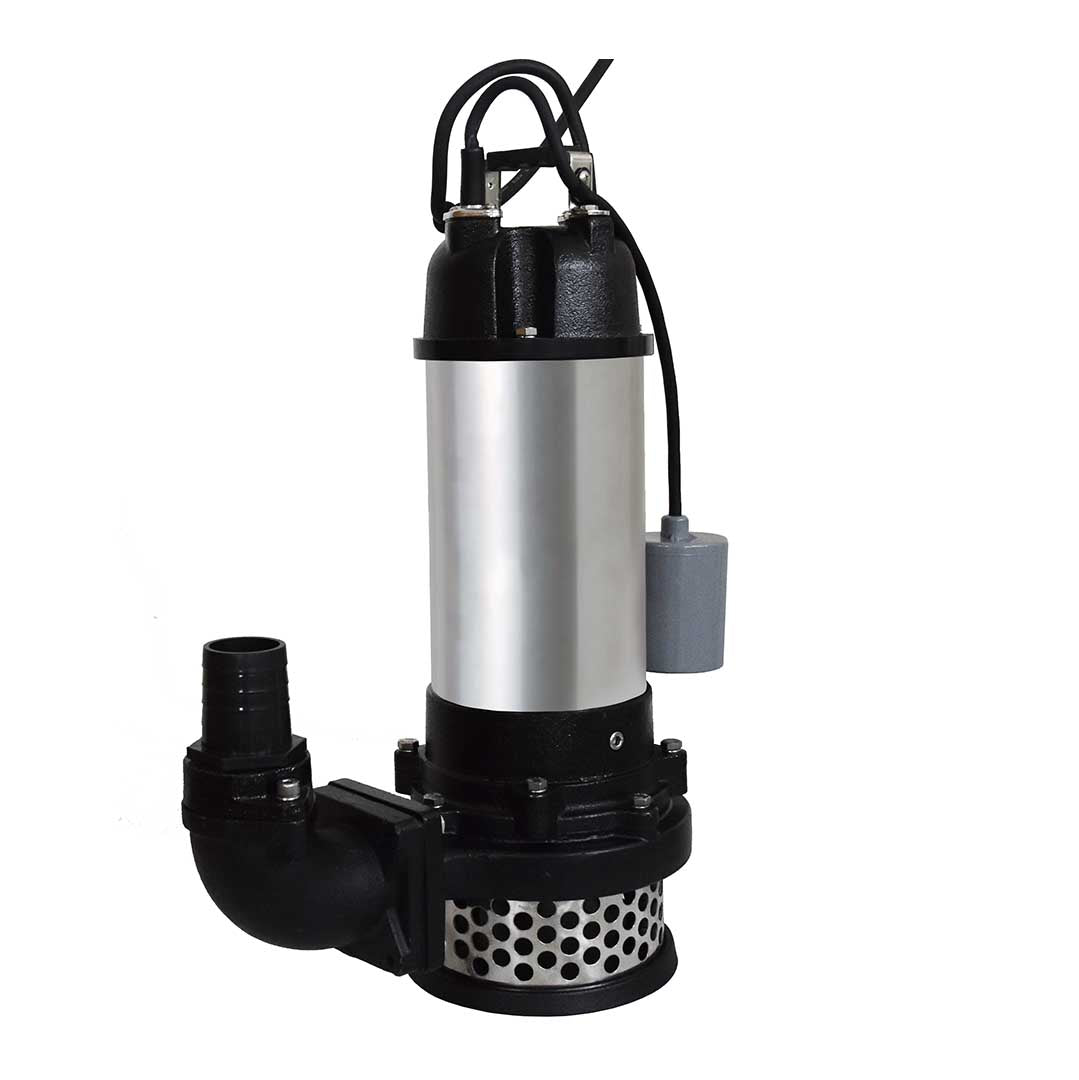

The KHL-20 is a single phase drainage pump capable of pumping a large flow at a high head. It has an integral starting capacitor and is available as manual or with a pendant float switch, for automatic operation (230v only).

TECHNICAL DATA

  • Outlet (mm): 50
  • Motor output (kW): 1.5
  • Max head (m): 24
  • Phases: 1 & 3
  • Max flow (I/min): 425
1 2
£654.00 GBP
£654.00 GBP
Sale Sold out
Excluding VAT
View full details
PERFORMANCE CURVE
SPECIFICATIONS

KHL-20

item code

model

Manual or Auto

outlet (mm)

kW

volt

flow (l/min)

head

(mtrs)

free passage (mm)

w x l x h

(mm)

dry weight

(kgs)

15-10-1108

KHL-20

M

50

1.5

230

425

24

12

208x375x590

36

15-10-1109

KHL-20

A

50

1.5

230

425

24

12

208x375x590

36

15-10-1107

KHL-20

M

50

1.5

400

425

24

12

208x375x590

38

model

w X l X h (mm)

KHL-20

208x375x590
