KF(M) Industrial Peripheral Pumps

Description

The KF(M) pumps are non self-priming, peripheral centrifugal pumps with cast iron pump bodies. Capable of high heads and pressures in domestic and industrial applications.  Optional pressure controller will provide dry-run protection and automatic operation. (Click here)

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.37 - 0.6
  • Max head (m): 40 - 60
  • Phases: 1 & 3
  • Max flow (I/min): 40 - 60

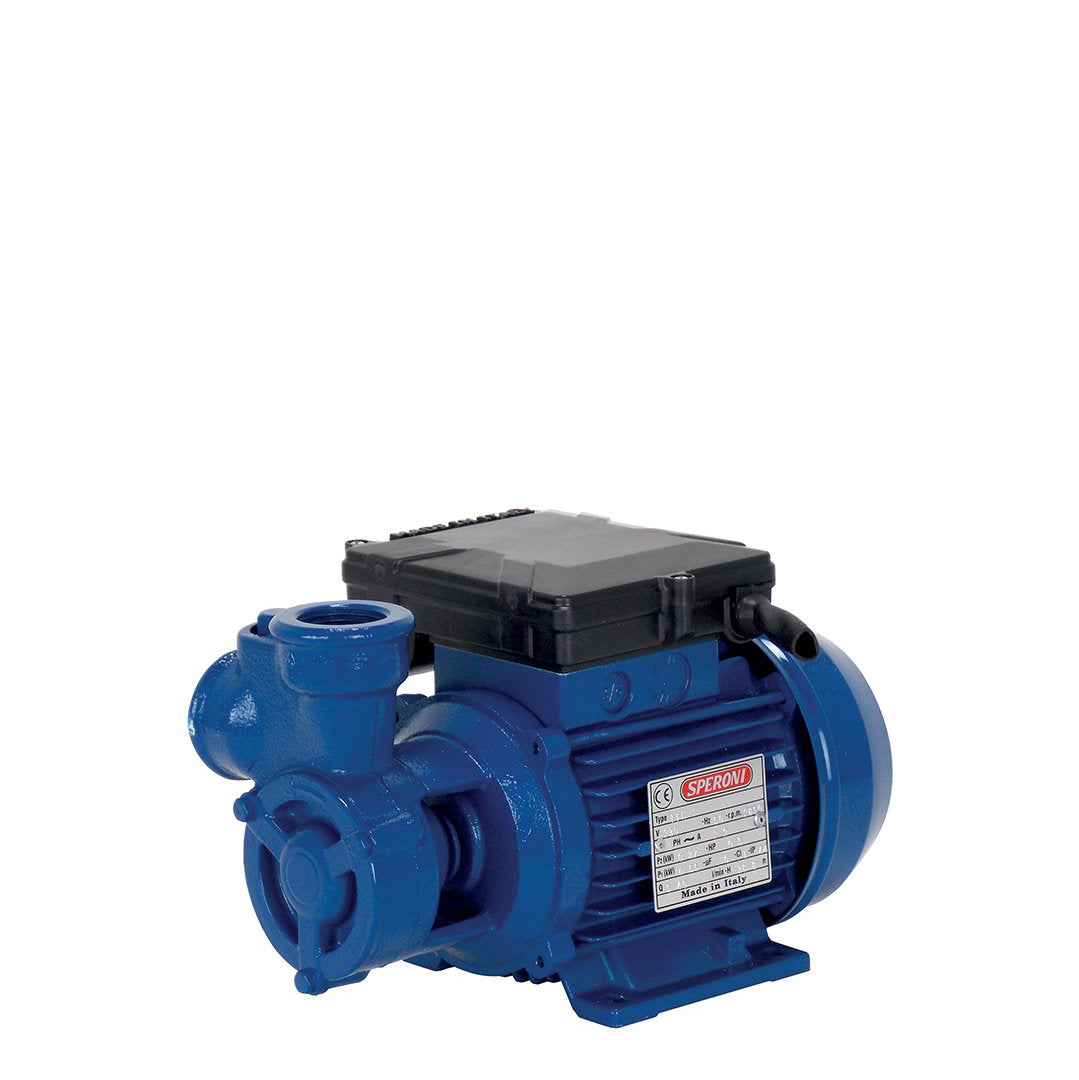

  • Speroni Blue KF(M) Industrial Peripheral Pump

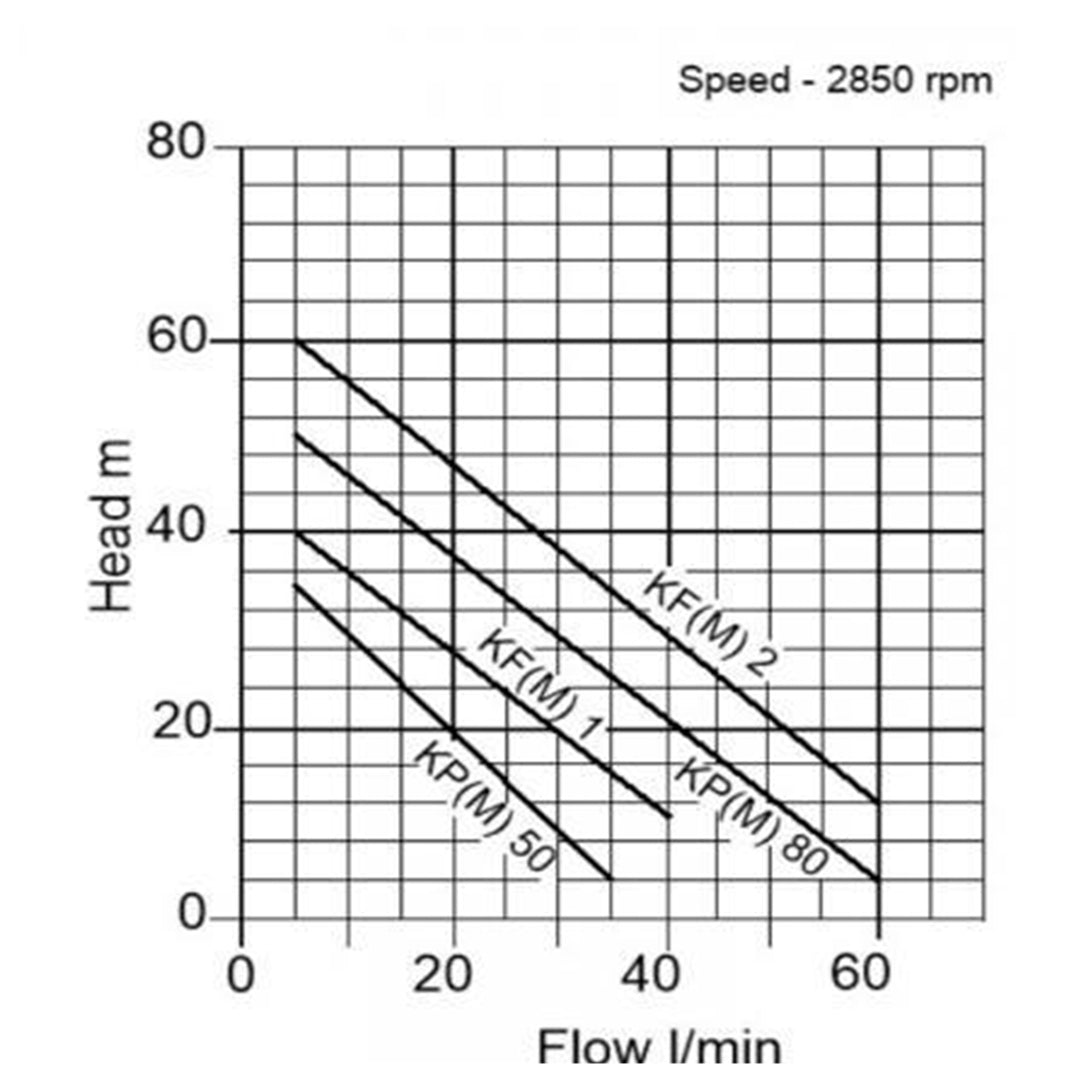

  • KF(M) Industrial Peripheral Pump - pump curve graph
1 2
£183.00 GBP
£183.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue KF(M) Industrial Peripheral Pump
  • KF(M) Industrial Peripheral Pump - pump curve graph
PERFORMANCE CURVE
SPECIFICATIONS

KFM1

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1185KFM11" BSPF0.37230V40401" BSPF1202501545.8

KF1

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1057KF11" BSPF0.37400V40401" BSPF1202501545.8

KFM2

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1068KFM21" BSPF0.6230V60601" BSPF1352751729.5

KF2

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1253KF21" BSPF0.6400V60601" BSPF1352751729.5

model

w X l X h (mm)

KF(M)1

120x250x154

KF(M)2

135x275x172
