HSD2.55S Robust Submersible Drainage Pump

Description

The HSD.55S is a lightweight and robust single-phase drainage pump, with an agitator and impeller in chromium iron to minimize clogging and increase wear resistance when pumping sand carrying water, sludge and bentonite. The hydraulic design features a double mechanical seal, with an oil lifte...

TECHNICAL DATA

  • Outlet (BSPM/mm): 2"/50
  • Motor output (kW): 0.55
  • Max head (m): 13.2
  • Phases: 1
  • Max flow (I/min): 220
  • Free passage (mm): 10
Skip to product information
1 of 3
Regular price £853.00 GBP
Regular price Sale price £853.00 GBP
Sale Sold out
Excluding VAT
View full details

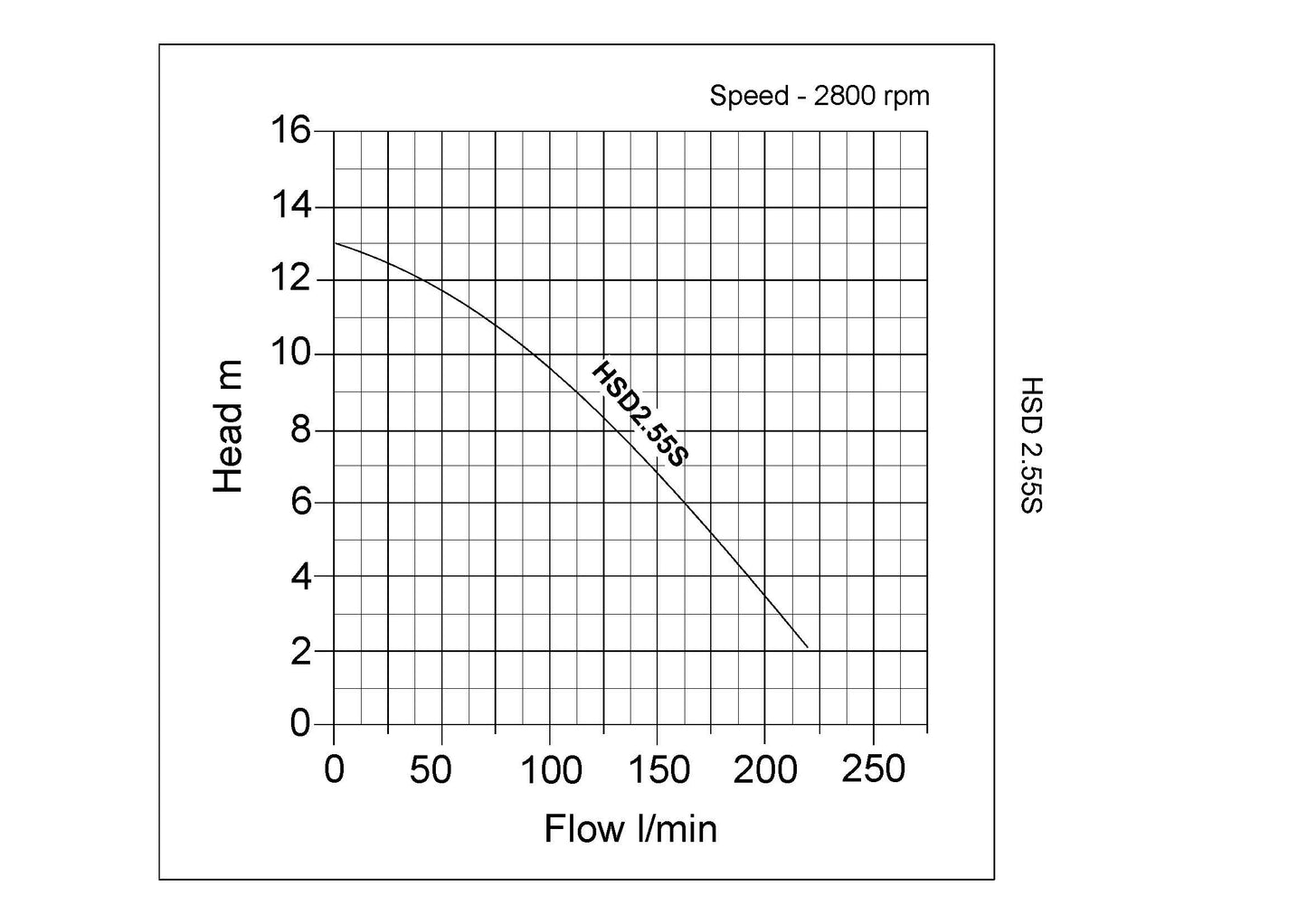

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

item code

model

Manual

or Auto

outlet (BSPM/mm)

kW

volt

flow (l/min)

head

(mtrs)

free passage (mm)

w x l x h

(mm)

dry weight

(kgs)

10-10-1280

HSD.55S

M

2”/50

0.55

230

220

13.2

10

186x241x391

14.0

10-10-1301

HSD.55S

A

2”/50

0.55

230

220

13.2

10

186x241x391

14.3

model

w X l X h (mm)

HSD2.55

186x241x391
