Image from Product Description

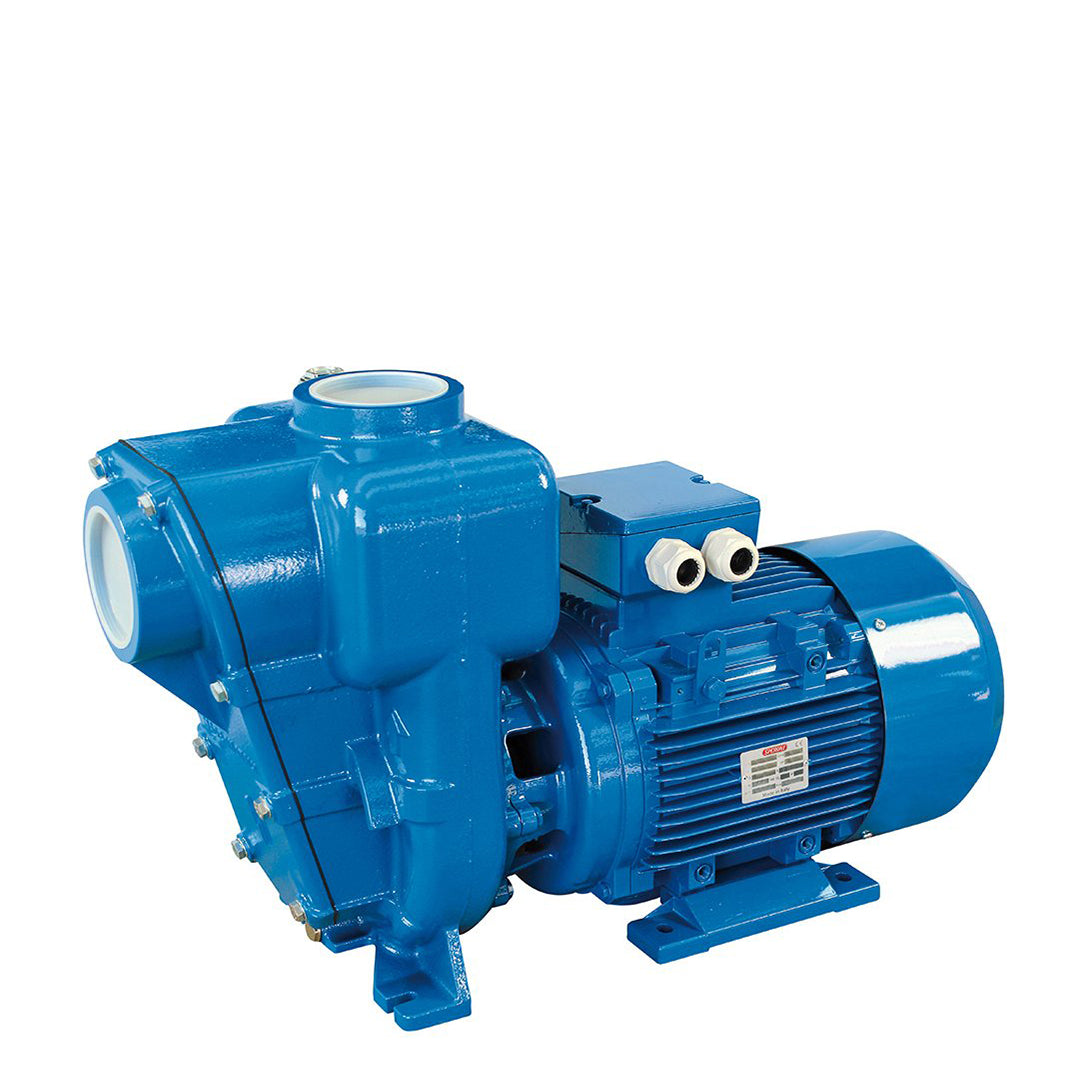

HG100 Self Priming Centrifugal Pumps

Description

HG100 are self-priming, mono-bloc, centrifugal pumps in cast iron, with very large flow rates and high heads. The design incorporates a rubber check valve, to maintain the priming water level and enable automatic priming during starting, even when the inlet pipe is empty. They are designed for ...

TECHNICAL DATA

  • Outlet (BSPF): 4"
  • Inlet (BSPF): 4"
  • Motor output (kW): 9.2 - 15
  • Max head (m): 33 - 34
  • Phases: 3
  • Max flow (I/min): 2200 - 2600
Skip to product information
1 of 1
Regular price £3,013.00 GBP
Regular price Sale price £3,013.00 GBP
Sale Sold out
Excluding VAT
View full details
SPECIFICATIONS

Description

HG100 are self-priming, mono-bloc, centrifugal pumps in cast iron, with very large flow rates and high heads. The design incorporates a rubber check valve, to maintain the priming water level and enable automatic priming during starting, even when the inlet pipe is empty. They are designed for many industrial and agricultural applications and are suitable for pumping dirty water, without abrasive particles. Optional pump control and energy management systems are available (see here).

HG100 -9.5

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1013HG100-9.54"9.2400V220033315875541126

HG100 -11

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1109HG100-114"11400V240033315875541133

HG100 -15

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1060HG100-154"15400V260034315875541164

model

w X l X h (mm)

HG100

315x875x541
