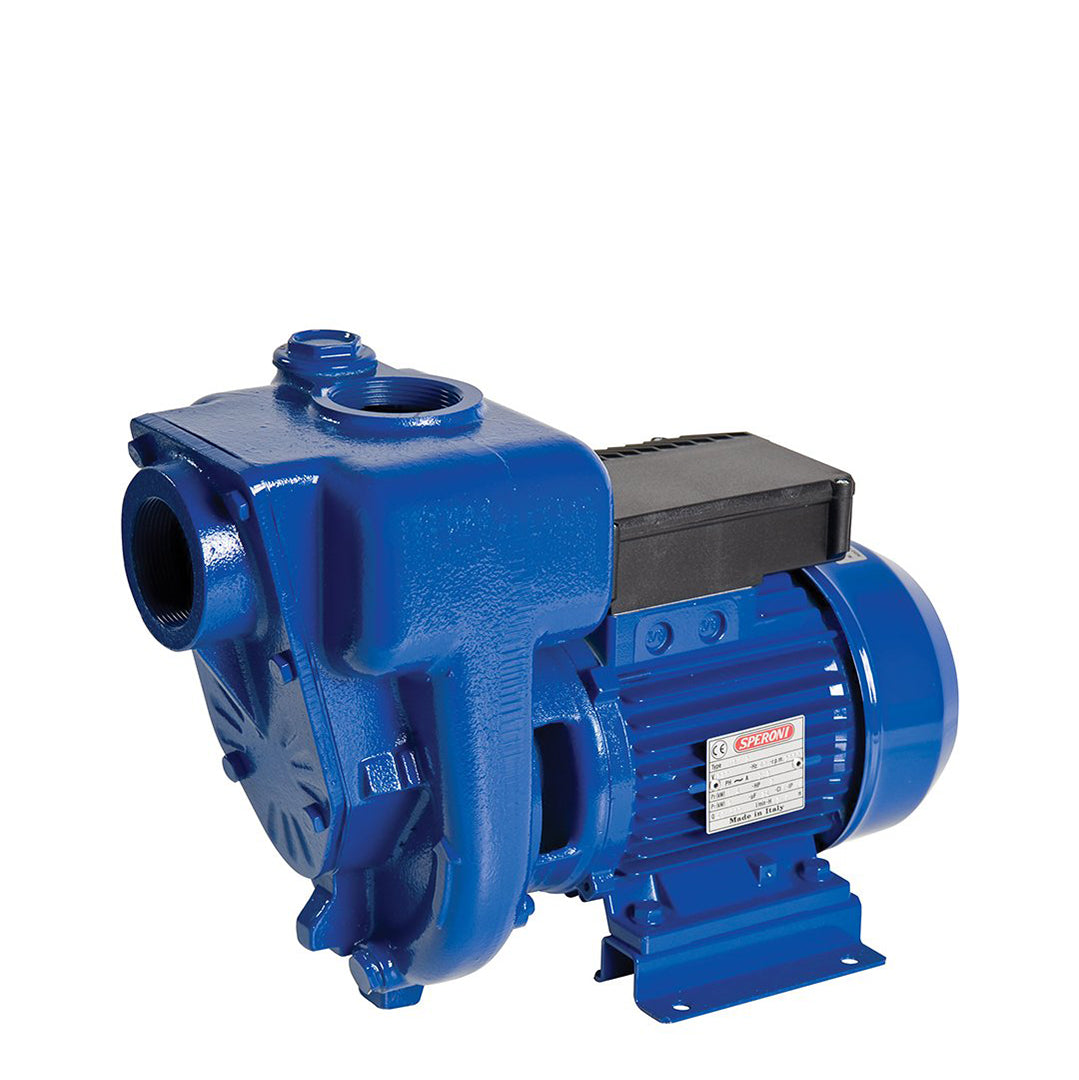

HG(M) Surface Centrifugal Pump

Description

HG(M) are self-priming, mono-bloc, centrifugal pumps in cast iron, with large flow rates. The design incorporates a rubber check valve, to maintain the priming water level and enable automatic priming during starting, even when the inlet pipe is empty. They are designed for many industrial and ...

TECHNICAL DATA

  • Outlet (BSPF): 2"
  • Inlet (BSPF): 2"
  • Motor output (kW): 1.5 - 7.5
  • Max head (m): 19 - 28
  • Phases: 1 & 3
  • Max flow (I/min): 600 - 1800
Skip to product information
1 of 2
Regular price £697.00 GBP
Regular price Sale price £697.00 GBP
Sale Sold out
Excluding VAT
View full details
PERFORMANCE CURVE
SPECIFICATIONS

HGM50-1.5

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1175HGM50-1.52"1.5110V600192"18541230228
19-15-1216HGM50-1.52"1.5230V600192"18541230228

HG50-1.5

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1249HG50 1.5 2"1.5400V600192"18541230228

HG80-2.2

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1134HG80 2.2 3"2.2400V1000163"20052831236

HG80-4

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1020HG80-4 3"4400V1400243"27762944375

HG80-5.5

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1219HG80 - 5.5 3"5.5400V1200253"21070546592

HG80-7.5

Item CodeModelOutlet (mm)kWVolt (v)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1156HG80-7.5 807.5400V1800288027767644392

model

w X l X h (mm)

HG(M)50

193x412x302

HG(M)80-2.2

193x412x302

HG80

277x629x443
