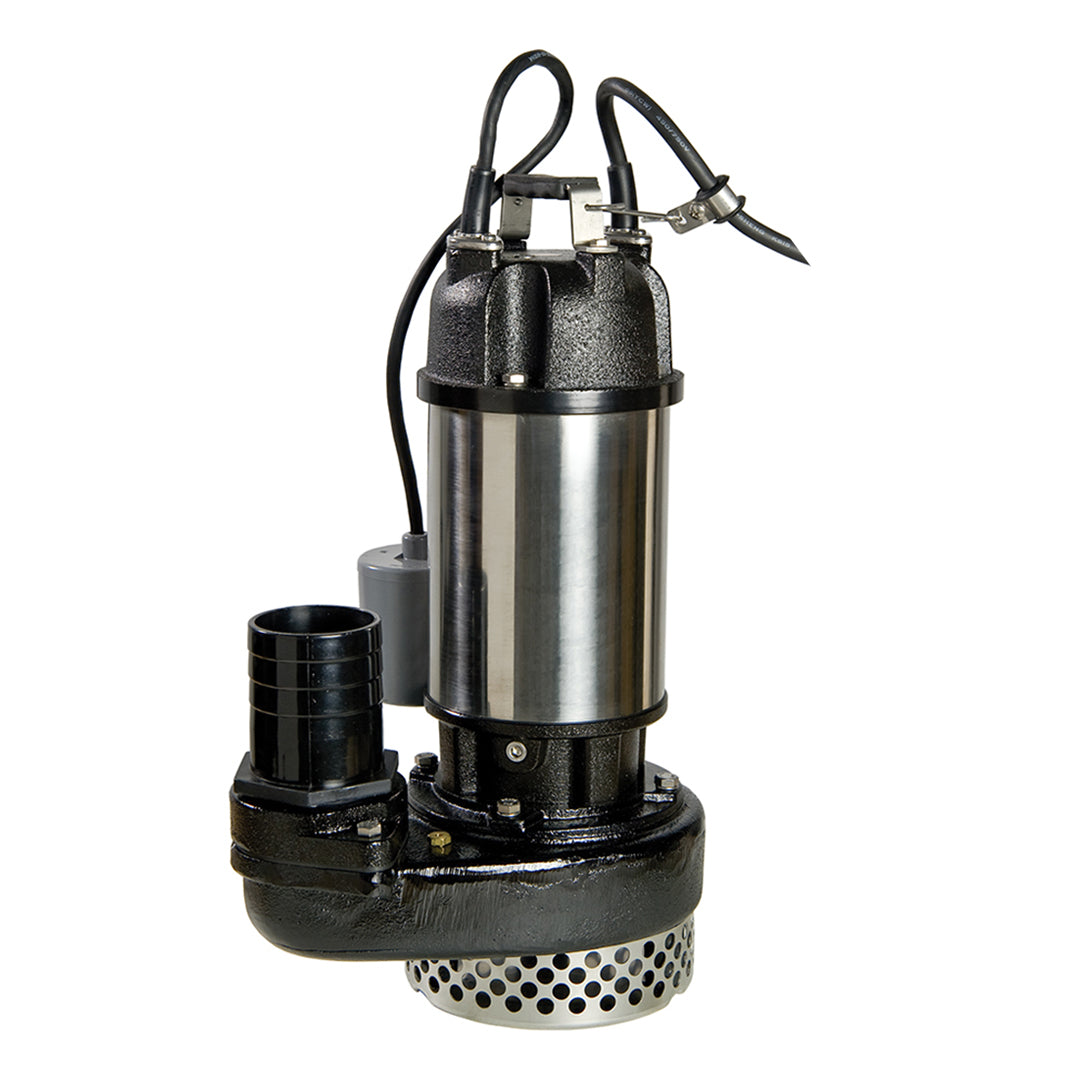

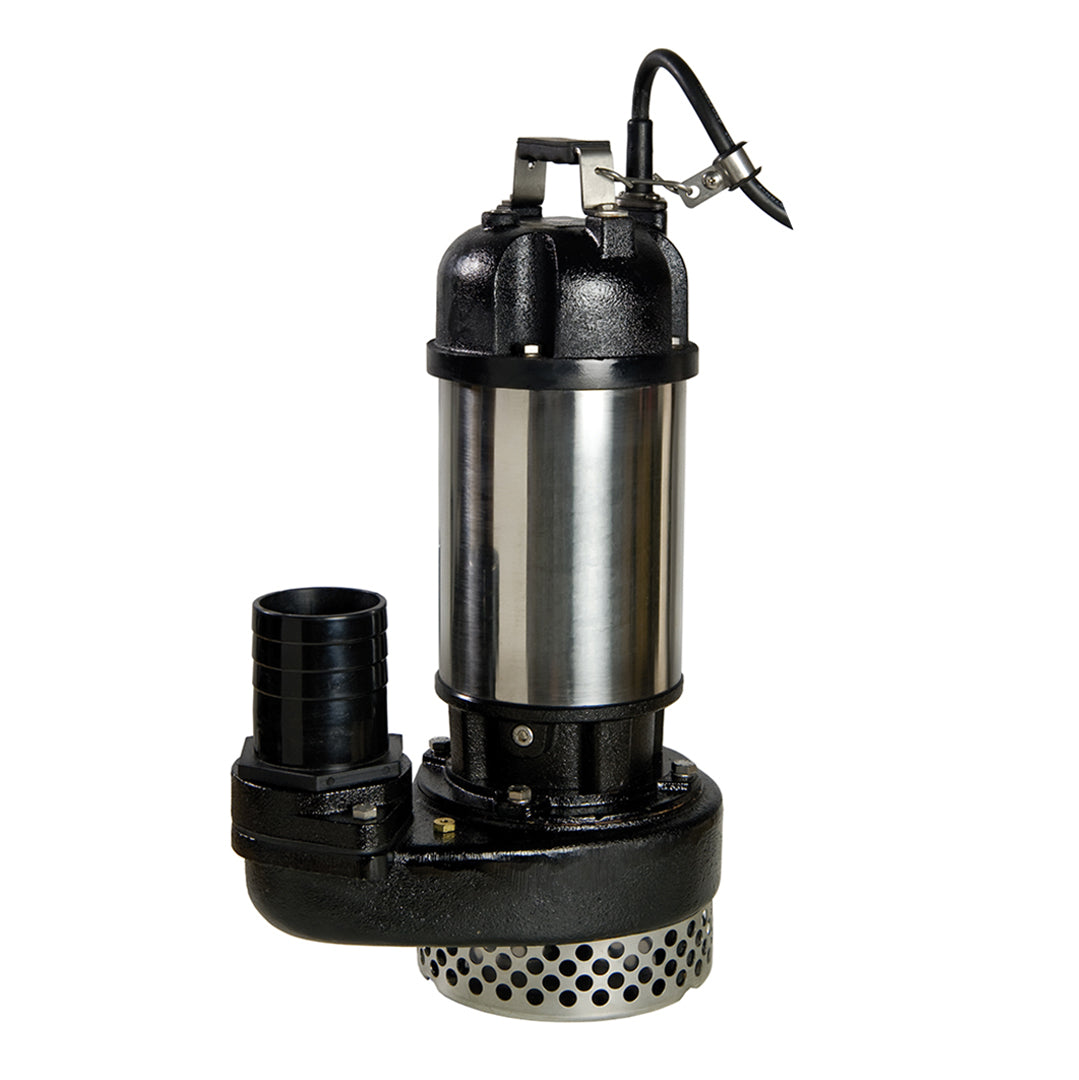

HD-15 Contractor's Sump Pump

Description

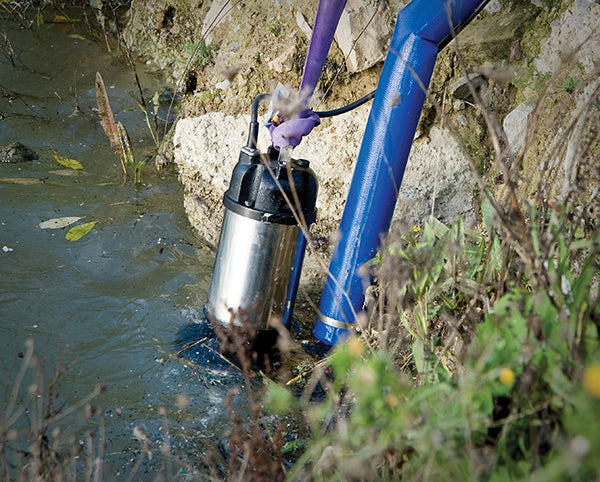

The HD-15 is a single phase contractors’ pump capable of very large flows from a relatively small, single phase motor. 110 volt models are designed primarily for use in site drainage applications, where the water contains sand and silt. Motors are continuously rated which enables the 230 volt ...

TECHNICAL DATA

  • Outlet (mm): 75
  • Motor output (kW): 1.15
  • Max head (m): 10
  • Phases: 1
  • Max flow (I/min): 830
  • Free passage (mm): 9
Skip to product information
1 of 4
Regular price £705.00 GBP
Regular price Sale price £705.00 GBP
Sale Sold out
Excluding VAT
View full details

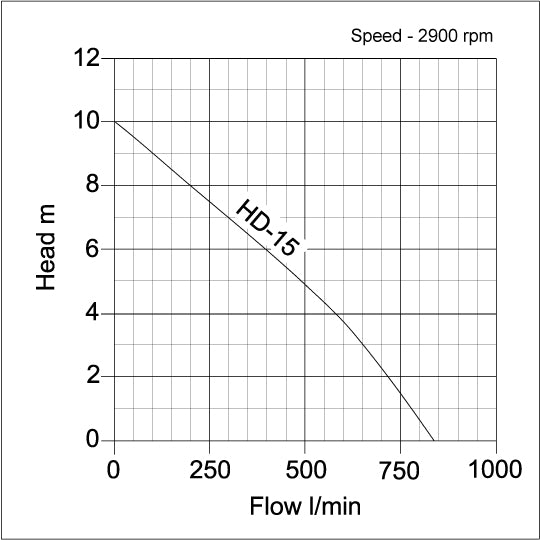

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelvolt (v)Outlet (mm)kWFlow (l/min)Head (mtrs)Free Passage (mm)WxLxH (mm)Dry weight (kg)
15-10-1062HD-15110V751.15830109190x310x50525.4
15-10-1097HD-15230V751.15830109190x310x50525.4
15-10-1099HD-15A - Auto110V751.15830109190x310x50526.1
15-10-1036HD-15A - Auto230V751.15830109190x310x50526.1

model

w X l X h (mm)

HD-15

190x310x505
