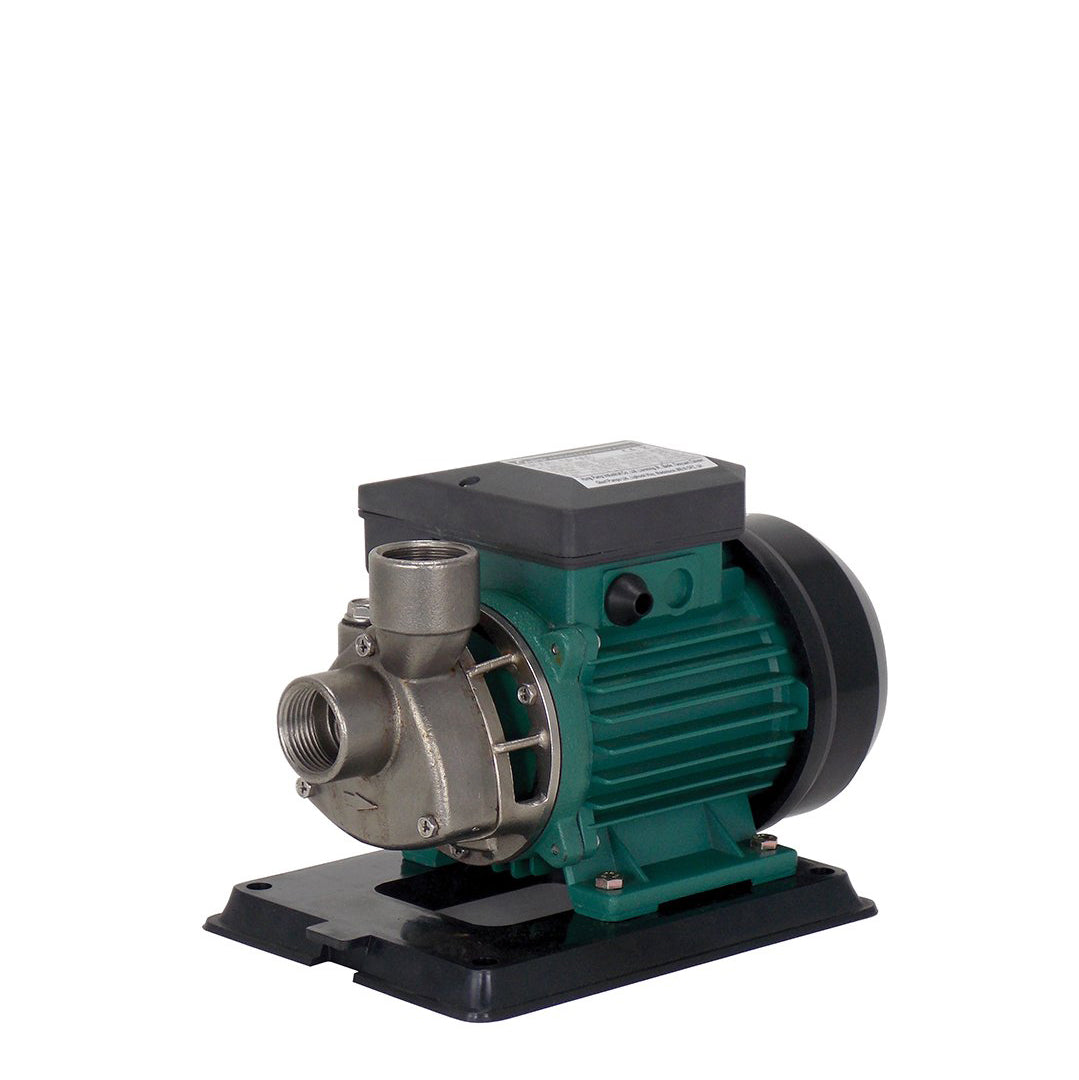

GP90(S) High Pressure Pump

Description

GP90(S) pumps are non self-priming, peripheral centrifugal pumps with brass or stainless-steel pump bodies. Capable of high heads and pressures in domestic and industrial applications. Optional pressure controller (see here) will provide dry-run protection and automatic operation.

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.2
  • Max head (m): 28
  • Phases: 1 & 3
  • Max flow (I/min): 40
  • APP GP90(S) High Pressure Pump- stainless steel
  • GP90(S) High Pressure Pump- pump curve graph
1 2
£116.00 GBP
£116.00 GBP
Sale Sold out
Excluding VAT
View full details
  • APP GP90(S) High Pressure Pump- stainless steel
  • GP90(S) High Pressure Pump- pump curve graph

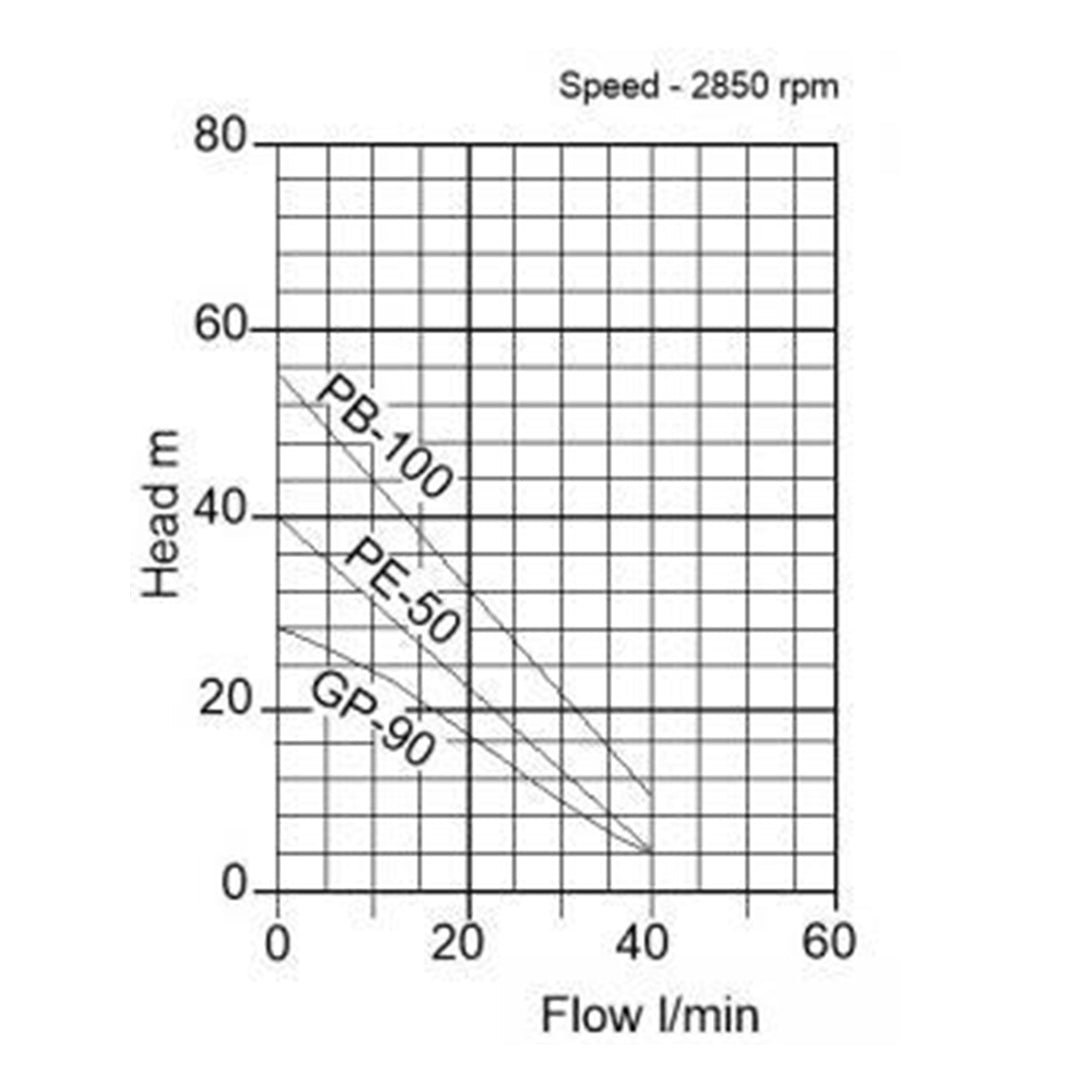

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelVolt (v)Inlet (mm)Outlet (mm)kWFlow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
15-15-1001GP90(S)110V1" BSPF1" BSPF0.240281702521686.5
15-15-1002GP90(S)230V1" BSPF1" BSPF0.240281702521686.5
15-15-1003GP90(S)400V1" BSPF1" BSPF0.240281702521686.5

model

w X l X h (mm)

GP90(S)

170x252x168
