Image from Product Description

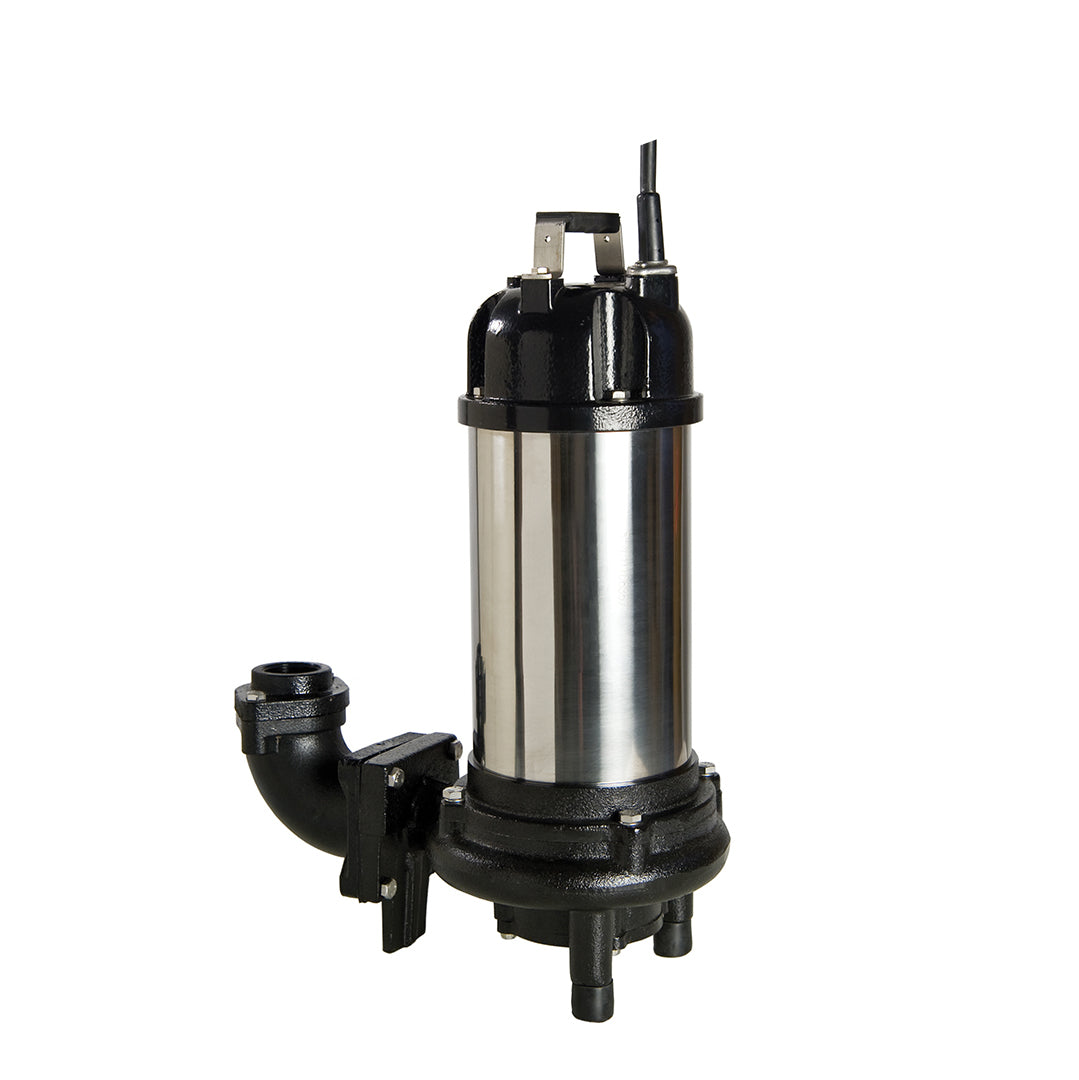

GD-20 Industrial Grinder Pump

Description

The GD sewage grinder pumps are for use in sewage stations and for servicing individual, or groups of, houses where drainage by gravity is not possible. They are ideally suited to applications where effluent is required to be pumped over a long distance, through a small bore pipe. The cutting ...

TECHNICAL DATA

  • Outlet (BSPF): 1¼"
  • Motor output (kW): 1.5
  • Max head (m): 23
  • Phases: 1 & 3
  • Max flow (I/min): 210
Skip to product information
1 of 3
Regular price £744.00 GBP
Regular price Sale price £744.00 GBP
Sale Sold out
Excluding VAT
View full details
PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModel

Manual/

Automatic

Outlet (FBSP)kWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
15-10-1044GD-20M1¼" FBSP1.54001802524018552030.7

model

w X l X h (mm)

GD-20

240x185x520
