Image from Product Description

GC High Head Submersible Pumps

Description

The GC-50 and GC-75 grinder pumps are for use in sewage stations and for servicing groups of houses where drainage by gravity is not possible. They are ideally suited to applications where effluent is required to be pumped over a long distance, through a small-bore pipe. The high heads produced,...

TECHNICAL DATA

  • Outlet (BSPF): 2½"
  • Motor output (kW): 3.8 - 5.6
  • Max head (m): 42 - 50
  • Phases: 3
  • Max flow (I/min): 330
Skip to product information
1 of 2
Regular price £1,622.00 GBP
Regular price Sale price £1,622.00 GBP
Sale Sold out
Excluding VAT
View full details

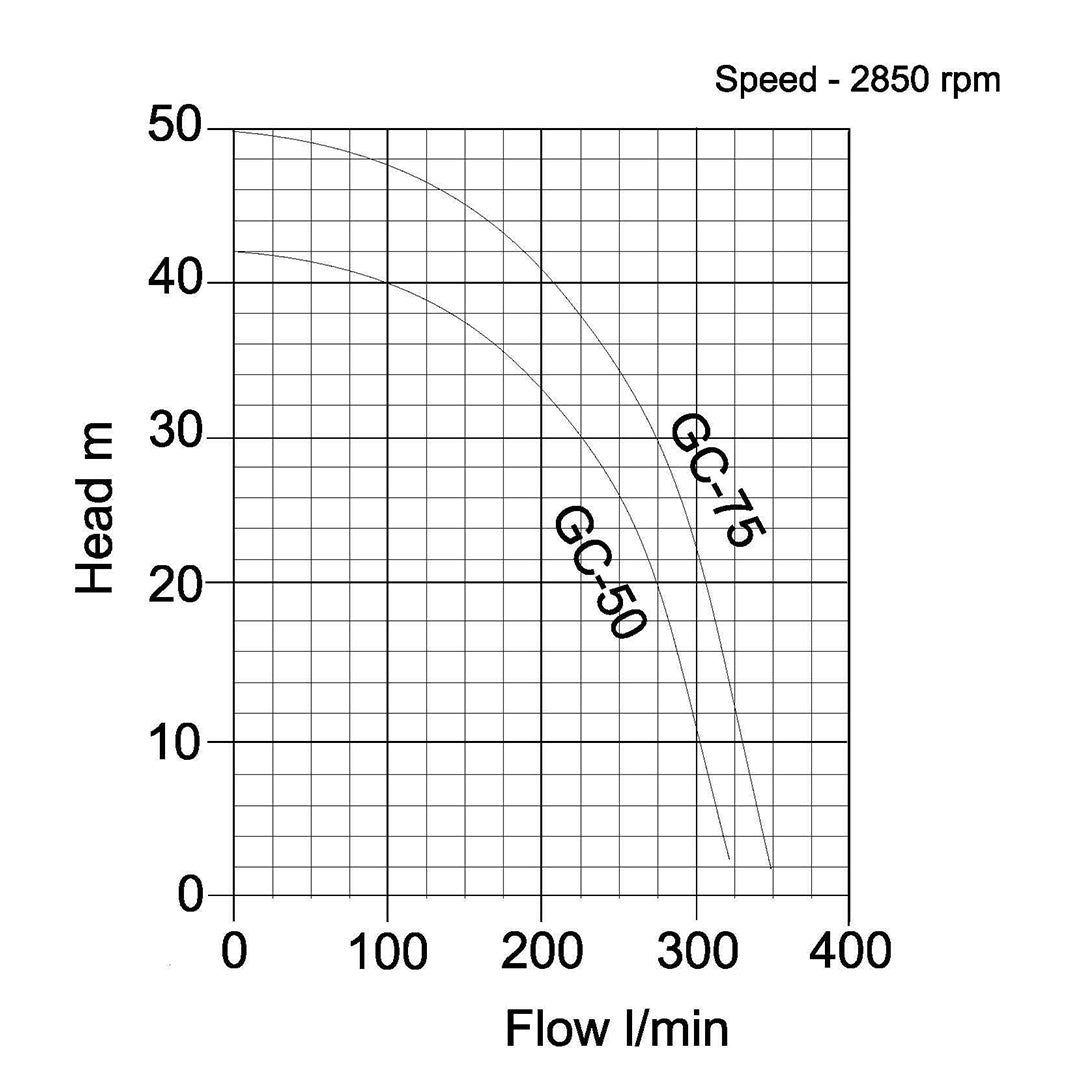

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelOutlet (BSPF)kWVolt (V)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
15-10-1106GC-502 1/2"3.8400V3304227030081080
15-10-1040GC-752 1/2"5.6400V3505027030081088

model

w X l X h (mm)

GC

270x300x810
