GA(M)100 Single Stage Centrifugal Pump

Description

GA(M)100 is a non self-priming, single-stage, centrifugal pump. With an open impeller, it can pump non-aggressive liquids, which are slightly dirty and is designed for irrigation and general circulation, in industrial applications. Optional pump control and energy management systems are availabl...

TECHNICAL DATA

  • Outlet (BSPF): 1½"
  • Inlet (BSPF): 1½"
  • Motor output (kW): 0.75
  • Max head (m): 17
  • Phases: 1
  • Max flow (I/min): 260

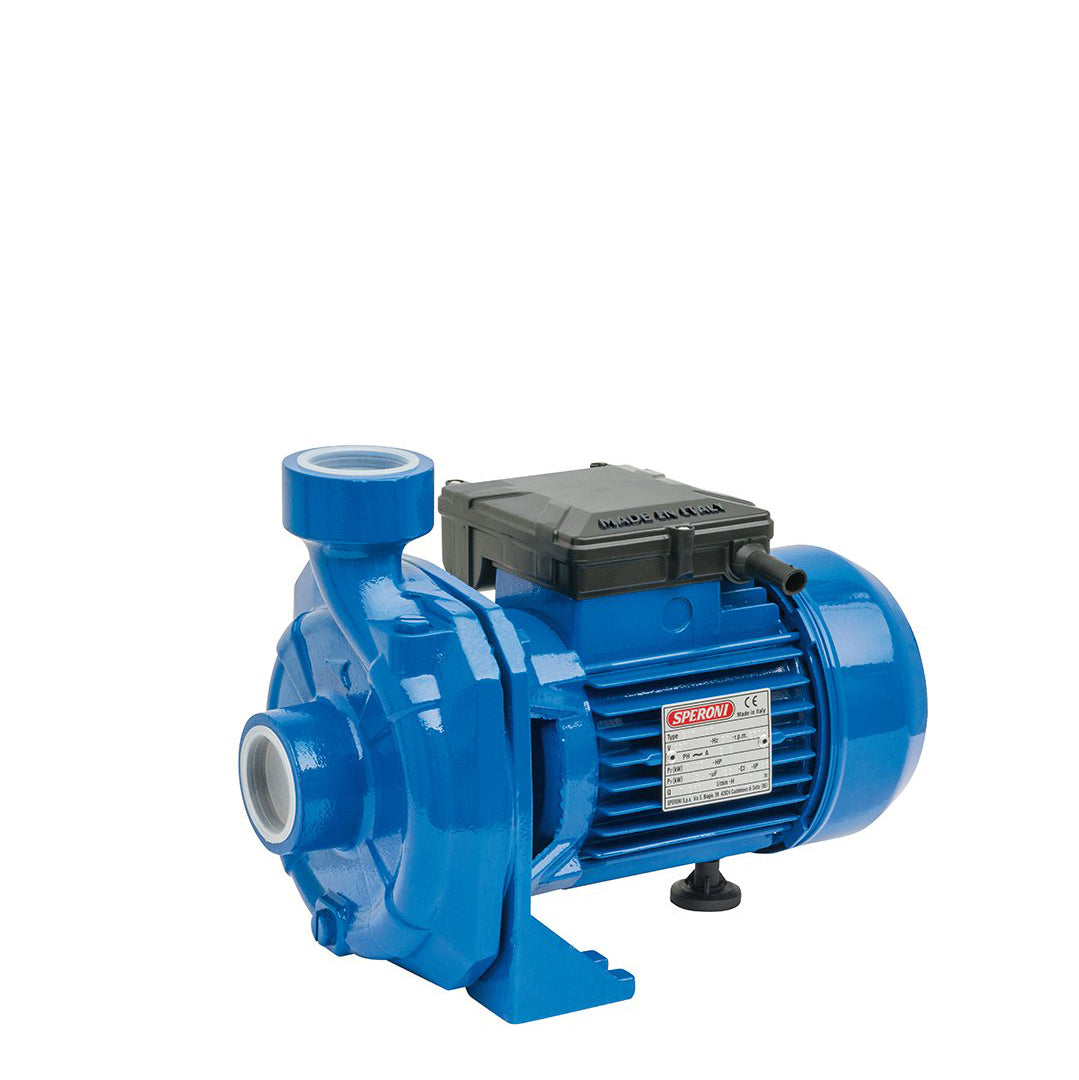

  • Speroni blue GA(M)100 Single Stage Centrifugal Pump

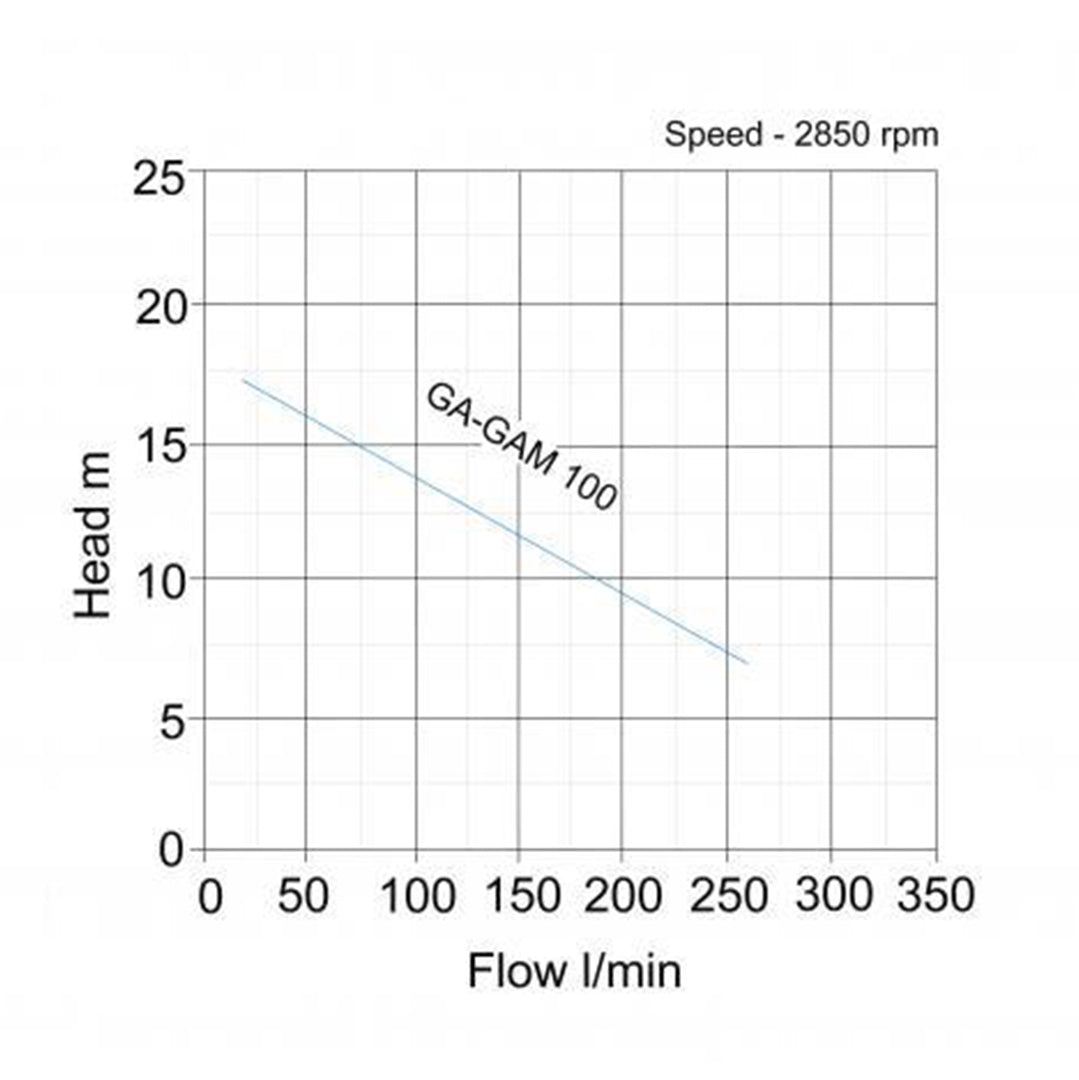

  • GA(M)100 Single Stage Centrifugal Pump- pump curve graph
1 2
£218.00 GBP
£218.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni blue GA(M)100 Single Stage Centrifugal Pump
  • GA(M)100 Single Stage Centrifugal Pump- pump curve graph
PERFORMANCE CURVE
SPECIFICATIONS

GAM100

Item codeModelInlet (BSPF)Outlet (mm)kWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1071GAM1001 ½"1½"0.752302601718231123215

GA100

Item code

Model

Inlet (BSPF)

Outlet (mm)

kW

Volt (v)

Flow (l/min)

Head (metres)

Width (mm)

Length (mm)

Height (mm)

Dry weight (kg)

19-15-1224

GA100

1 ½"

1½"

0.75

400

260

17

182

311

232

15

model

w X l X h (mm)

GA(M)100

182x311x232
