Image from Product Description

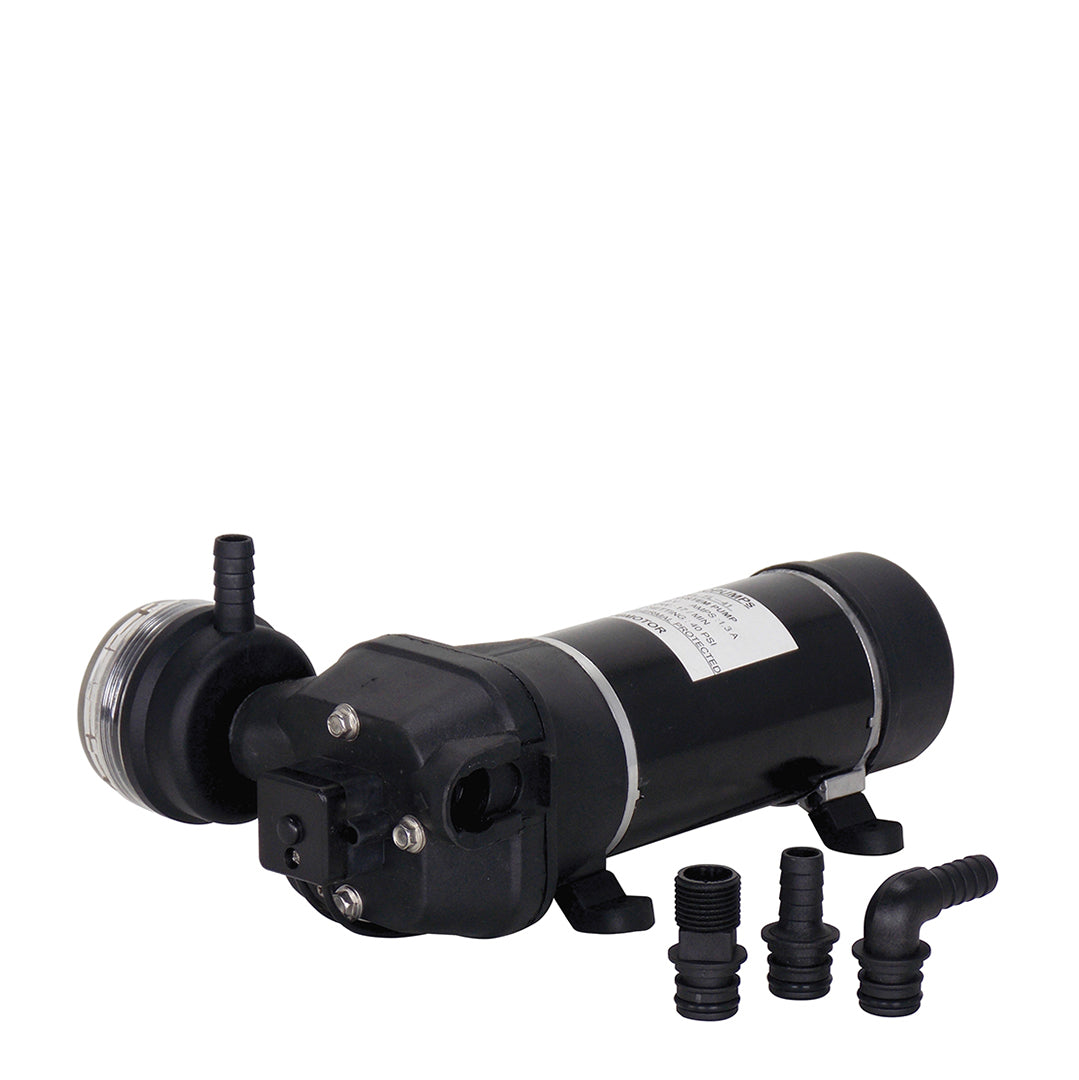

FL Self Priming Water Pumps

Description

The FL series are demand pumps for intermittent use applications. They are self-priming and will automatically turn on and off when a tap, or valve, is opened and closed. They can also be run dry. Suitable for a variety of applications and processes e.g. vehicle mounted sprayers, chemical trans...

TECHNICAL DATA

  • Outlet (mm & mBSP): 13 & ½"
  • Inlet (mm): 13
  • Max pressure (bar): 3
  • Volt: 12 DC - 230v
  • Max flow (I/min): 17
  • Obart Select FL Self Priming Water Pumps black
1 1

£87.00 GBP
£87.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Obart Select FL Self Priming Water Pumps black
SPECIFICATIONS

FL-40

Item code

Model

Outlet (mm)

Volt (v)

Inlet (mm)

Check valve (material)

Diaphragm (material)

Max Pressure (bar)

Max Flow (I/mm)

Dia x I (mm)

Length (mm)

Dry weight (kg)

12-15-1005

FL-40

13mm & 1/2" mBSP

12v DC

13

EPDM

santoprene®

3

17

75

280

2.5

12-15-1010

FL-40

13mm & 1/2" mBSP

24v DC

13

EPDM

santoprene®

3

17

75

280

2.5

FL-41

Item codeModelOutlet (mm)Volt (v)Inlet (mm)Check valve (material)Diaphragm (material)Max Pressure (bar)Max Flow (I/mm)Dia x I (mm)Length (mm)Dry weight (kg)
12-15-1011FL-4113mm & 1/2" mBSP110V13EPDMsantoprene®317752802.5

FL-43

Item codeModelOutlet (mm)Volt (v)Inlet (mm)Check valve (material)Diaphragm (material)Max Pressure (bar)Max Flow (I/mm)Dia x I (mm)Length (mm)Dry weight (kg)
12-15-1018FL-4313mm & 1/2" mBSP230V13EPDMsantoprene®317752802.5

model

w X l X h (mm)

FL

75x280x75
