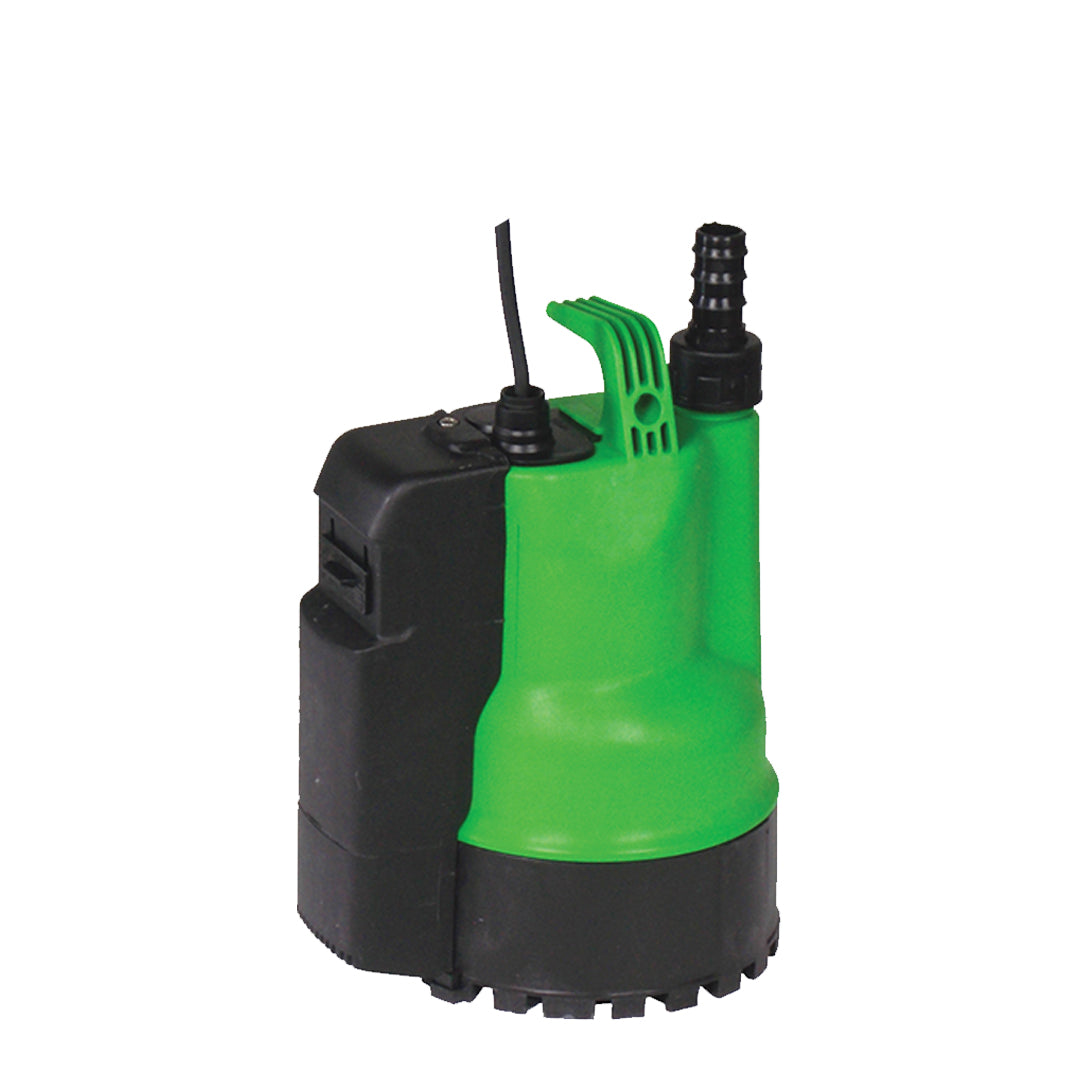

Ego 500 Dual Control Puddle Sucker Pump

Description

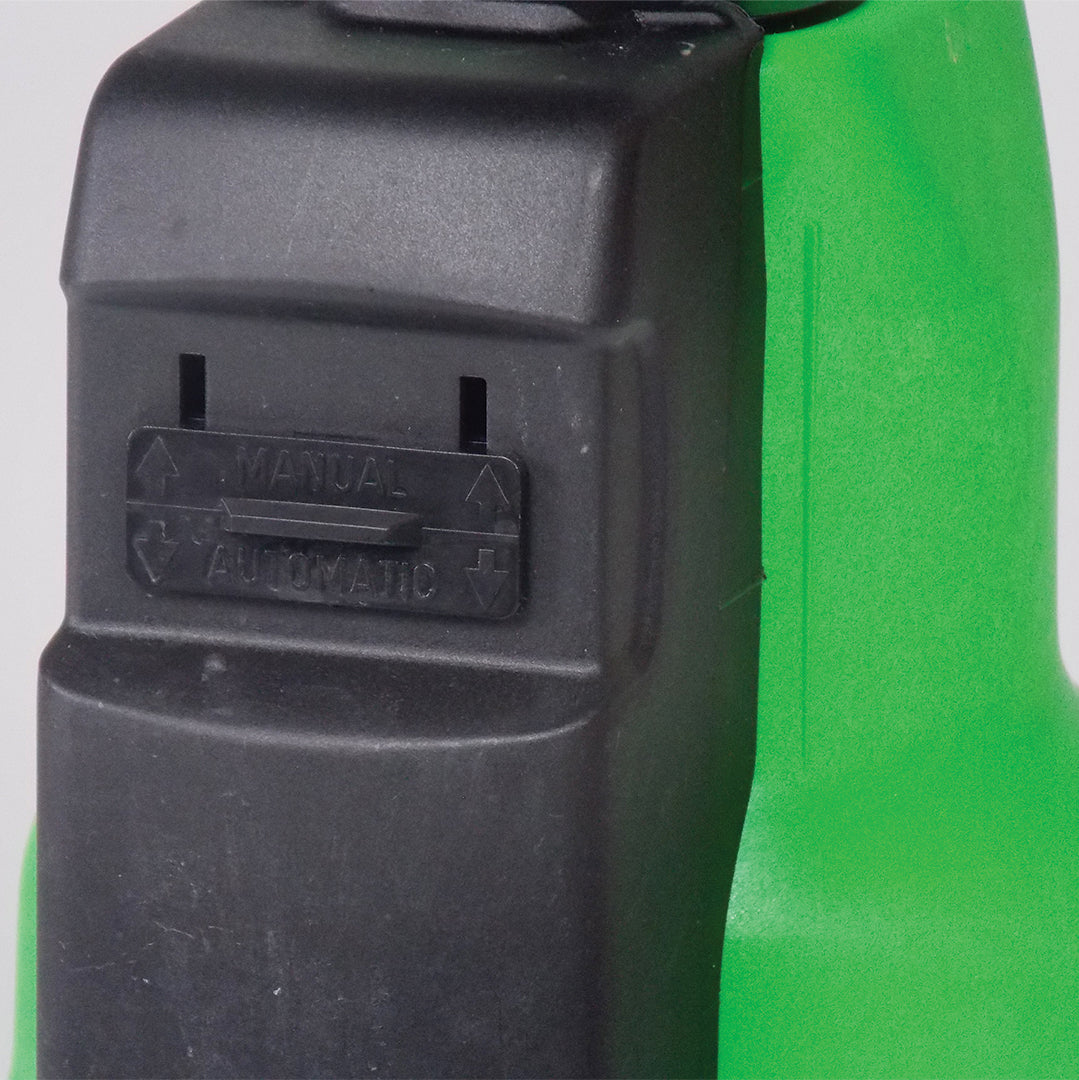

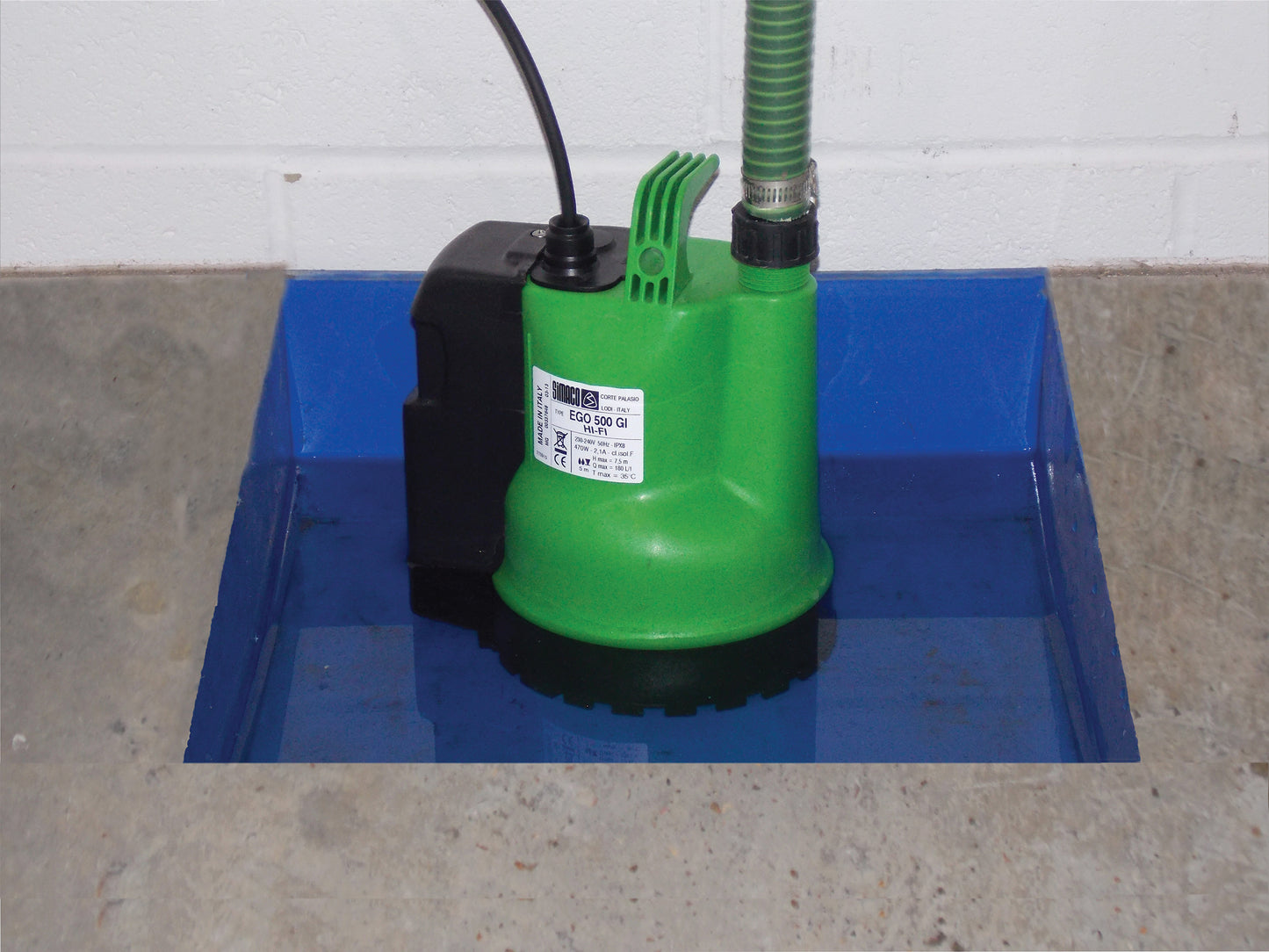

The EGO 500 has a top discharge design and a compact float switch for use in areas with limited space, which may be also shallow and/or contain low levels of water. It features dual control, which allows the float switch to be switched to “on” or “off” by the user, to enable automatic or manual...

TECHNICAL DATA

  • Outlet (mm): 25
  • Motor output (kW): 0.47
  • Max head (m): 7.5
  • Phases: 1
  • Max flow (I/min): 170
  • Free passage (mm): 9
Skip to product information
1 of 4
Regular price £178.00 GBP
Regular price Sale price £178.00 GBP
Sale Sold out
Excluding VAT
View full details
PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelManual or AutoOutlet
(mm)
kWVolt (v)Flow (l/min)Head (mtrs)Free Passage (mm)WxLxH (mm)On Level (mm)Off Level (mm)Dry weight (kg)
12-10-1008EGO 500Both250.47230V1707.59168x206x280130703.6

model

w X l X h (mm)

Ego 500

168x206x280
