EEM-20 Diesel Pumping Kit

Description

The EEM-20 is a self-priming diesel pumping kit, suitable also for pumping biodiesel or just water.  This pumping kit includes suction hose (with a foot-valve and strainer), delivery hose, swivel couplings and manual trigger nozzle*. It can be operated safely for up to 5 minutes with the nozzle...

TECHNICAL DATA

  • Outlet (mm): 20
  • Inlet (mm): 20
  • Motor output (kW): 0.37
  • Max head (m): 22
  • Phases: 1
  • Max flow (I/min): 28

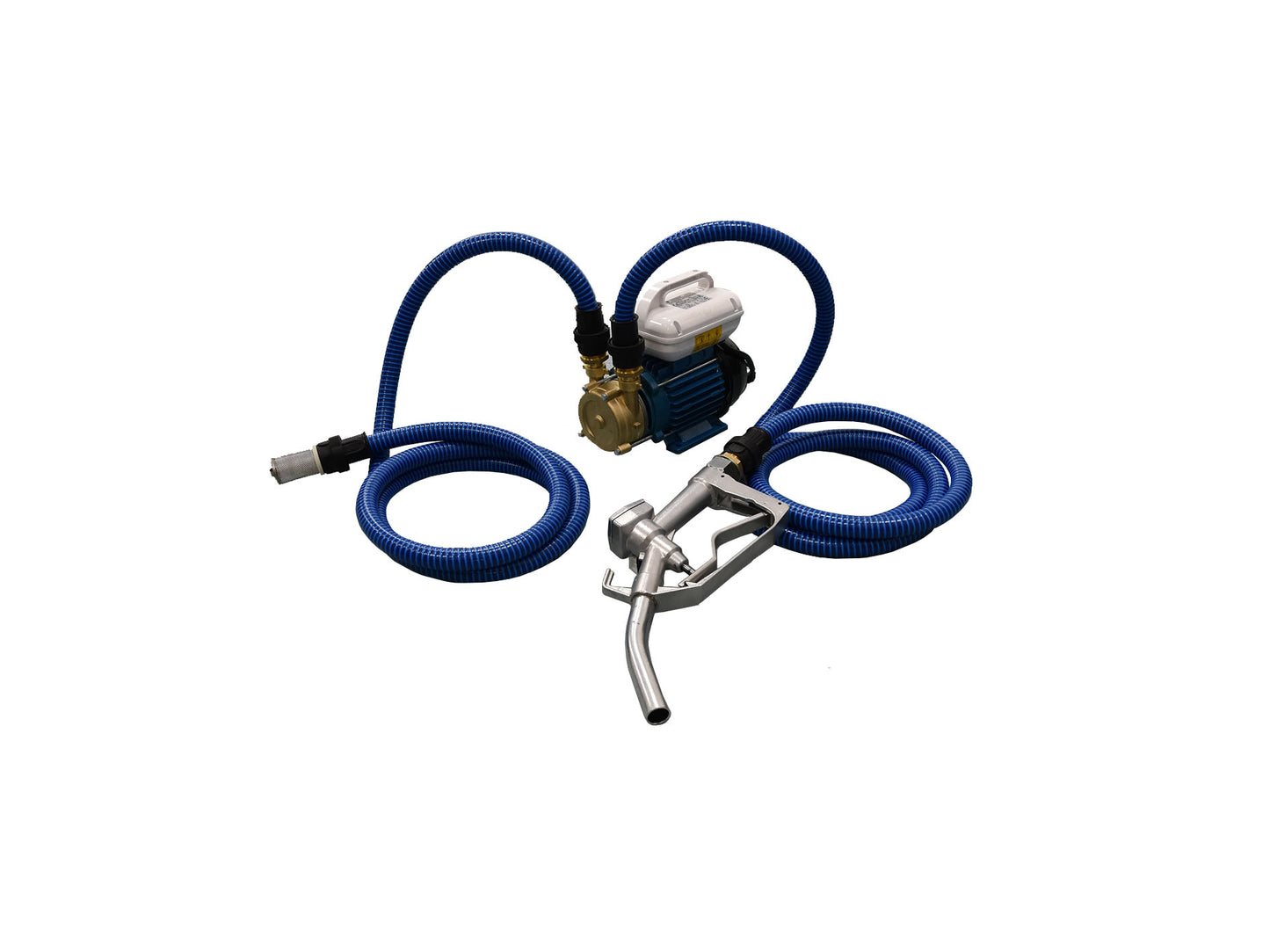

  • Obart Select EEM-20 Diesel Pumping Kit

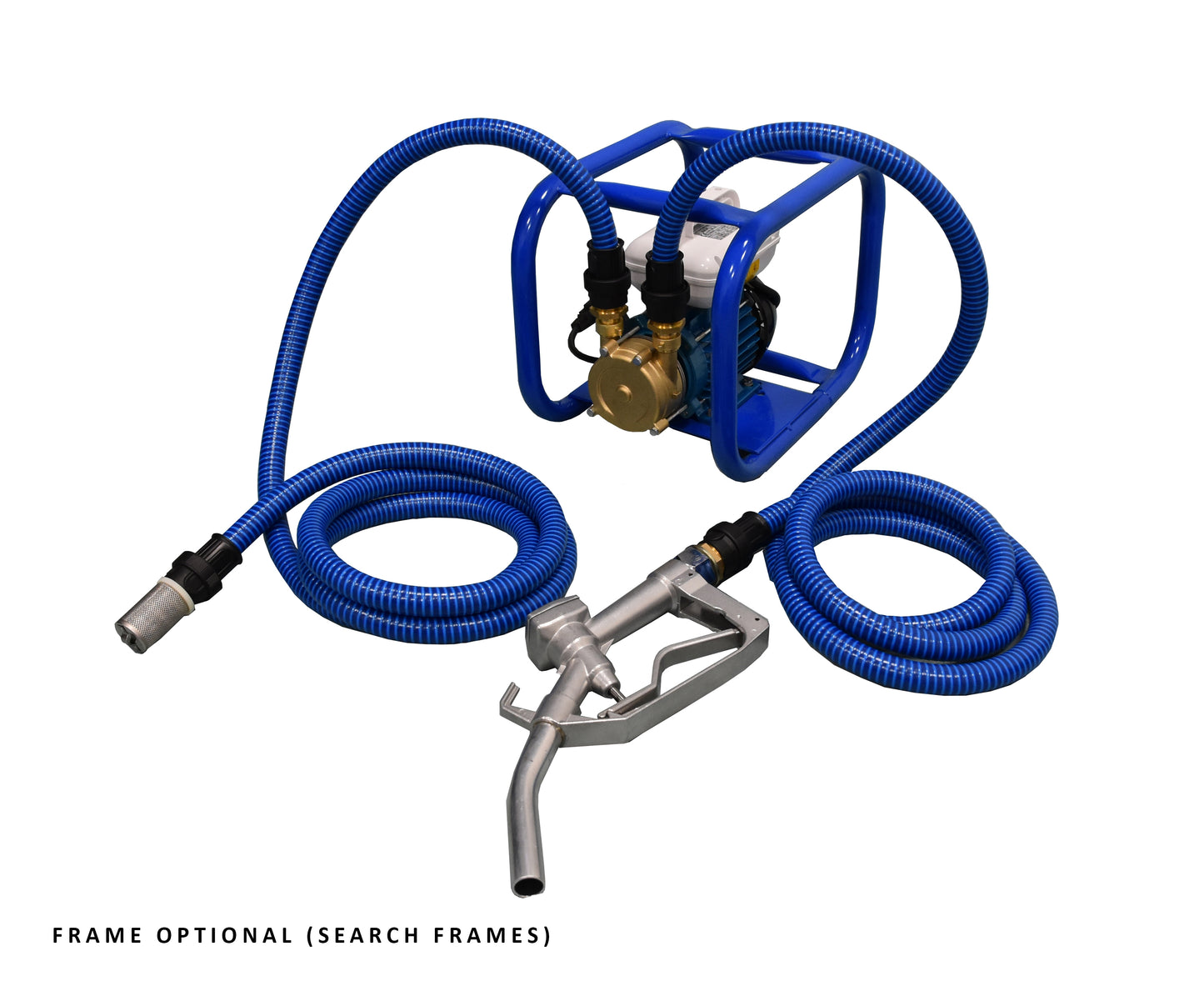

  • Obart Select EEM-20 Diesel Pumping Kit with full protection blue tubular frame
1 2
£238.00 GBP
£238.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Obart Select EEM-20 Diesel Pumping Kit
  • Obart Select EEM-20 Diesel Pumping Kit with full protection blue tubular frame
SPECIFICATIONS

Specifications

Item codemodel

inlet (mm)

outlet (mm)kWvolt (v)flow (ltr/min)head        (mtrs)w x l x h          (mm)dry weight     (kgs)code
12-15-1028EEM20 c/w kit20200.371102822120x248x2455.302
12-15-1030EEM20 c/w kit20200.372302822120x248x2455.302
12-85-1067Optional extra: full protection frame (type: FR001)260x370x2903.2053.002

model

w X l X h (mm)

EEM20 c/w kit

120x248x245

EEM20 c/w kit and frame

260x370x290
