DSPK Submersible Cutter Pumps

Description

The DSPK range of cutter pumps are for sewage where destructible solids need to be reduced and pumped over a short or medium distance. The impeller rotates against a serrated suction cover to cut solids before pumping. Supplied as standard free-standing, an optional auto coupling set is availa...

TECHNICAL DATA

Outlet (mm/BSPF): 50mm & 4"
Motor output (kW): 0.75 - 7.5
Max head (m): 13 - 27
Phases: 1 & 3
Max flow (I/min): 430 - 2500
Free passage (mm): 20 - 65

1 7

£646.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

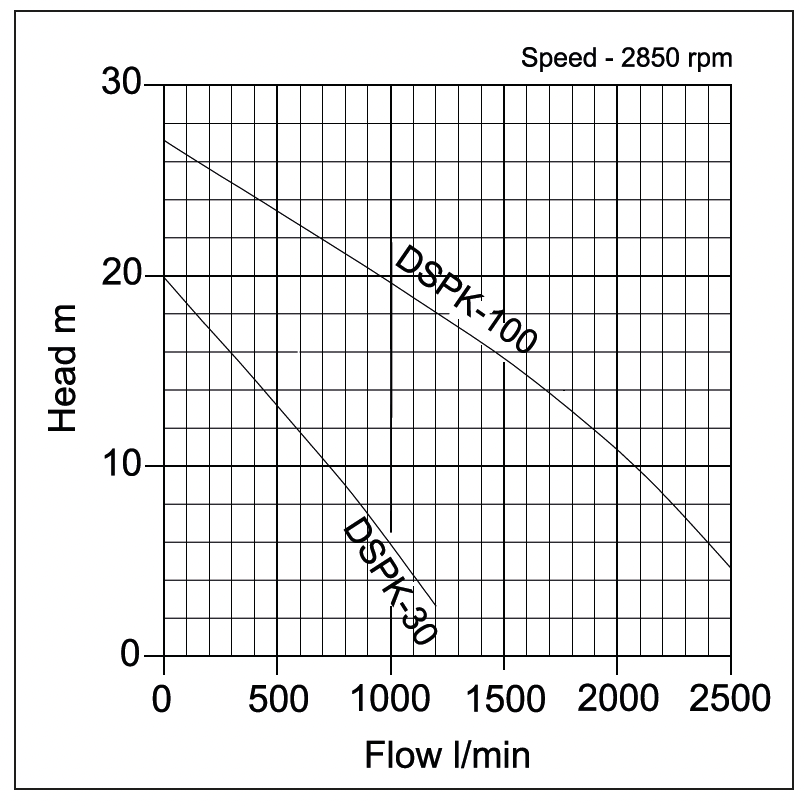

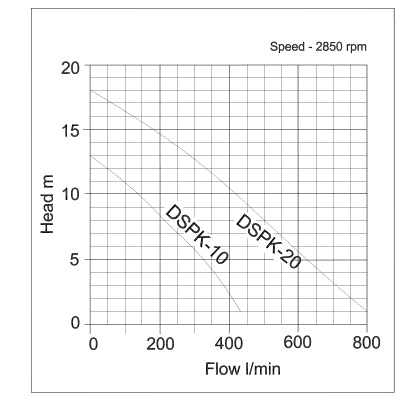

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue

DSPK Catalogue Page

Tsurumi Catalogue 2024 - Page 72

Specifications

Item Code	Model	Outlet (mm/BSPF)	kW	Volt (v)	Flow (l/min)	Head (metres)	Free Passage (mm)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
15-10-1104	DSPK-10	50	0.75	230	430	13	20	190	255	445	19.9
15-10-1085	DSPK-10 - Auto	50	0.75	230	430	13	20	190	255	445	21
15-10-1063	DSPK-20	80	1.5	230	700	15	20	190	255	455	38
15-10-1067	DSPK-20	80	1.5	400	700	15	20	190	255	455	38
15-10-1029	DSPK-20 - Auto	80	1.5	230	700	15	20	190	255	455	39
15-10-1015	DSPK-30	3"	7.5	400	1200	20	40	220	430	625	58
