Diesel Pumping Nozzles

Description

  Gravity nozzles are for use with pumped and gravity systems. They are for manual operation i.e. they will not shut off automatically when rising fuel level covers the end of the spout. Automatic nozzles are for use with pumped systems only. They are for automatic operation i.e. they will shut ...

TECHNICAL DATA

Inlet (BSPF): 1"

Nozzle Diameter (mm): 25 - 32

Maximum flow (l/min): 80 - 140

N.B. Some cars will not accept these nozzles (please check with our sales department for guidance).

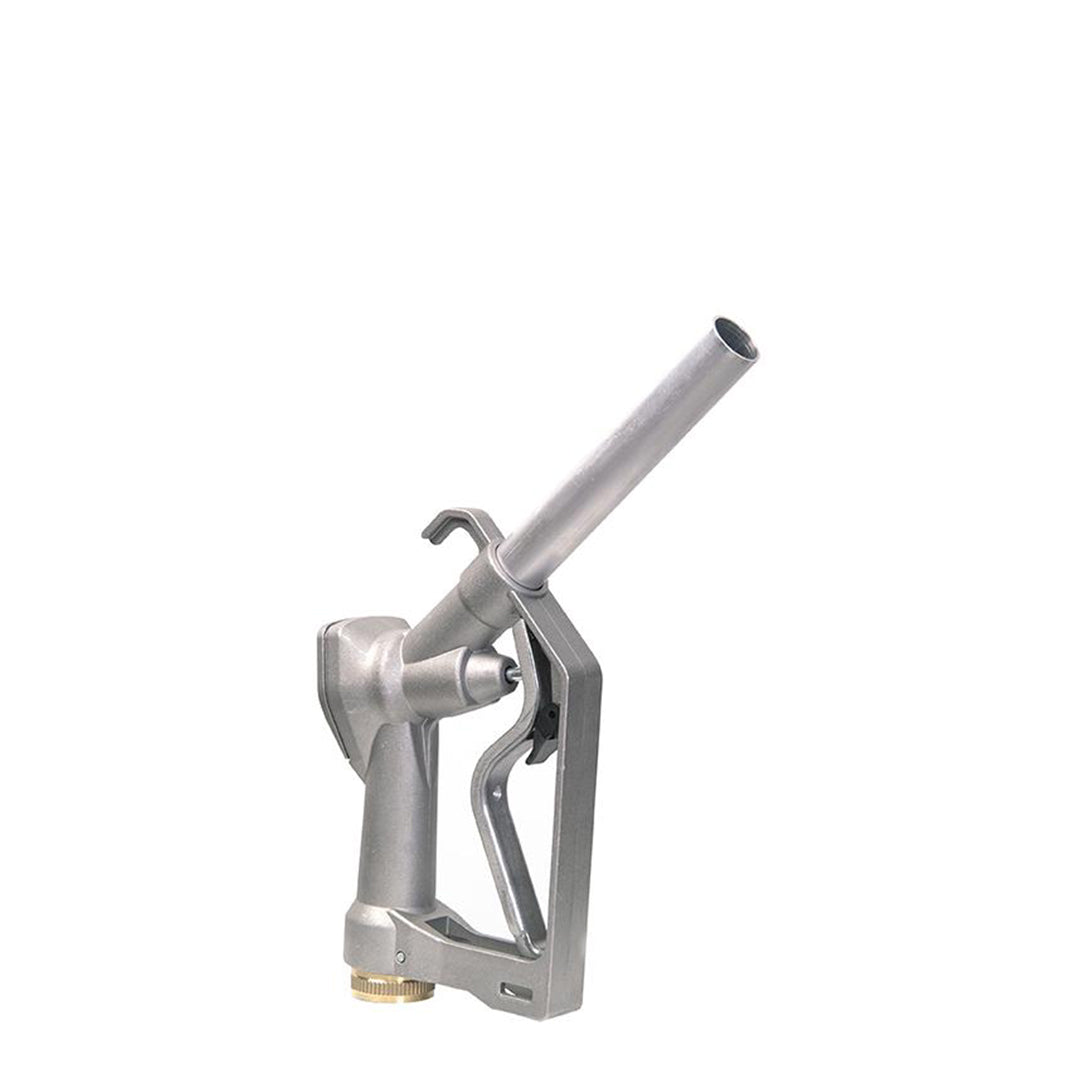

  • Obart Select Diesel Pumping Nozzles- Manual

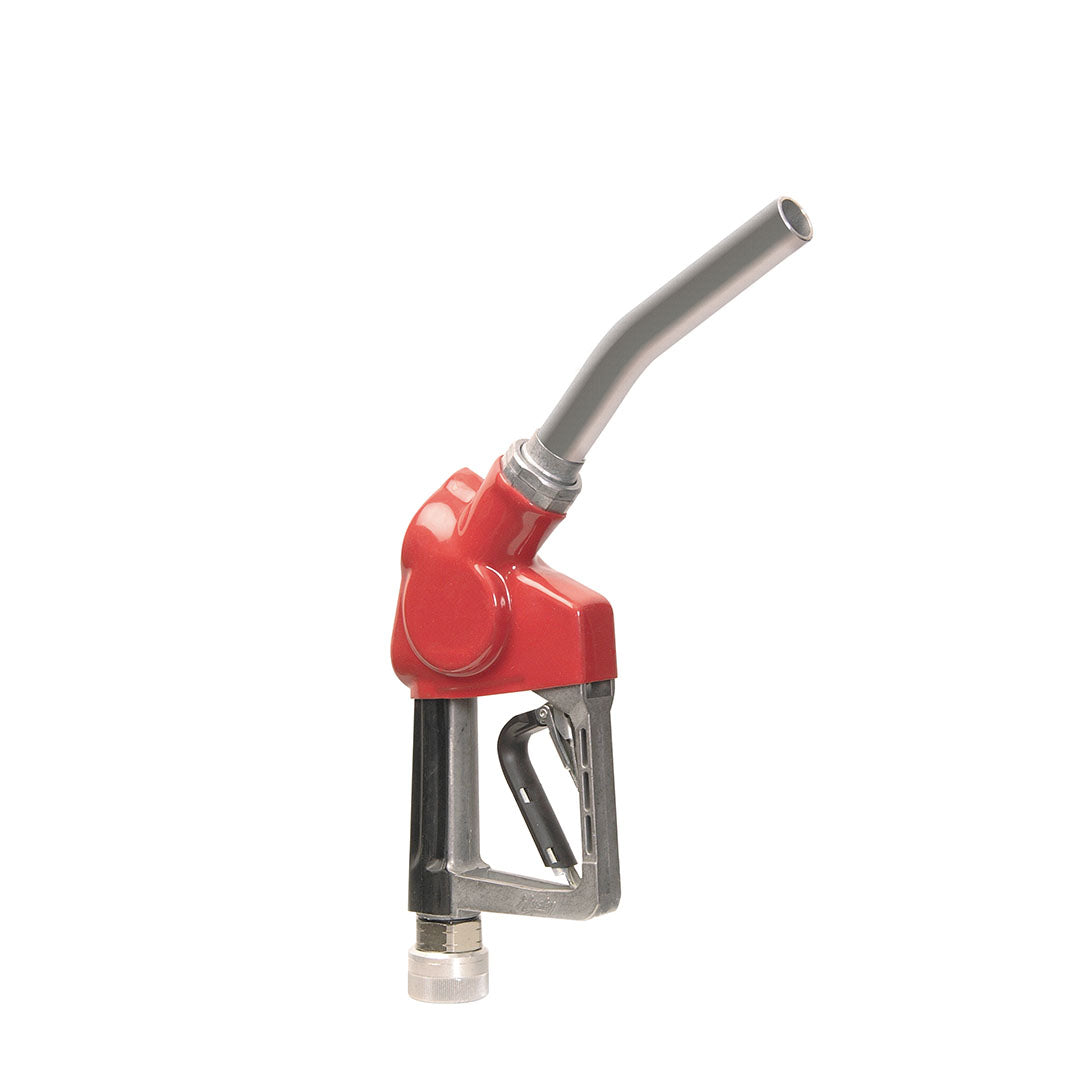

  • Obart Select Diesel Pumping Nozzles- Automatic
1 2
£24.00 GBP
£24.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Obart Select Diesel Pumping Nozzles- Manual
  • Obart Select Diesel Pumping Nozzles- Automatic
SPECIFICATIONS

Specifications

ITEM CODETYPEINLET (bspf)NOZZLE DIAMETER (mm)MAXIMUM FLOW (ltrs per min)DRY WEIGHT (kgs)
12-85-1051Gravity "A"1" 25800.8
12-85-1056Auto 60 1" 25601
12-85-1001Auto 801" 25801.2
12-85-1008Auto 1401”321401.4
