C(M)X Centrifugal Surface Pumps

Description

The CMX are non self-priming, single-stage, centrifugal pumps. They are designed for pressure boosting, water supply, treatment and irrigation, air-conditioning and general transfer applications, but can also pump moderately aggressive liquids*. Optional pump control and energy management syste...

TECHNICAL DATA

  • Outlet (BSPF): 1" - 1 1/4"
  • Inlet (BSPF): 1 1/4" - 2"
  • Motor output (kW): 0.37 - 2.2
  • Max head (m): 19 - 24
  • Phases: 1 & 3
  • Max flow (I/min): 100 - 550

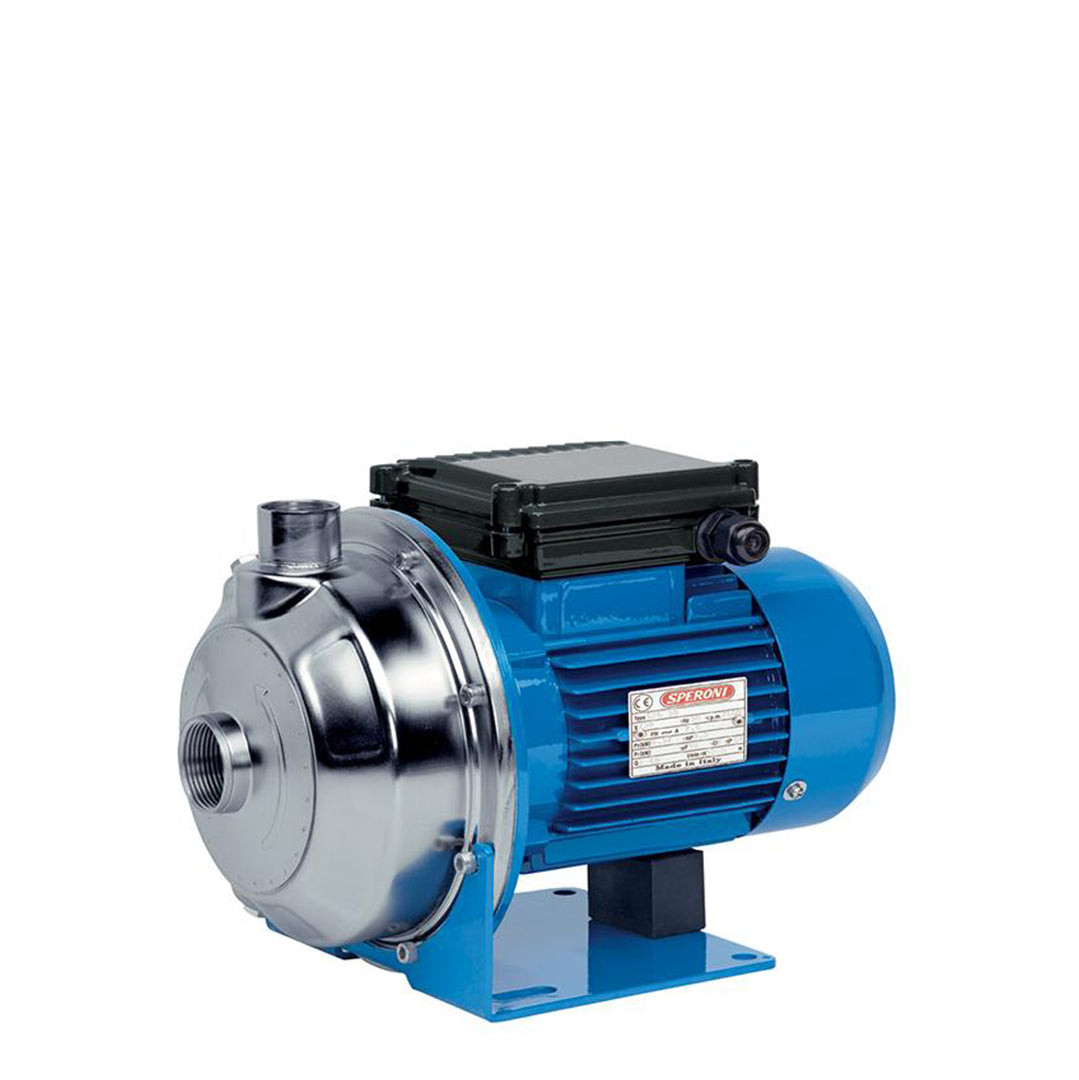

  • Speroni blue CX(M) Centrifugal Surface Pump
  • CX(M) Centrifugal Surface Pump- pump curve graph 1
  • CX(M) Centrifugal Surface Pump- pump curve graph 2
1 3
£419.00 GBP
£419.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni blue CX(M) Centrifugal Surface Pump
  • CX(M) Centrifugal Surface Pump- pump curve graph 1
  • CX(M) Centrifugal Surface Pump- pump curve graph 2

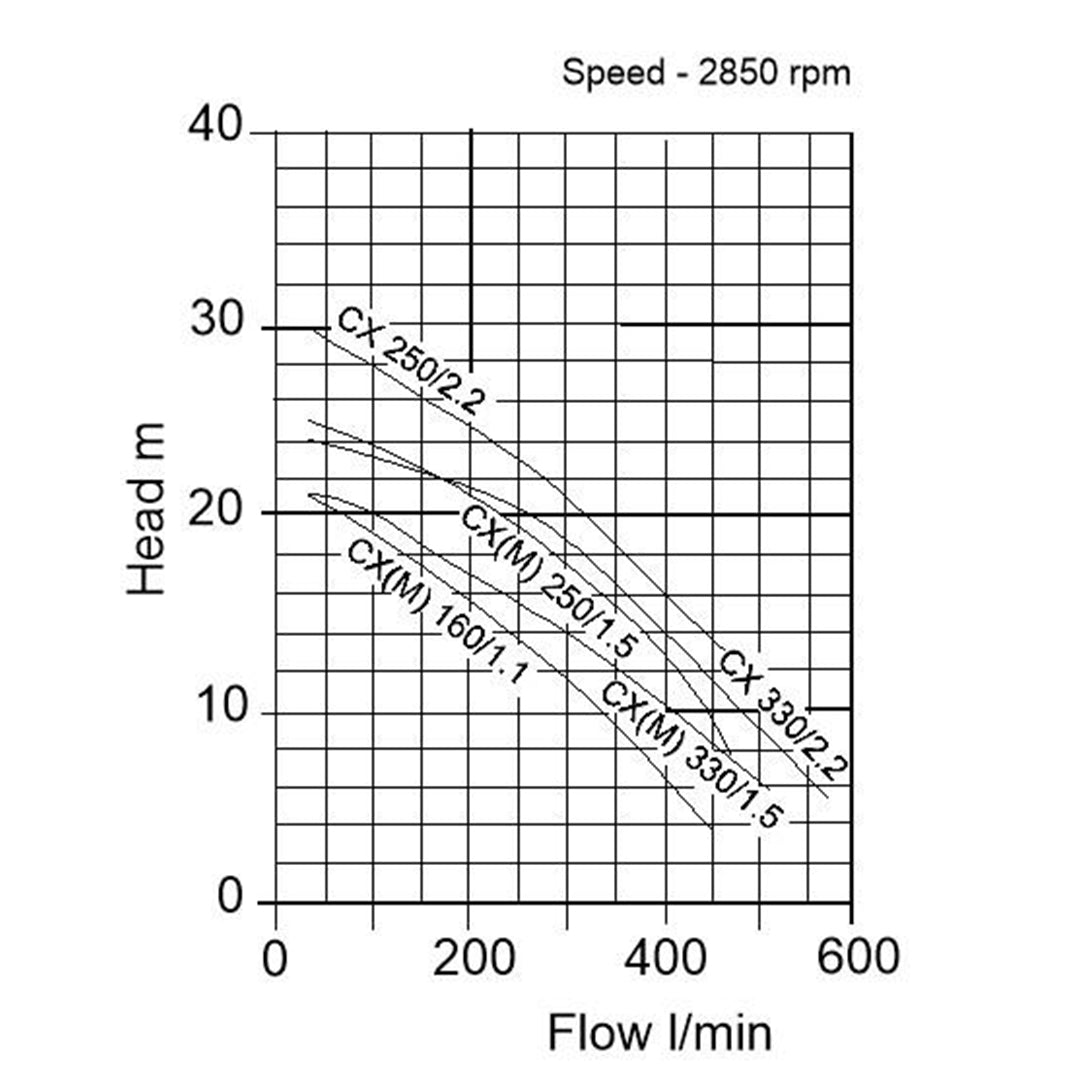

PERFORMANCE CURVE
SPECIFICATIONS

CMX 330/2.2

ModelInlet (BSPF)Outlet (BSPF)KWVolt (v)Flow (I/min)Head (Mtrs)W x L x H (mm)Dry weight (kgs)
CX 330/2.21 ½1 ¼2.223057524415x216x25723

model

w X l X h (mm)

C(M)X 60

216x333x227

C(M)X 100

216x360x227

C(M)X 160

216x371x238

C(M)X 250/1.5

216x371x238

C(M)X 250/2.2

216x418x245

C(M)X 330/1.5

216x371x238

C(M)X 330/2.2

216x418x245
