C(M) Single Impeller Surface Pump

Description

The C(M) series pumps are non-self priming, single-stage, mono-bloc centrifugal pumps. They are designed for pumping clean water only in many domestic, industrial and agricultural applications. Optional pressure control and pump management systems are available (see here).

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.37 - 4
  • Max head (m): 20 - 56
  • Phases: 1 & 3
  • Max flow (I/min): 100 - 360

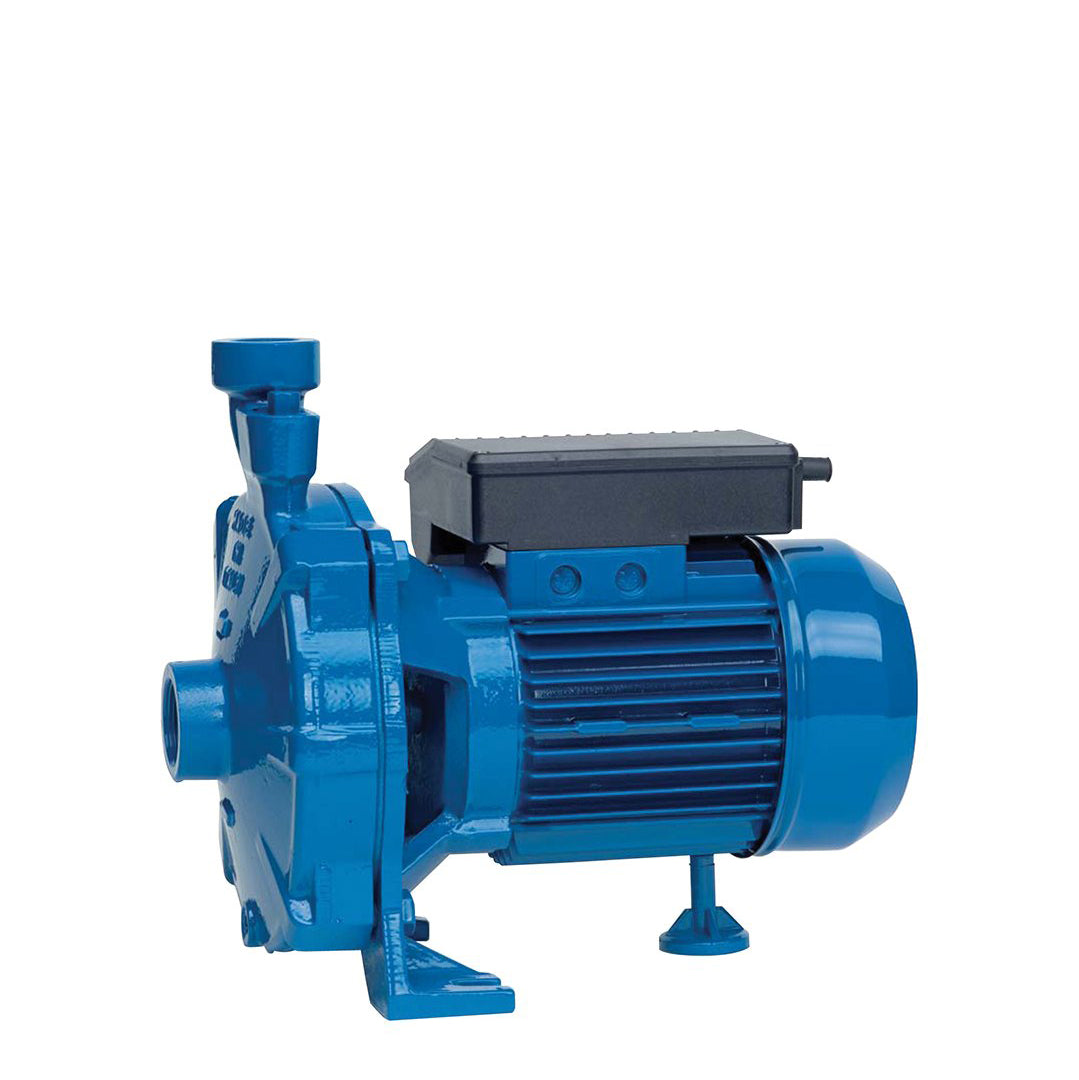

  • Speroni Blue C(M) Single Impeller Surface Pump

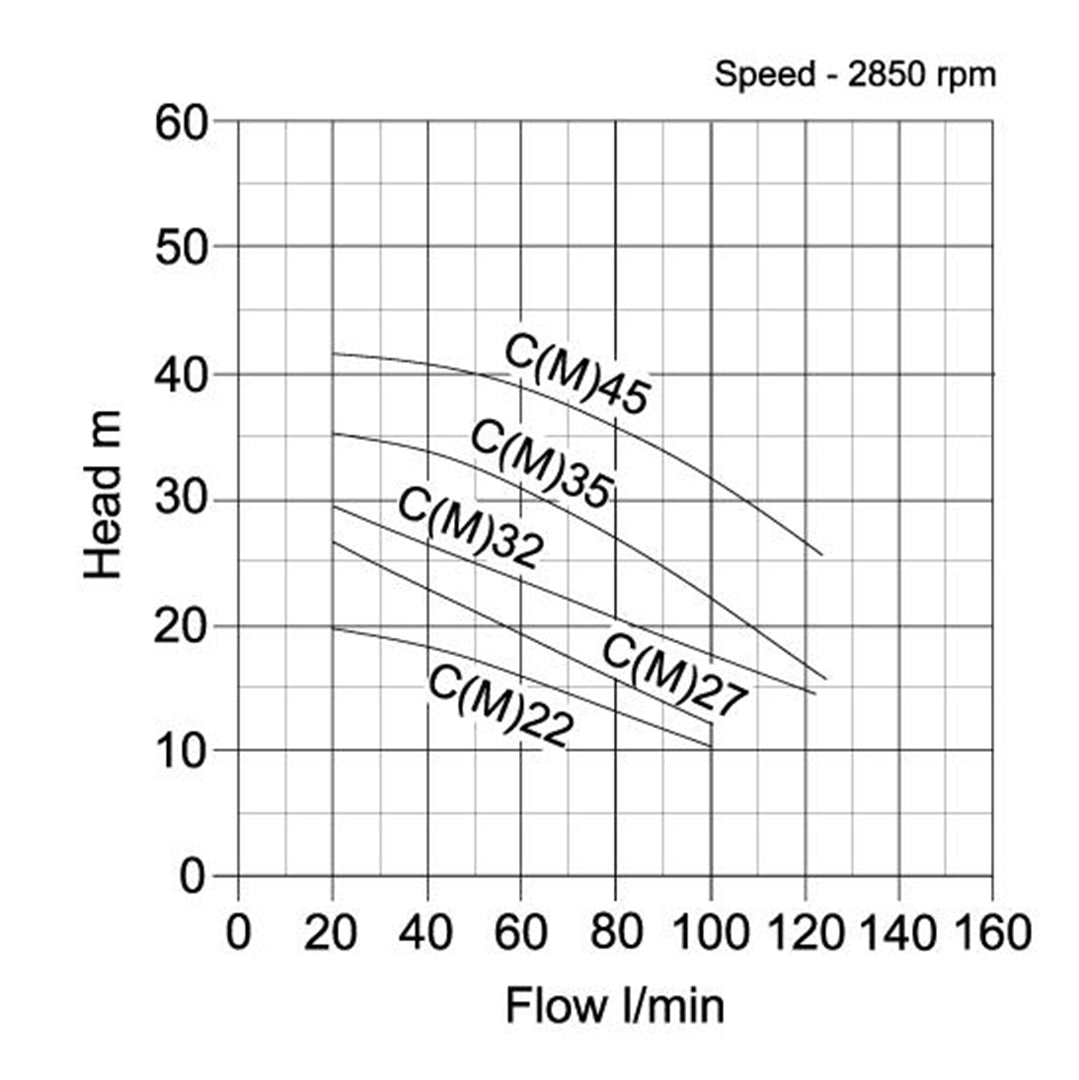

  • C(M) Single Impeller Surface Pump- pump curve graph 1

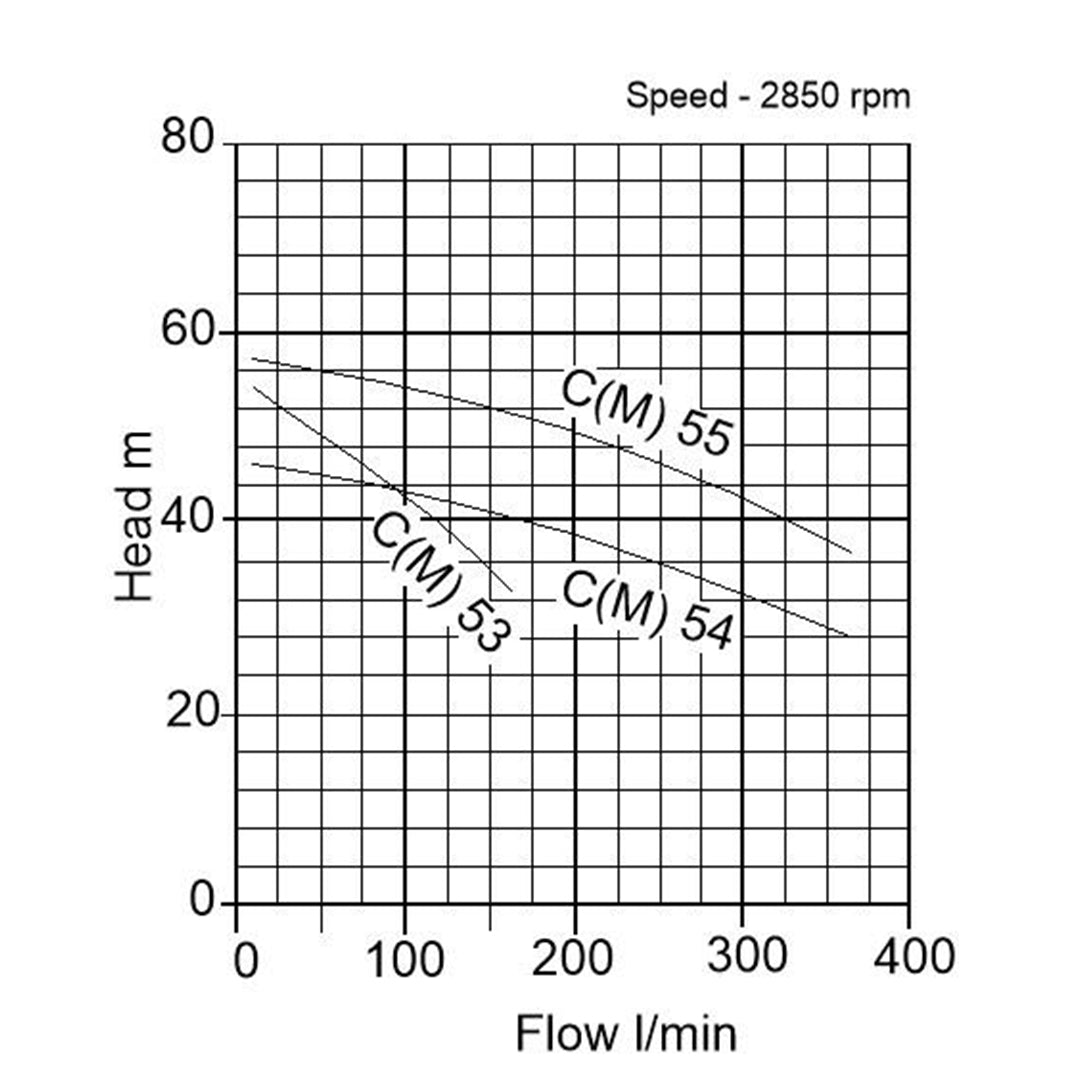

  • C(M) Single Impeller Surface Pump- pump curve graph 2
1 3
£170.00 GBP
£170.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue C(M) Single Impeller Surface Pump
  • C(M) Single Impeller Surface Pump- pump curve graph 1
  • C(M) Single Impeller Surface Pump- pump curve graph 2
PERFORMANCE CURVE
SPECIFICATIONS

CM22

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1034CM221"0.37230100201"1642602057.5

C22

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1275C221"0.37400100201"1642602057.5

CM27

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1223 CM271"0.55230100271"1863002298.7

C27

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1006C271"0.55400100271"1863002298.7

CM32

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1065CM321"0.75230125291"18630022911.1

C32

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1263C321"0.75400125291"18630022911.1

CM35

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1261CM351"1.1230125351.25"22435530521.8

C35

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1188C351"1.1400125351.25"22435530521.8

CM45

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1189CM451"1.5230125421.25"22435530522.4

C45

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1048C451"1.5400125421.25"22435530522.4

CM53

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1096CM53 1"2.2230140531 1/4"22441030527

C53

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1168C53 1"2.2400140531 1/4"22441030527

CM54

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1032CM54 1 1.4"3230360462"25648532340

C54

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1144C541 1/4"3400360462"25648532340

CM55

Item codeModelOutlet (mm)kWVolt (V)Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1025CM551 1/4"4230360562"25647532342

C55

Item codeModelOutlet (mm)kW

Volt (V)

Flow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1163C551 1/4"4400360562"25647532342

model

w X l X h (mm)

C(M)22

164x260x205

C(M)27

186x300x229

C(M)32

186x300x229

C(M)35

222x365x305

C(M)45

222x365x305

C(M)53

224x410x305

C(M)54

256x485x323

C(M)55

256x475x323
